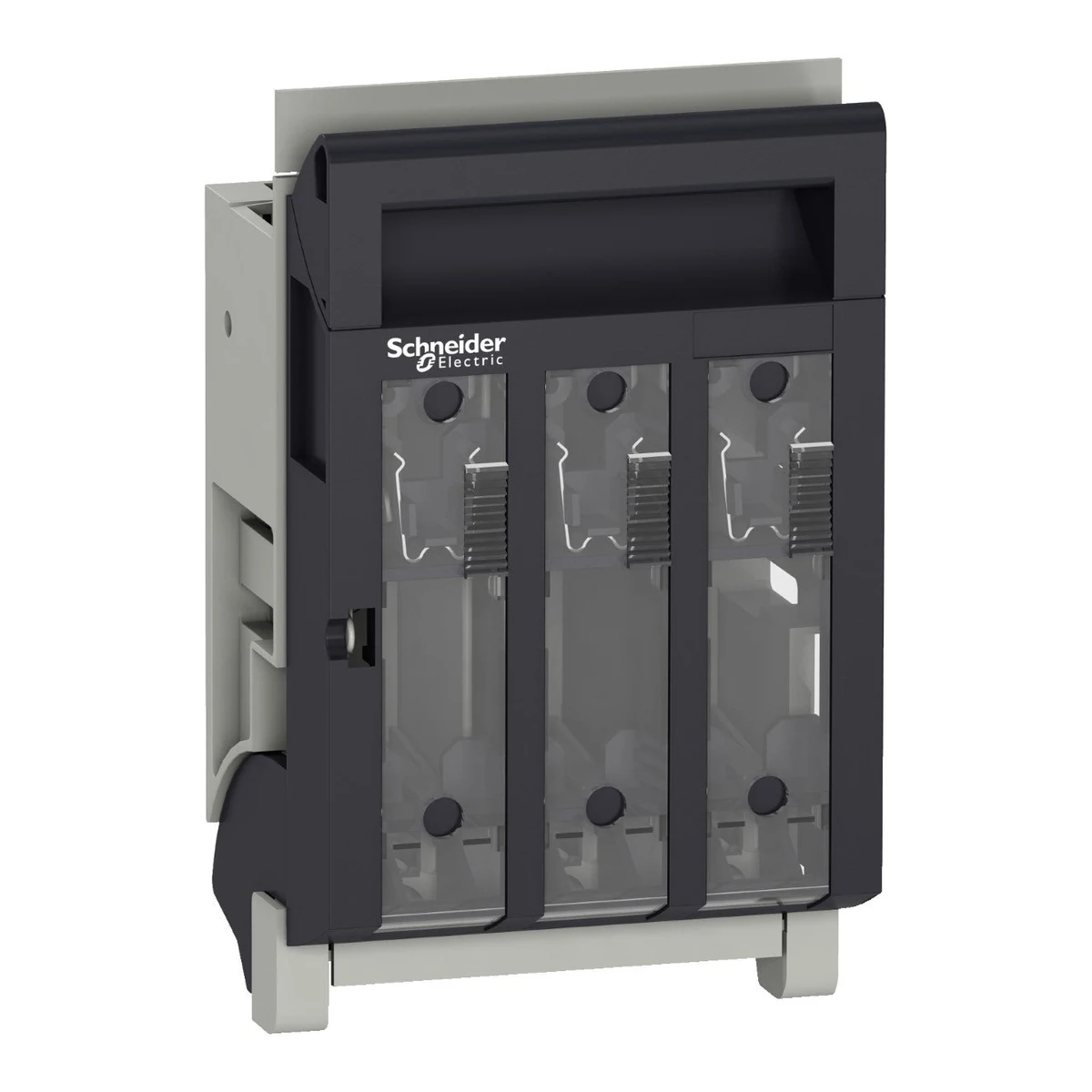

Schneider Electric LV480800 ISFT100 Fused Switch Fixed 1.5 - 50 mm

• Brand: Schneider Electric
• SKU: LV480800
• MPN: LV480800
• Price: 6271.65 TRY + VAT · incl. VAT 7525.98 TRY
• Availability: Made to order
• Horizontal Type Load Break Switches
• Schneider Electric Horizontal Type Load Break Switches
• Selection guide: Horizontal Type Load Break Switches Selection Guide: Technical Criteria and Engineering Practice

Schneider Electric LV480800 ISFT100 Fused Switch Fixed 1.5 - 50 mm. Technical specifications of this model: [Icw] Rated Short-Time Withstand Current: 3 kA for 1 s Electric Shock Protection Class: Class II front face Storage Environmental Conditions: -50-85 °C IK Protection Rating: IK07 conforms to EN 50102 Maximum power dissipation per pole: 11 W [Uimp] Rated Impulse Withstand Voltage: 6 kV Nominal Operating Ambient Temperature: -20-70 °C [Ie] Rated Operational Current: AC-21B: 100 A at 220/240 V AC 50/60 Hz & AC-21B: 100 A at 380/415 V AC 50/60 Hz & AC-21B: 100 A at 440/480 V AC 50/60 Hz & AC-21B: 100 A at 500 V AC 50/60 Hz & AC-21B: 100 A at 660/690 V AC 50/60 Hz & AC-22B: 100 A at 220/240 V AC 50/60 Hz & AC-22B: 100 A at 380/415 V AC 50/60 Hz & DC-21B: 100 A at 220 V DC (3 poles in series) & DC-21B: 100 A at 440 V DC (3 poles in series) [Ithe] Conventional Enclosed Thermal Current: 100 A at 40 °C, power dissipation per fuse: 9 W Nominal Making and Breaking Capacity: 4.4 kA at 690 V Depth: 71 mm Contact Operation: Single break Height: 141 mm Electrical Endurance: AC-21B: 300 cycles 500 V AC 50/60 Hz & AC-22B: 300 cycles 415 V AC 50/60 Hz Device Application: equipment protection, monitoring and control, distribution Product Weight: 0.46 kg Tightening Torque: terminal for 3 N.m Number of Fuse Carriers: 3 Visible Break: yes Locking Provision: lead seal Breaking Capacity: 80 kA at 415 V (AC) & 80 kA at 500 V (AC) & 25 kA at 690 V (AC) Series: FuPacT Product Type: cable gland Isolation Suitability: yes, compliant with EN/IEC 60947-3 Pollution degree: 3 conforming to IEC 60947 Product name: Fupact ISFT Nominal Duty: continuous Fuse size: NH000 Pole arrangement: 3P Width: 89 mm Rated Operational Voltage: 690 V AC 50/60 Hz & 440 V DC & 800 V AC 50/60 Hz AC-20 & 800 V DC DC-20 [Ui] Rated Insulation Voltage: 690 V AC 50/60 Hz & 690 V DC Control type: fuse carrier lever IP Rating: IP3x front face: conforming to IEC 60529 Mechanical Endurance: 2000 cycles Fuse Type: DIN
