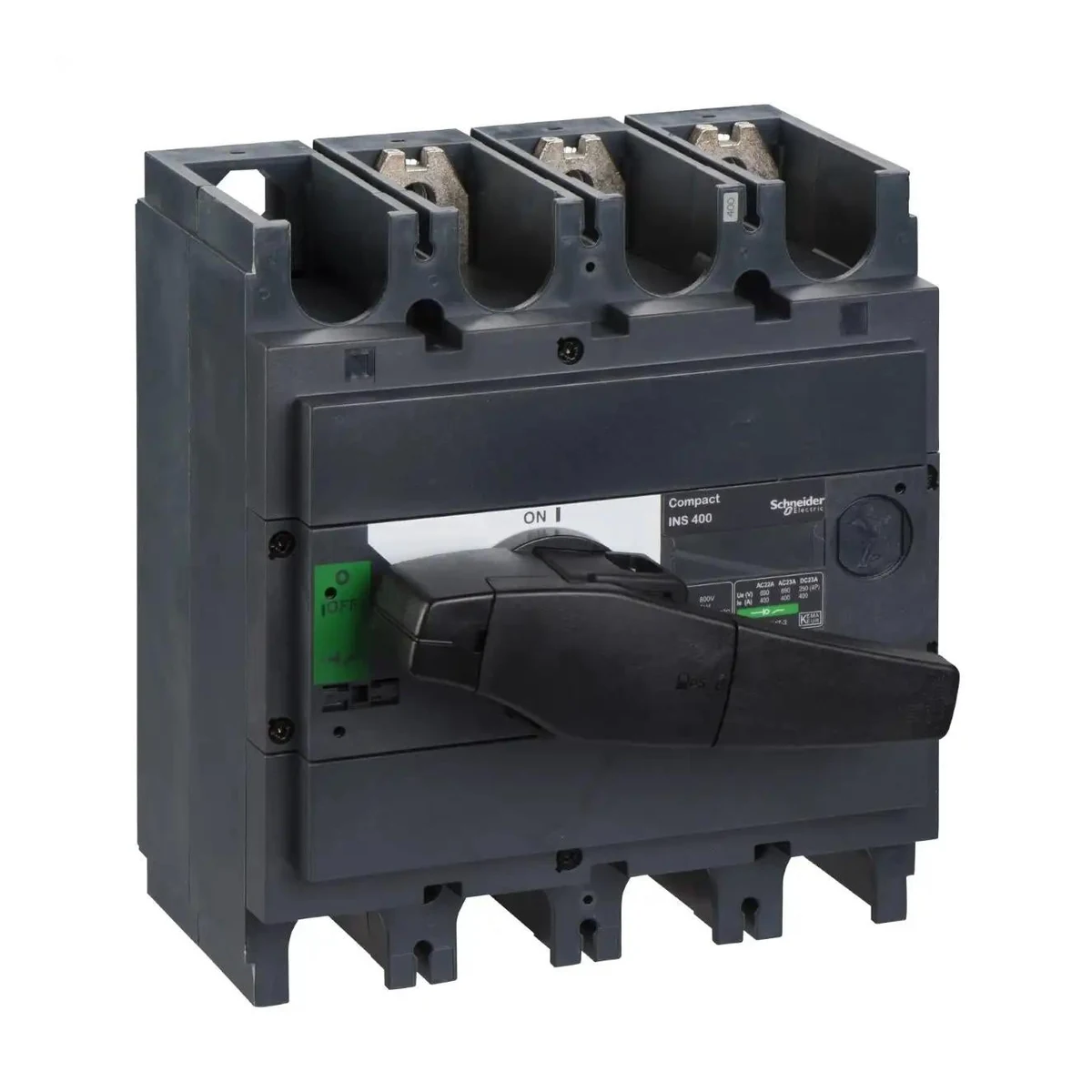

Schneider Electric 31110 ComPacT, INS400

• Brand: Schneider Electric
• SKU: 31110
• MPN: 31110
• Price: 29745.84 TRY + VAT · incl. VAT 35695.01 TRY
• Availability: In stock
• Horizontal Type Load Break Switches
• Schneider Electric Horizontal Type Load Break Switches
• Selection guide: Horizontal Type Load Break Switches Selection Guide: Technical Criteria and Engineering Practice
• Schneider Electric 31110 Teknik Veri Föyü (PDF)

Schneider Electric 31110 ComPacT, INS400. Technical specifications of this model: Handle color: black Connection Range: 45 mm Width: 185 mm [Uimp] Rated Impulse Withstand Voltage: 8 kV & 8 kV, compliant with IEC 60947-3 Series: Compact Maximum power: AC-23: 110 kW at 220/240 V AC 50/60 Hz & AC-23: 110 kW at 230 V AC 50/60 Hz (NEMA) & AC-23: 200 kW at 380/415 V AC 50/60 Hz & AC-23: 220 kW at 440 V AC 50/60 Hz & AC-23: 220 kW at 480 V AC 50/60 Hz (NEMA) & AC-23: 250 kW at 500/525 V AC 50/60 Hz & AC-23: 400 kW at 660/690 V AC 50/60 Hz Nominal Duty: continuous [Ui] Rated Insulation Voltage: 750 V AC 50/60 Hz [Icw] Rated Short-Time Withstand Current: 11.5 kA for 3 s, compliant with IEC 60947-3 & 20 kA for 1 s, compliant with IEC 60947-3 & 4 kA for 30 s, compliant with IEC 60947-3 & 4.9 kA for 20 s, compliant with IEC 60947-3 Rated Operational Voltage: 125 V DC & 690 V AC 50/60 Hz [Icm] Rated Short-Circuit Making Capacity: 330 kA with line-side protective circuit breaker at 690 V AC 50/60 Hz & 50 kA with load break switch only at 690 V AC 50/60 Hz [Ie] Rated Operational Current: AC-22A: 400 A AC 50/60 Hz 220/240 V & AC-22A: 400 A AC 50/60 Hz 380/415 V & AC-22A: 400 A AC 50/60 Hz 440/480 V & AC-22A: 400 A AC 50/60 Hz 480 V NEMA & AC-22A: 400 A AC 50/60 Hz 500/525 V & AC-22A: 400 A AC 50/60 Hz 660/690 V & AC-23A: 400 A AC 50/60 Hz 220/240 V & AC-23A: 400 A AC 50/60 Hz 380/415 V & AC-23A: 400 A AC 50/60 Hz 440/480 V & AC-23A: 400 A AC 50/60 Hz 480 V NEMA & AC-23A: 400 A AC 50/60 Hz 500/525 V & AC-23A: 400 A AC 50/60 Hz 660/690 V & DC-22A: 400 A DC 125 V 2 poles in series & DC-23A: 400 A DC 125 V 2 poles in series Mains Frequency: 50/60 Hz Mounting Support: plate, rail Storage Environmental Conditions: -50-85 °C Product name: ComPacT INS Downward Connection: front [Ith] Conventional Free-Air Thermal Current: 400 A at 60 °C Nominal Operating Ambient Temperature: -25-70 °C Product Type: INS320...630 Pole arrangement: 3P Mechanical Endurance: 10000 cycles Mains Type: AC,DC IK Protection Rating: IK07 conforming to EN 50102 Visible Break: none Mounting Type: Fixed Pollution degree: 3 Product certificates: CCC, KEMA-KEUR IP Rating: IP40 conforming to IEC 60529 Product Weight: 4.6 kg Electrical Endurance: AC-22A: 1500 cycles 440 V AC 50/60 Hz & AC-22A: 1500 cycles 500 V AC 50/60 Hz & AC-22A: 1500 cycles 690 V AC 50/60 Hz & AC-23A: 1500 cycles 440 V AC 50/60 Hz & AC-23A: 1500 cycles 500 V AC 50/60 Hz & AC-23A: 1500 cycles 690 V AC 50/60 Hz & DC-23A: 1000 cycles 125 V DC, 2 poles in series Height: 205 mm Depth: 130 mm Isolation Suitability: yes Control type: direct front roller lever Top Connection: front
