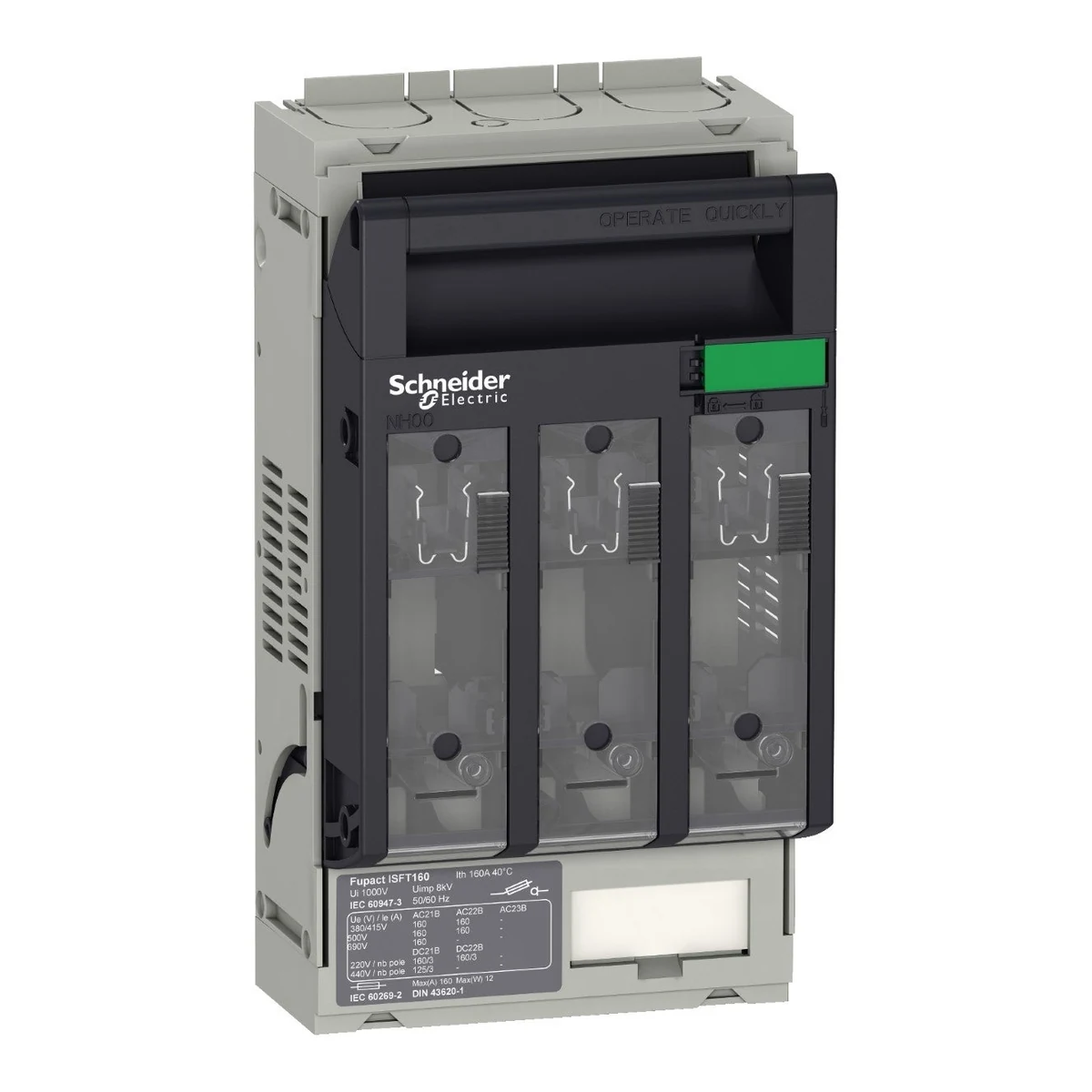

Schneider Electric LV480802 ISFT160 Fused Switch Fixed 2.5 - 95 mm

• Brand: Schneider Electric
• SKU: LV480802
• MPN: LV480802
• Price: 6705.32 TRY + VAT · incl. VAT 8046.38 TRY
• Availability: Made to order
• Horizontal Type Load Break Switches
• Schneider Electric Horizontal Type Load Break Switches
• Selection guide: Horizontal Type Load Break Switches Selection Guide: Technical Criteria and Engineering Practice

Schneider Electric LV480802 ISFT160 Fused Switch Fixed 2.5 - 95 mm. Technical specifications of this model: [Ie] Rated Operational Current: AC-21B: 160 A at 220/240 V AC 50/60 Hz & AC-21B: 160 A at 380/415 V AC 50/60 Hz & AC-21B: 160 A at 440/480 V AC 50/60 Hz & AC-21B: 160 A at 500 V AC 50/60 Hz & AC-21B: 160 A at 660/690 V AC 50/60 Hz & AC-22B: 160 A at 220/240 V AC 50/60 Hz & AC-22B: 160 A at 380/415 V AC 50/60 Hz & AC-22B: 160 A at 440/480 V AC 50/60 Hz & AC-22B: 160 A at 500 V AC 50/60 Hz & DC-21B: 160 A at 220 V DC (3 poles in series) & DC-21B: 125 A at 440 V DC (3 poles in series) & DC-22B: 160 A at 220 V DC (3 poles in series) Mechanical Endurance: 1600 cycles Contact Operation: Single break [Uimp] Rated Impulse Withstand Voltage: 8 kV Nominal Making and Breaking Capacity: 7.65 kA at 690 V Product Type: cable gland Nominal Operating Ambient Temperature: -20-70 °C Maximum power dissipation per pole: 15 W Width: 106 mm Breaking Capacity: 80 kA at 415 V (AC) & 80 kA at 500 V (AC) & 25 kA at 690 V (AC) Product Weight: 0.6 kg [Icw] Rated Short-Time Withstand Current: 5 kA for 1 s Fuse size: NH00 Fuse Type: DIN Signaling Function: separate fuse monitor Pollution degree: conforming to 3 IEC 60947 Storage Environmental Conditions: -50-85 °C Apparent Breaking: yes Depth: 80 mm IP Rating: IP3x front face: conforming to IEC 60529 Device Application: equipment protection, monitoring and control, distribution [Ui] Rated Insulation Voltage: 1000 V AC 50/60 Hz & 1000 V DC [Ithe] Conventional Enclosed Thermal Current: 160 A at 40 °C, power dissipation per fuse: 12 W Series: FuPacT Number of Fuse Carriers: 3 Tightening Torque: terminal for 12 N.m Control type: fuse carrier lever Product name: Fupact ISFT Locking Provision: lead seal IK Protection Rating: IK07 conforms to EN 50102 Nominal Duty: continuous Pole arrangement: 3P Electrical Endurance: AC-21B: 200 cycles 690 V AC 50/60 Hz & AC-22B: 200 cycles 500 V AC 50/60 Hz & AC-23B: 200 cycles 415 V AC 50/60 Hz Height: 206 mm Electric Shock Protection Class: Class II front face Isolation Suitability: yes, compliant with EN/IEC 60947-3 Rated Operational Voltage: 690 V AC 50/60 Hz & 440 V DC & 800 V AC 50/60 Hz AC-20 & 800 V DC DC-20
