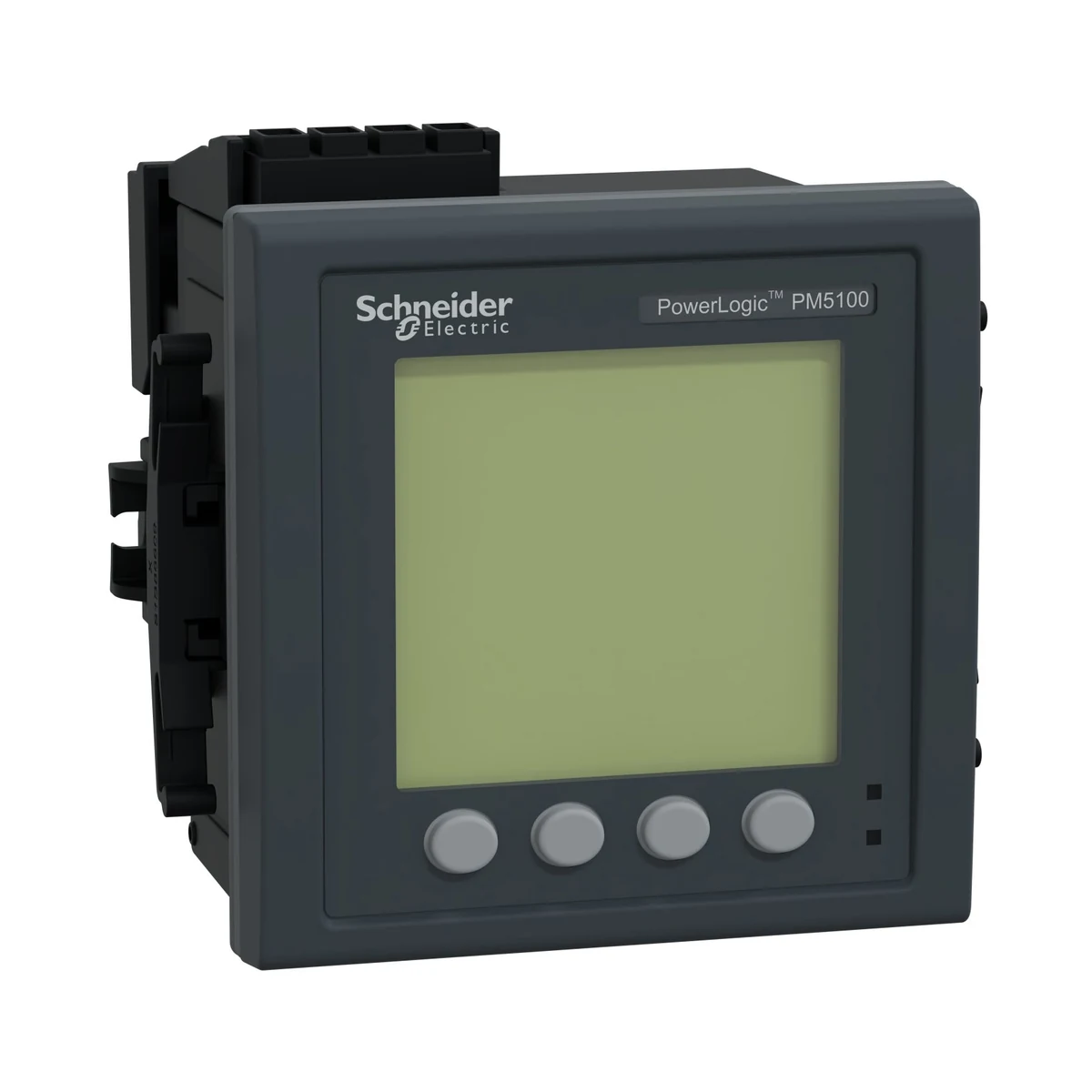

Schneider Electric METSEPM5100 PM5100, 0.5S, 15th harmonic, 1DO
- Brand: Schneider Electric
- SKU: METSEPM5100
- MPN: METSEPM5100
- Price: 22795.88 TRY + VAT · incl. VAT 27355.06 TRY
- Availability: In stock
- Panel-Mount Power Network Analyzers
- Schneider Electric Panel-Mount Power Network Analyzers
- Selection guide: Panel-Mount Power Network Analyzers Selection Guide: Technical Criteria and Engineering Practice
- Schneider Electric METSEPM5100 Teknik Veri Föyü (PDF)
Schneider Electric METSEPM5100 PM5100, 0.5S, 15th harmonic, 1DO. Technical specifications of this model: Number of Digital Outputs: 1
| Number of Digital Outputs | 1 |
|---|---|
| Series | PowerLogic |
| Product Type | Güç ölçer |
| Device Application | Güç izleme |
| Measurement Type | Akım; Gerilim; Frekans; Güç faktörü; Enerji; Aktif ve reaktif güç |
| Rated Control Supply Voltage (Us) | 90…450 V AC 45…65 Hz; 100…300 V DC |
| Mains Frequency | 60 Hz; 50 Hz |
| Rated Current (Ir) | 5 A; 1 A |
| Network Configuration | 3P + N; 1P + N; 3P |
| Power Consumption (VA) | 11 VA @ 415 V |
| Local Signalling | 80 ms 120 V AC tipik; 100 ms 230 V AC tipik; 100 ms 415 V AC tipik; 50 ms 125 V DC tipik |
| Display Type | Tek renkli grafik LCD |
| Display Resolution | 128 x 128 piksel |
| Sampling Rate | Döngü başına 64 örnek |
| Measuring Current | 50–8500 mA |
| Analog Input Type | Gerilim (impedance 5 MOhm); Akım (impedance <= 0.3 mOhm) |
| Measurement Voltage | 35…760 V AC 45…65 Hz fazlar arasında; 20…400 V AC 45…65 Hz faz ve nötr arasında |
| Frequency Range | 45–65 Hz |
| Number of Inputs | 0 |
| Accuracy Class | Class 0.5S aktif enerji (IEC 62053-22) |
| Number of Outputs | 1 pulse (energy) |
| Communication Protocol | - |
| Communication Port Support | - |
| Data Logging | Anlık değerlerin minimumu/maksimumu; Saat damgası |
| Mounting Type | Sıva altı monte |
| Mounting Support | Gövde |
| Standards | EN 50470-1; IEC 62053-22:2020; UL 61010-1; IEC 62053-24; IEC 61557-12:2015; EN 50470-3; IEC 60529; IEC 62053-23:2020; IEC 62052-11:2020; IEC 62052-31:2015 |
| Certifications | CE (IEC 61010-1); CULus (UL 61010-1) |
| Width | 96 mm |
| Depth | 72 mm |
| Height | 96 mm |
| Product Weight | 380 g |
| IP Rating | IP54 ekran: (IEC 60529); IP30 arka: (IEC 60529) |
| Relative Humidity | 5…95 % @ 50 °C yoğuşmasız |
| Pollution Degree | 2 |
| Operating Ambient Temperature | -25…70 °C metre; -20…70 °C ekran; -25…-20 °C (düşük performansla) ekran |
| Storage Temperature | -40…85 °C |
| Operating Altitude | 2000 m CAT III |
