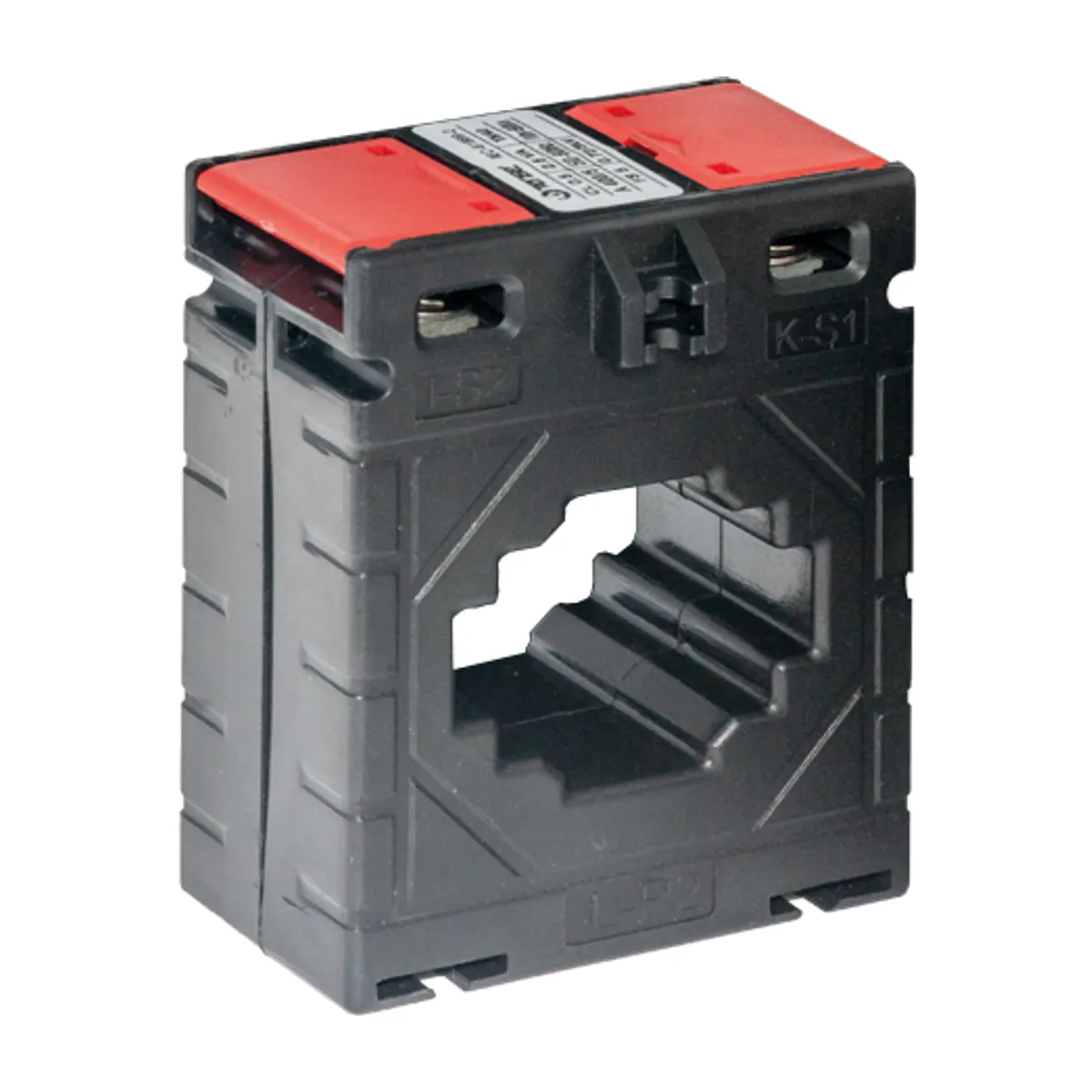

Tense AT-125 Low Voltage Current Transformer, 125/5, 30 x 10 mm

Tense AT-125 Low Voltage Current Transformer, 125/5, 30 x 10 mm

Tense AT-125, low voltage current transformer. Busbar Size: 30 x 10 mm; Transformation Ratio: 125/5; Accuracy Class: 0.5; Output Power: 2.5 VA; Type: Unsealed, with hole. Current transformers are designed to scale the primary circuit current down within the transformation ratio and pass it to the secondary circuit components, and to isolate the connected measuring and protection devices from the high-voltage system. Key Features: Primary Current: 125A.

Busbar Size30 × 10 mm
Transformation Ratio125/5
Accuracy Class0,5
Output Power2.5 VA
TypeMühürsüz, delikli
Primary Current125 A
Secondary Current5 A
Key FeaturesPrimer Akım : 125A
