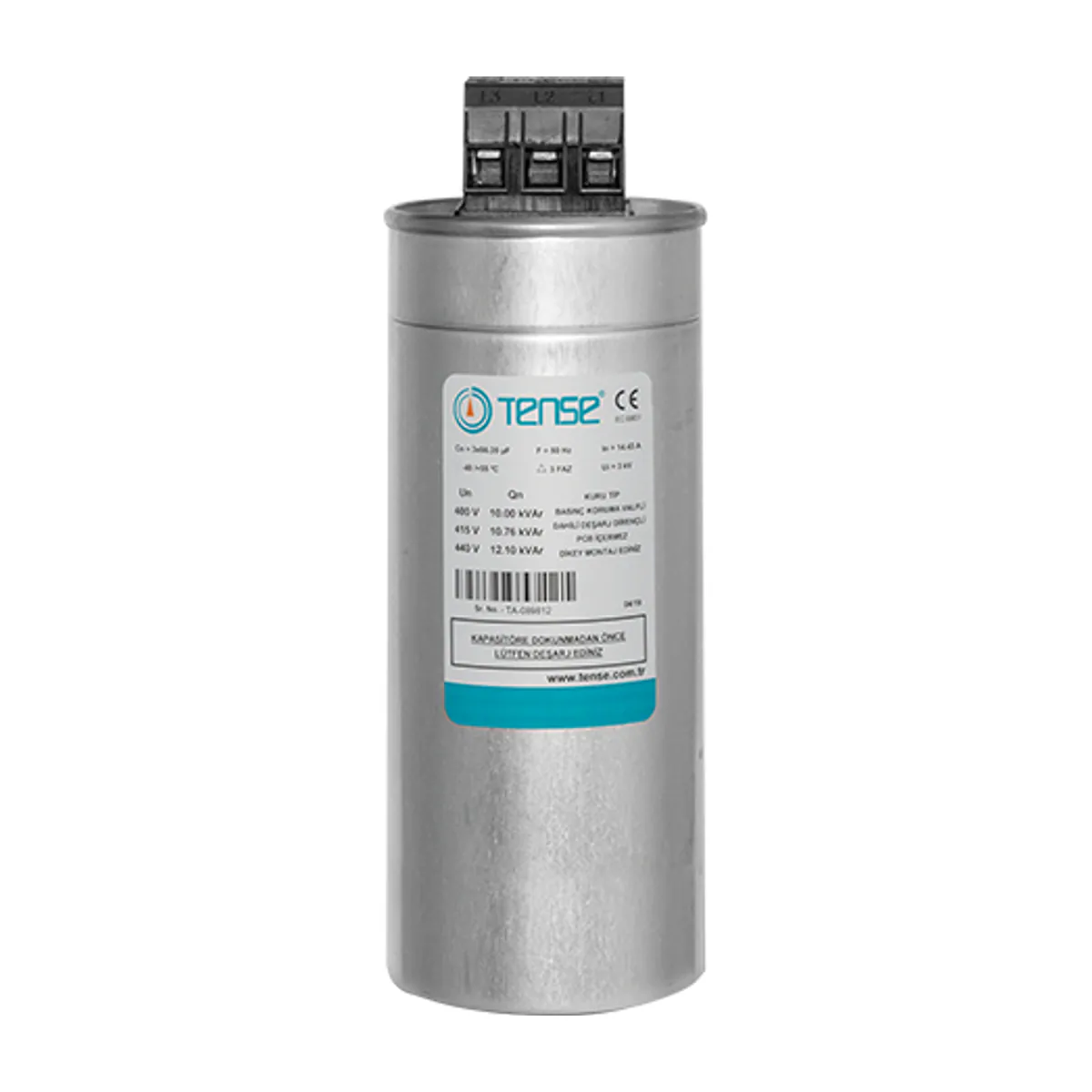

Tense TTK-15 Three-Phase Low-Voltage Power Capacitor, 15 kVAr, 400 VAC
- Brand: Tense
- SKU: TTK-15
- MPN: TTK-15
- Price: 1913.67 TRY + VAT · incl. VAT 2296.40 TRY
- Availability: In stock
- Three-Phase Power Capacitors
- Tense Three-Phase Power Capacitors
- Selection guide: Three-Phase Power Factor Correction Capacitors Selection Guide
Tense TTK-15, three-phase low-voltage power capacitor. Rated Power: 15 kVAr; Capacitive Power (440 V): 18.15 kVAr; Rated Voltage: 400 VAC; Capacitive Power (400 V): 15 kVAr; Capacitive Power (415 V): 16.15 kVAr. LV Power Capacitors are designed for power factor correction in low-voltage systems. The capacitors have a cylindrical aluminum case. Thanks to the overpressure-sensitive disconnect system, capacitor bursting is prevented. Key Features: Power: 15 kVAr (Three-Phase).
| Rated Power | 15 kVAr |
|---|---|
| Capacitive Power (440 V) | 18.15 kVAr |
| Rated Voltage | 400 V AC |
| Capacitive Power (400 V) | 15 kVAr |
| Capacitive Power (415 V) | 16.15 kVAr |
| Rated Current | 21.65 A |
| Dimensions (Diameter × Height) | 90 × 243 mm |
| Gram | 1.72 kg |
| Number of Phases | 3-Phase |
| Body Type | Silindir |
| Standards | IEC 60831-1/2 |
| Overvoltage Withstand | Un + 10%, 24 saatte bir 8 saat |
| Overcurrent Withstand | 1,5 x In |
| Housing Type | Silindirik alüminyum kasa |
| Service Life | >130.000 saat (ortam sıcaklığı +55°C’ye kadar) |
| Ambient Temperature | – 40°C – +55°C |
| Cooling Type | Doğal hava soğutmalı. Kasa sıcaklığı, kasanın tepesinde en fazla 60°C olmalıdır |
| Dielectric System | MKP metalize edilmiş polipropilen film, kendini onarma özellikli |
| Safety Features | Aşırı basınca duyarlı 3 faz ayırıcı |
| Mounting Style | Dikey |
| Key Features | Güç : 15 kVAr (Trifaze) |
