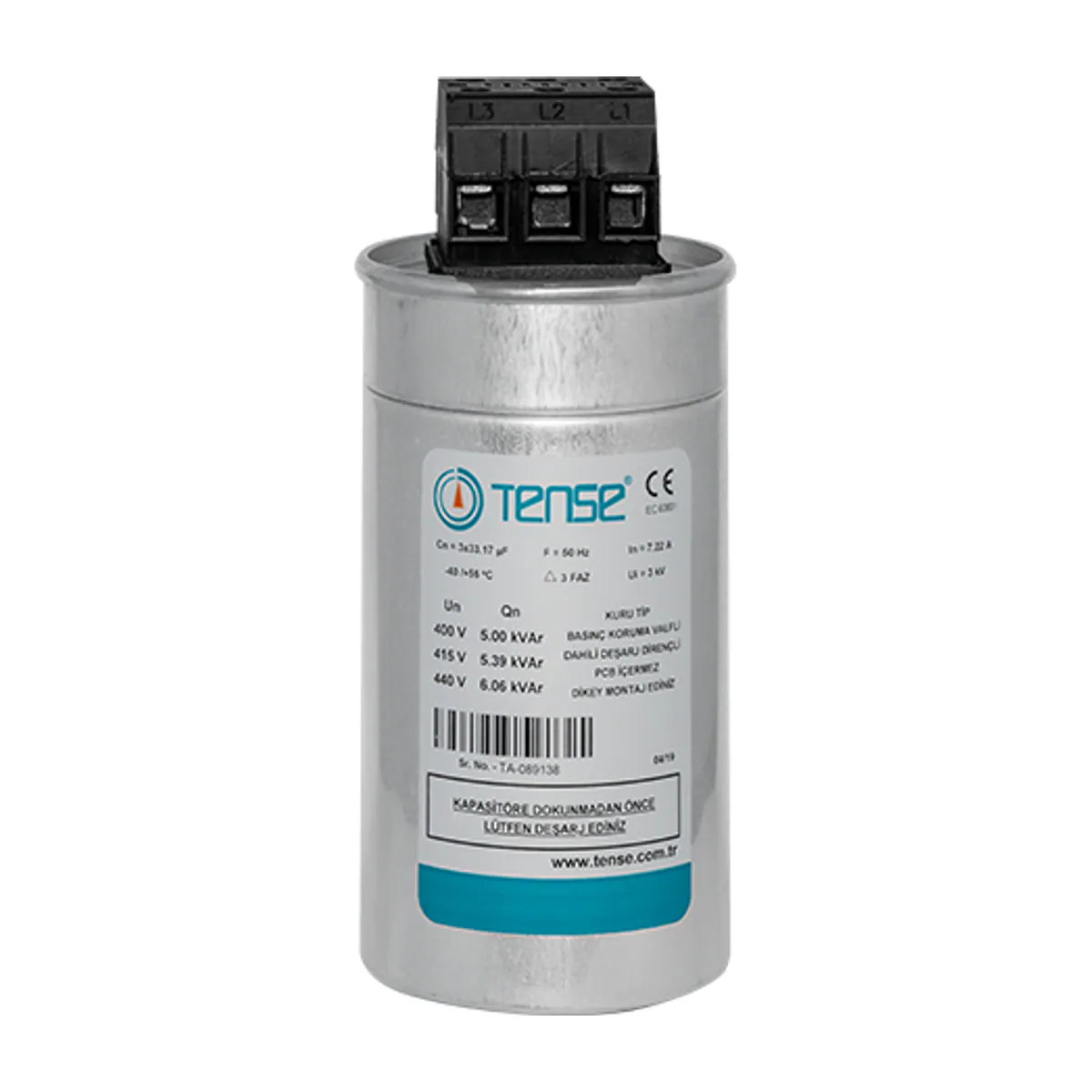

Tense TTK-5 Three-Phase Low-Voltage Power Capacitor, 5 kVAr, 400 VAC
- Brand: Tense
- SKU: TTK-5
- MPN: TTK-5
- Price: 980.17 TRY + VAT · incl. VAT 1176.20 TRY
- Availability: In stock
- Three-Phase Power Capacitors
- Tense Three-Phase Power Capacitors
- Selection guide: Three-Phase Power Factor Correction Capacitors Selection Guide
Tense TTK-5, three-phase low-voltage power capacitor. Rated Power: 5 kVAr; Capacitive Power (440 V): 6.05 kVAr; Rated Voltage: 400 VAC; Capacitive Power (400 V): 5 kVAr; Capacitive Power (415 V): 5.38 kVAr. LV Power Capacitors are designed for power factor correction in low-voltage systems. The capacitors have a cylindrical aluminum case. Thanks to the overpressure-sensitive disconnect system, capacitor bursting is prevented. Key Features: Power: 5 kVAr (Three-Phase).
| Rated Power | 5 kVAr |
|---|---|
| Capacitive Power (440 V) | 6.05 kVAr |
| Rated Voltage | 400 V AC |
| Capacitive Power (400 V) | 5 kVAr |
| Capacitive Power (415 V) | 5.38 kVAr |
| Rated Current | 7.22 A |
| Dimensions (Diameter × Height) | 75 × 196 mm |
| Gram | 1 kg |
| Number of Phases | 3-Phase |
| Body Type | Silindir |
| Standards | IEC 60831-1/2 |
| Overvoltage Withstand | Un + 10%, 24 saatte bir 8 saat |
| Overcurrent Withstand | 1,5 x In |
| Housing Type | Silindirik alüminyum kasa |
| Service Life | >130.000 saat (ortam sıcaklığı +55°C’ye kadar) |
| Ambient Temperature | – 40°C – +55°C |
| Cooling Type | Doğal hava soğutmalı. Kasa sıcaklığı, kasanın tepesinde en fazla 60°C olmalıdır |
| Dielectric System | MKP metalize edilmiş polipropilen film, kendini onarma özellikli |
| Safety Features | Aşırı basınca duyarlı 3 faz ayırıcı |
| Mounting Style | Dikey |
| Key Features | Güç : 5 kVAr (Trifaze) |
