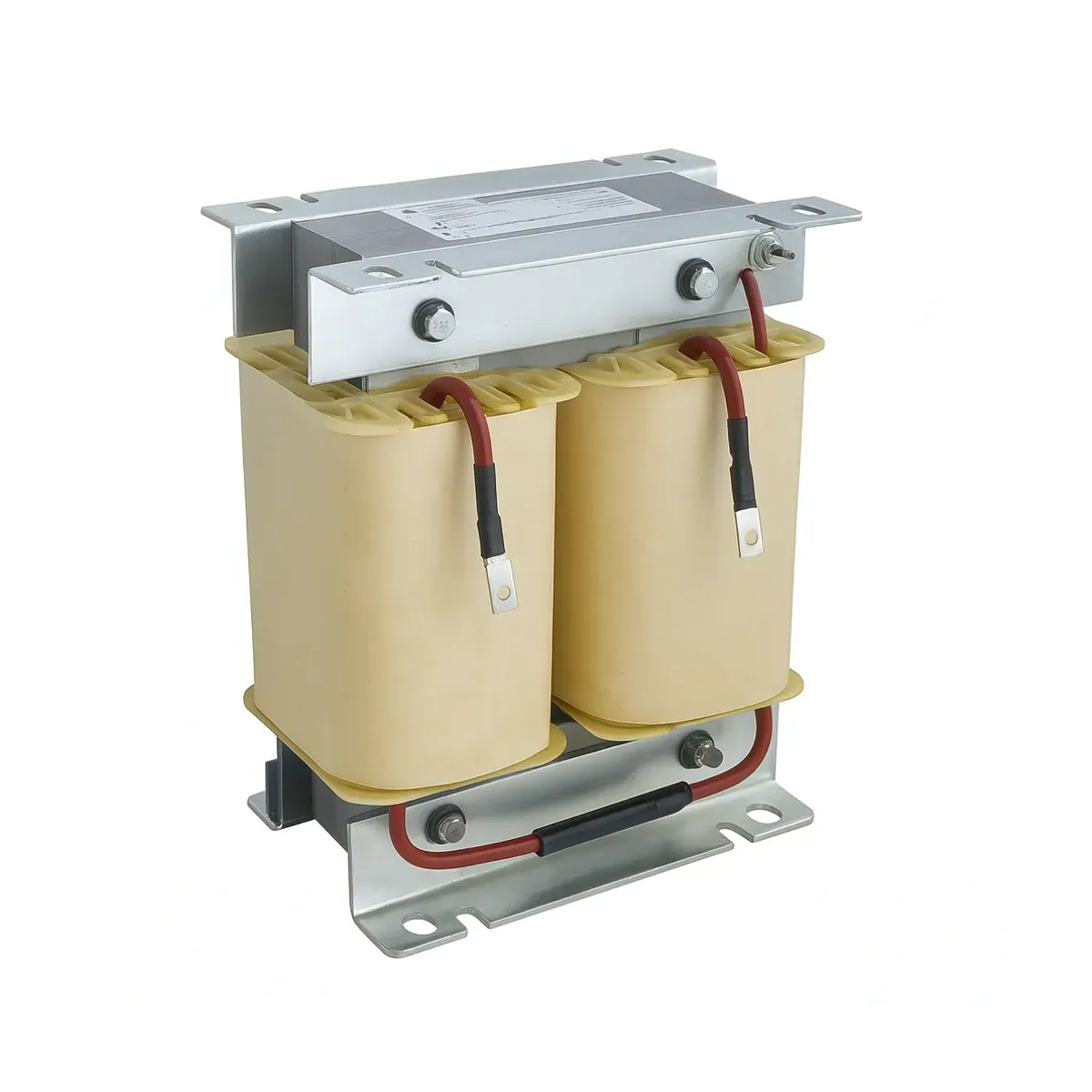

Tibcon 10 kVAr Single-Phase Shunt Reactor - TBSR5412
- Brand: Tibcon
- SKU: ŞM-2310
- MPN: TBSR5412
- Price: 12343.98 TRY + VAT · incl. VAT 14812.78 TRY
- Availability: In stock
- Single-Phase Shunt Reactors
- Tibcon Single-Phase Shunt Reactors
- Selection guide: Single-Phase Shunt Reactors Selection Guide: Technical Criteria & Application Standards
Tibcon 10 kVAr Single-Phase Shunt Reactor - TBSR5412. Single-Phase Shunt Reactors are used to balance the capacitive effect of long cables, UPS systems and unloaded capacitors. Technical data: Voltage 230V, Power 10 kVAr. Stock code: ŞM-2310.
| Voltage | 230 V |
|---|---|
| Power | 10 kVAr |
| Current | 43.4 A |
| Inductance | 16,8 mH |
| Thermal Protection | 120C (NC kontak) |
| Connection Type | Pabuç |
| Product Net Weight | 30 kg |
| Dimensions | 250 x 310 x 210 mm (A x B x C, TİP2 çizimi) |
| Standards | EN 61558-1, EN 61558 2-20, EN 60289 ve EN60076-6 |
| Frequency | 50 Hz (60 Hz Opsiyonel) |
| Inductance Tolerance | %3 |
| Magnetic Circuit | Yüksek manyetik geçirkenlikli 0,35 mm silisli laminasyon |
| IP Rating | IP00 |
| Relative Humidity | %95 Yoğunlaşmayan (DIN 40040) |
| Maximum Operating Altitude Permissible | 0–2000 m |
| Operating Temperature | -10 °C … +40 °C |
