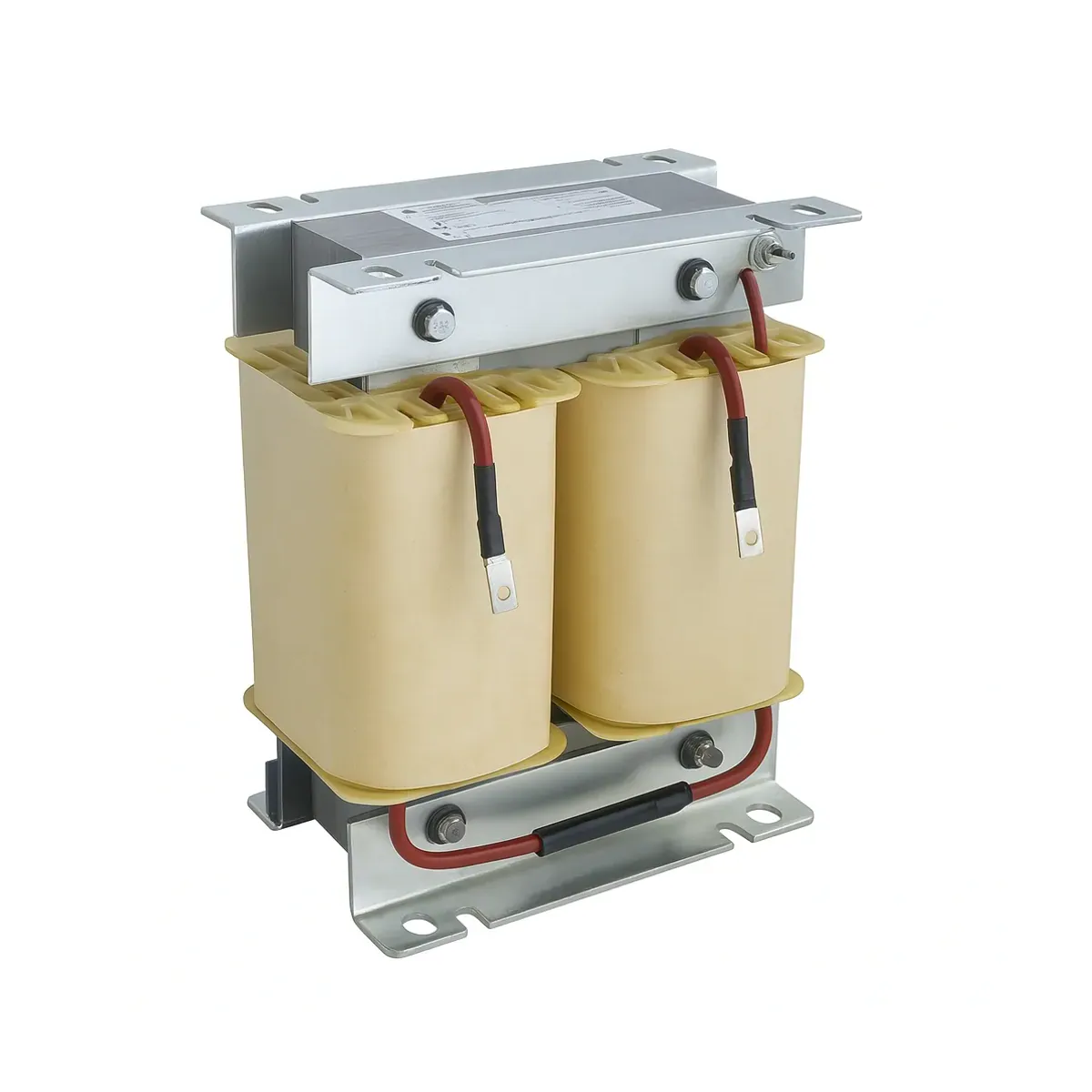

Tibcon 20 kVAr Single-Phase Shunt Reactor - TBSR5415
- Brand: Tibcon
- SKU: ŞM-2320
- MPN: TBSR5415
- Price: 24906.45 TRY + VAT · incl. VAT 29887.74 TRY
- Availability: In stock
- Single-Phase Shunt Reactors
- Tibcon Single-Phase Shunt Reactors
- Selection guide: Single-Phase Shunt Reactors Selection Guide: Technical Criteria & Application Standards
Tibcon 20 kVAr Single-Phase Shunt Reactor - TBSR5415. Single-Phase Shunt Reactors are used to balance the capacitive effect of long cables, UPS systems and unloaded capacitors. Technical data: Voltage 230V, Power 20 kVAr. Stock code: ŞM-2320.
| Voltage | 230 V |
|---|---|
| Power | 20 kVAr |
| Current | 87 A |
| Inductance | 8,4 mH |
| Thermal Protection | 120C (NC kontak) |
| Connection Type | Pabuç |
| Product Net Weight | 50 kg |
| Dimensions | 320 x 400 x 170 mm (A x B x C, TİP2 çizimi) |
| Standards | EN 61558-1, EN 61558 2-20, EN 60289 ve EN60076-6 |
| Frequency | 50 Hz (60 Hz Opsiyonel) |
| Inductance Tolerance | %3 |
| Magnetic Circuit | Yüksek manyetik geçirkenlikli 0,35 mm silisli laminasyon |
| IP Rating | IP00 |
| Relative Humidity | %95 Yoğunlaşmayan (DIN 40040) |
| Maximum Operating Altitude Permissible | 0–2000 m |
| Operating Temperature | -10 °C … +40 °C |
