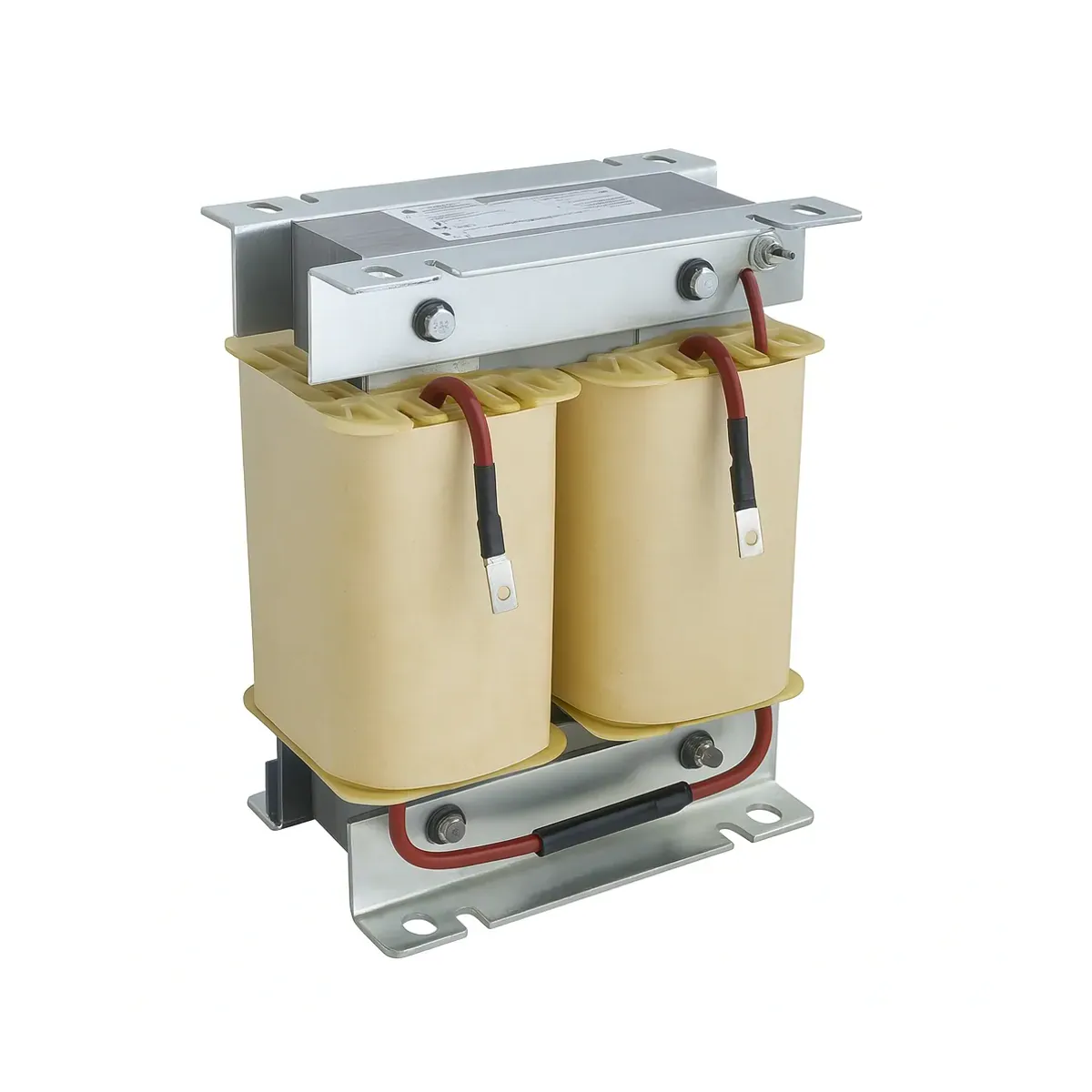

Tibcon 3 kVAr Single-Phase Shunt Reactor - TBSR5407
- Brand: Tibcon
- SKU: ŞM-233
- MPN: TBSR5407
- Price: 4915.75 TRY + VAT · incl. VAT 5898.90 TRY
- Availability: In stock
- Single-Phase Shunt Reactors
- Tibcon Single-Phase Shunt Reactors
- Selection guide: Single-Phase Shunt Reactors Selection Guide: Technical Criteria & Application Standards
Tibcon 3 kVAr Single-Phase Shunt Reactor - TBSR5407. Single-Phase Shunt Reactors are used to balance the capacitive effect of long cables, UPS systems and unloaded capacitors. Technical data: Voltage 230V, Power 3 kVAr. Stock code: ŞM-233.
| Voltage | 230 V |
|---|---|
| Power | 3 kVAr |
| Current | 13.04 A |
| Inductance | 56 mH |
| Thermal Protection | 120C (NC kontak) |
| Connection Type | Klemens |
| Product Net Weight | 17 kg |
| Dimensions | 175 x 192 x 170 mm (A x B x C, TİP1 çizimi) |
| Standards | EN 61558-1, EN 61558 2-20, EN 60289 ve EN60076-6 |
| Frequency | 50 Hz (60 Hz Opsiyonel) |
| Inductance Tolerance | %3 |
| Magnetic Circuit | Yüksek manyetik geçirkenlikli 0,35 mm silisli laminasyon |
| IP Rating | IP00 |
| Relative Humidity | %95 Yoğunlaşmayan (DIN 40040) |
| Maximum Operating Altitude Permissible | 0–2000 m |
| Operating Temperature | -10 °C … +40 °C |
