Ünal TTR 2x4 mm2 H05VV-F White Cable
- Brand: Ünal Kablo
- SKU: UNALWB0271
- Price: 7131.60 TRY + VAT · incl. VAT 8557.92 TRY
- Availability: Made to order
- TTR Cables
- Ünal Kablo TTR Cables
- Selection guide: TTR Cables Selection Guide
- Calculate cable current-carrying capacity
- Calculate voltage drop

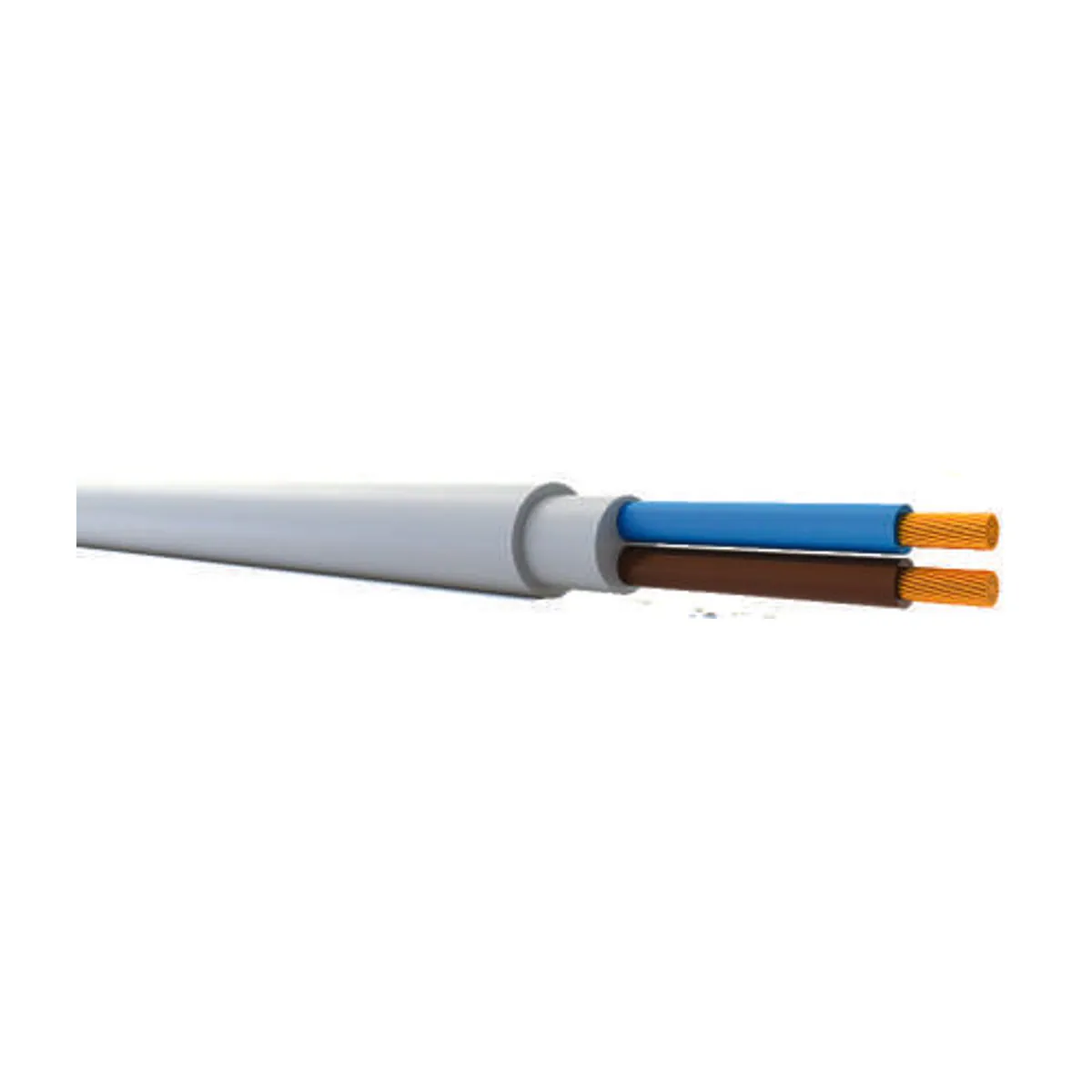

Ünal TTR 2x4 mm2 H05VV-F White Cable is a multi-core flexible connection cable. Cable family: TTR. Harmonized code: H05VV-F. Conductor material: Copper. Insulation: PVC. Core size: 2x4 mm2. Color: White. The image is the manufacturer's representative family image; select the color, number of cores and cross-section according to the written specifications of the product.
| Core Cross-Section | 2x4 mm² |
|---|---|
| Color | White |
| Conductor | Fine-stranded copper conductor |
| Insulation Material | PVC (TI2) |
| Core Colour Code | TS HD 308 S2 |
| Outer Sheath Material | PVC |
| Rated Voltage | 300/500 V |
| Test Voltage | 2 kV |
| Minimum Bending Diameter | 6 x D |
| Operating Temperature | -20 °C … +70 °C |
| Short-Circuit Temperature | 160 °C |
| Standards | TS EN 60228 (iletken direnci); TS 9760 (yalıtım direnci); VDE 0100-430 (akım taşıma kapasitesi); TS HD 308 S2 (yalıtkan, dış kılıf) |
| Flame Retardance / Fire Performance | TS EN 60332-1-2 |
| Conductor Resistance (20 °C) | Max. 4,95 Ω/km (DC) |
| Outer Diameter | Yaklaşık 11,0 mm |
| Current Carrying Capacity | 34 A |
