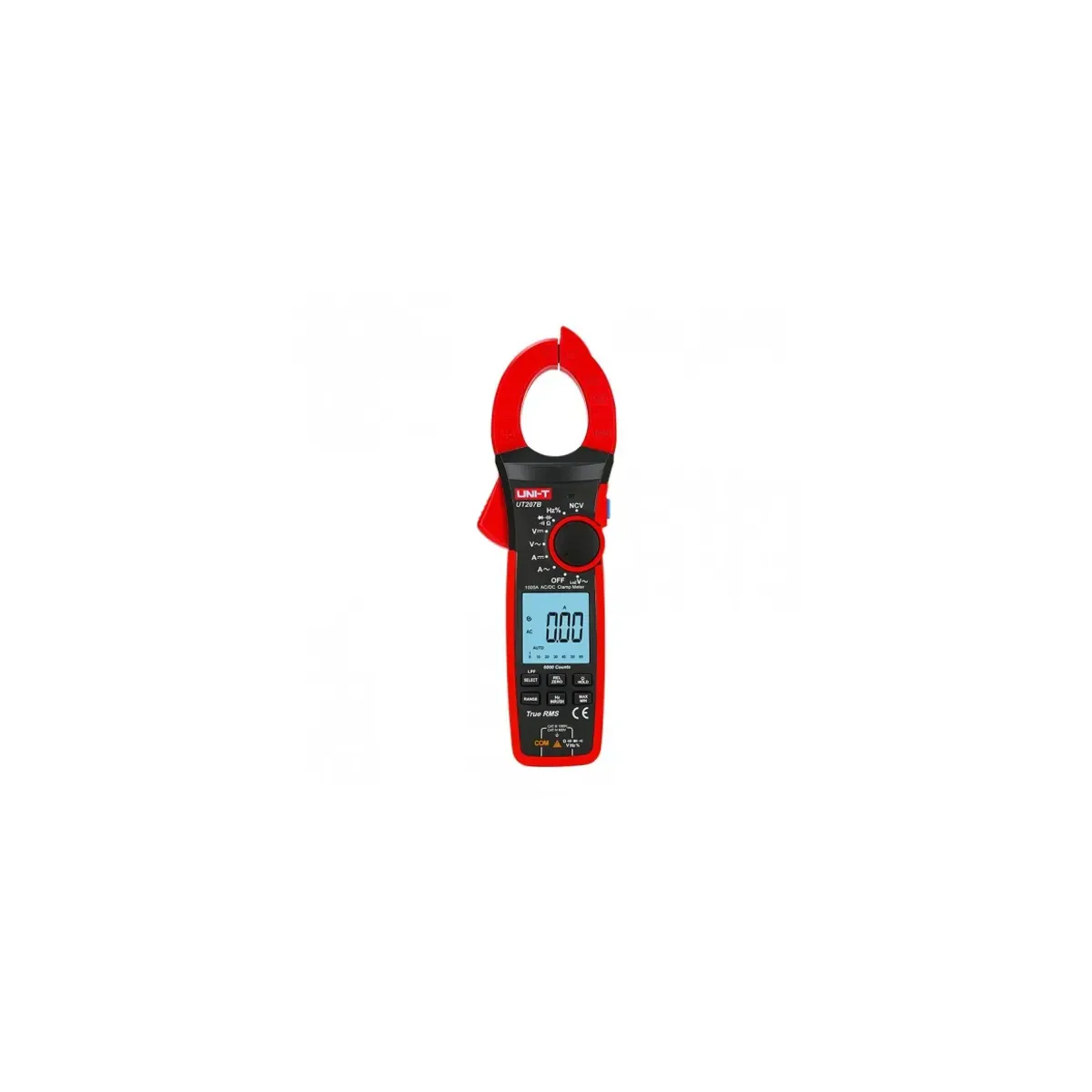

Unit UT 207B 1000A True RMS Digital Clamp Meter
- Brand: Unit
- SKU: UT207B
- MPN: UT207B
- Price: 3882.94 TRY + VAT · incl. VAT 4659.53 TRY
- Availability: In stock
- Clamp Meters
- Unit Clamp Meters
- Selection guide: Clamp Meters Selection Guide
Unit UT 207B 1000A True RMS Digital Clamp Meter, a clamp meter model from the UNI-T UT200 series. It has a 6000-count display. Measurement functions: DC voltage (1000 V), AC voltage (1000 V), DC current (1000 A), AC current (1000 A), resistance (60 MΩ), capacitance (60 mF), duty cycle (10% – 90%), inrush current (1000 A), LPF voltage (1000 V). Jaw opening 42 mm. Other features: reset. Safety category CAT III 1000 V / CAT IV 600 V. Power source: 3 × 1.5 V battery (R03). Box contents: test probes, batteries, English user manual.
| AC Current Frequency Response | 40 Hz – 400 Hz |
|---|---|
| AC Current Measurement | 1000 A · ±(%2+5) |
| AC Voltage Frequency Response | 40 Hz – 400 Hz |
| AC Voltage Measurement | 1000 V · ±(%1,2+3) |
| Analog Bar Graph | 31 segment |
| Gram | 420 g |
| DC Current Measurement | 1000 A · ±(%2+5) |
| DC Voltage Measurement | 1000 V · ±(%0,5+5) |
| Resistance Measurement | 60 MΩ · ±(%1+2) |
| Low Voltage Frequency Measurement | 10 Hz – 1 MHz · ±(%0,1+3) |
| Low Voltage Frequency Measurement | 10Hz~1MHz (doğruluk: ±(0.1%+3)) |
| Additional Functions | Sıfırlama |
| Display Size | 43 mm × 45 mm |
| Display Count | 6000 |
| Duty Cycle Measurement | %10 – %90 · ±(%2,6+7) |
| Safety Category | CAT III 1000 V / CAT IV 600 V |
| Power Source | 3 × 1,5 V pil (R03) |
| Inrush Current Measurement | 1000 A · ±(%10+10) |
| Capacitance Measurement | 60 mF · ±(%4+5) |
| LPF Voltage Measurement | 1000 V · ±(%2+5) |
| LoZ Voltage Measurement | 1000 V · ±(%2+5) |
| Standard Accessories | Test probları, piller, İngilizce kullanım kılavuzu |
| Reset Type | Available |
| Jaw Opening | 42 mm |
| Product Dimensions | 272 mm × 81 mm × 43,5 mm |
