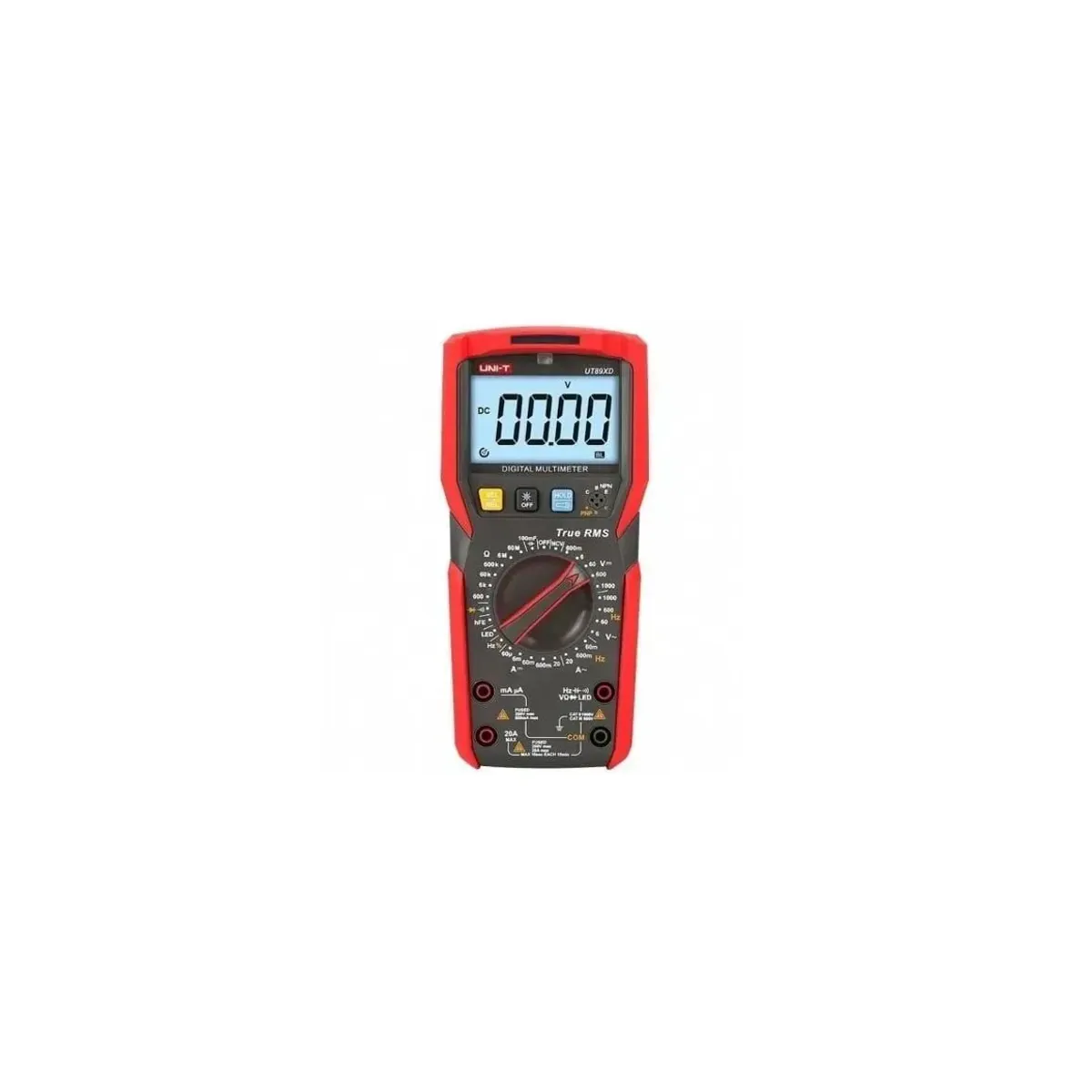

Unit UT 89XD Digital Multimeter
- Brand: Unit
- SKU: UT89XD
- MPN: UT89XD
- Price: 1416.13 TRY + VAT · incl. VAT 1699.36 TRY
- Availability: In stock
- Digital Multimeters (Handheld and Benchtop)
- Unit Digital Multimeters (Handheld and Benchtop)
- Selection guide: Digital Multimeters (Handheld and Benchtop) Selection Guide: Technical Criteria and Engineering Practice
Unit UT 89XD Digital Multimeter, a digital multimeter model from the UNI-T UT89X series. Measurement functions: DC voltage (1000 V), AC voltage (1000 V), DC current (20 A), AC current (20 A), resistance (60 MΩ), capacitance (100 mF), frequency (9.999 MHz), duty cycle (0.1% – 99.9%). Other features: transistor (hFE) test, dual-sensitivity NCV, flashlight, audible and visual alarm. Power source: 4 × 1.5 V battery (R03). Box contents: batteries, test probes, English user manual.
| AC Current Measurement | 60 mA / 600 mA / 20 A · ±(%1+12) |
|---|---|
| AC Voltage Measurement | 6 V / 60 V / 600 V / 1000 V · ±(%0,8+5) |
| Gram | 345 g |
| DC Current Measurement | 60 µA / 6 mA / 60 mA / 600 mA / 20 A · ±(%0,8+8) |
| DC Voltage Measurement | 600 mV / 6 V / 60 V / 600 V / 1000 V · ±(%0,5+2) |
| Resistance Measurement | 600 Ω / 6 kΩ / 60 kΩ / 600 kΩ / 6 MΩ / 60 MΩ · ±(%0,8+3) |
| Additional Functions | Transistör (hFE) testi, çift hassasiyetli NCV, el feneri, sesli ve ışıklı alarm |
| Display Size | 61 mm × 36 mm |
| Flashlight | Available |
| Frequency Measurement | 9,999 Hz / 9,999 MHz · ±(%0,1+4) |
| Duty Cycle Measurement | %0,1 – %99,9 · ±(%2+5) |
| Power Source | 4 × 1,5 V pil (R03) |
| Capacitance Measurement | 100 mF · ±(%2,5+20) |
| LED Test | 12 V |
| NCV Non-Contact Voltage Detection | Available |
| Audible and Visual Alarm | V/A/Kapasitans/Diyot; LED/hFE/NCV |
| Standard Accessories | Piller, test probları, İngilizce kullanım kılavuzu |
| Transistor hFE Measurement | Available |
| Product Dimensions | 189 mm × 89 mm × 53 mm |
