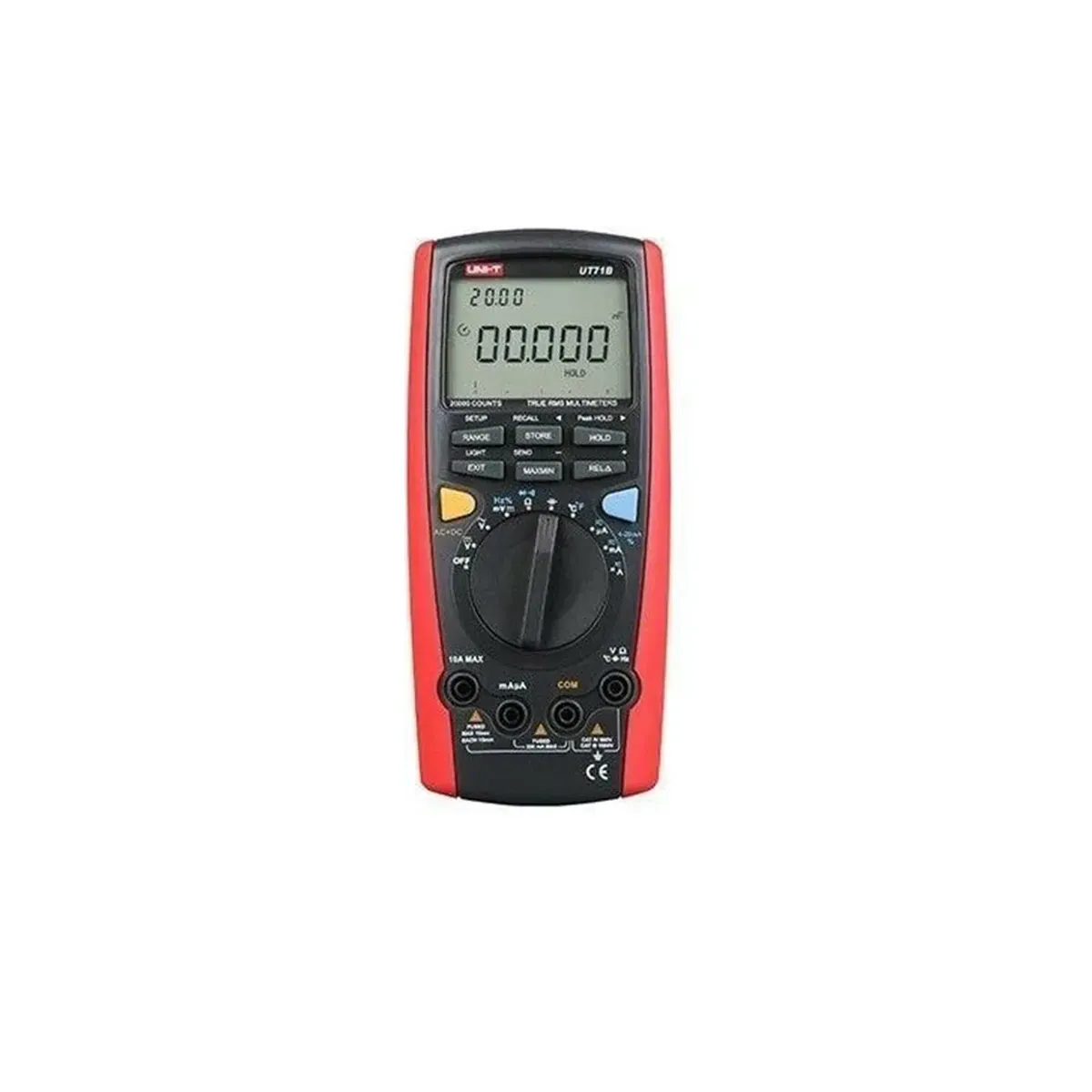

Unit UT71B Digital Multimeter
- Brand: Unit
- SKU: UT71B
- MPN: UT71B
- Price: 8999.29 TRY + VAT · incl. VAT 10799.15 TRY
- Availability: In stock
- Digital Multimeters (Handheld and Benchtop)
- Unit Digital Multimeters (Handheld and Benchtop)
- Selection guide: Digital Multimeters (Handheld and Benchtop) Selection Guide: Technical Criteria and Engineering Practice
Unit UT71B Digital Multimeter is a digital multimeter model from the UNI-T UT71 series. It has a 20000-count display. Measurement functions: DC voltage (1000 V), AC voltage (1000 V), DC current (10 A), AC current (10 A), resistance (20 MΩ), capacitance (20 mF), frequency (20 Hz – 200 MHz), temperature (−40 °C – 1000 °C). Power source: 9 V battery (6F22). Box contents: battery, test probes, test clips, USB interface cable, PC software CD, carrying case, point-contact temperature probe.
| Display Count | 20000 |
|---|---|
| DC Voltage Measurement | 1000 V · ±(%0,05+5) |
| AC Voltage Measurement | 1000 V · ±(%0,6+40) |
| DC Current Measurement | 10 A · ±(%0,15+20) |
| AC Current Measurement | 10 A · ±(%0,8+15) |
| Resistance Measurement | 20 MΩ · ±(%0,4+20) |
| Capacitance Measurement | 20 mF · ±(%1,2+20) |
| Frequency Measurement | 20 Hz – 200 MHz · ±(%0,1+15) |
| Temperature Measurement | −40 °C – 1000 °C · ±(%1+30) |
| Power Source | 9 V pil (6F22) |
| Display Size | 73 mm × 50 mm |
| Product Dimensions | 200 mm × 93 mm × 40 mm |
| Gram | 384 g |
| Standard Accessories | Pil, test probları, test klipsleri, USB arayüz kablosu, PC yazılım CD'si, taşıma çantası, nokta temaslı sıcaklık probu |
