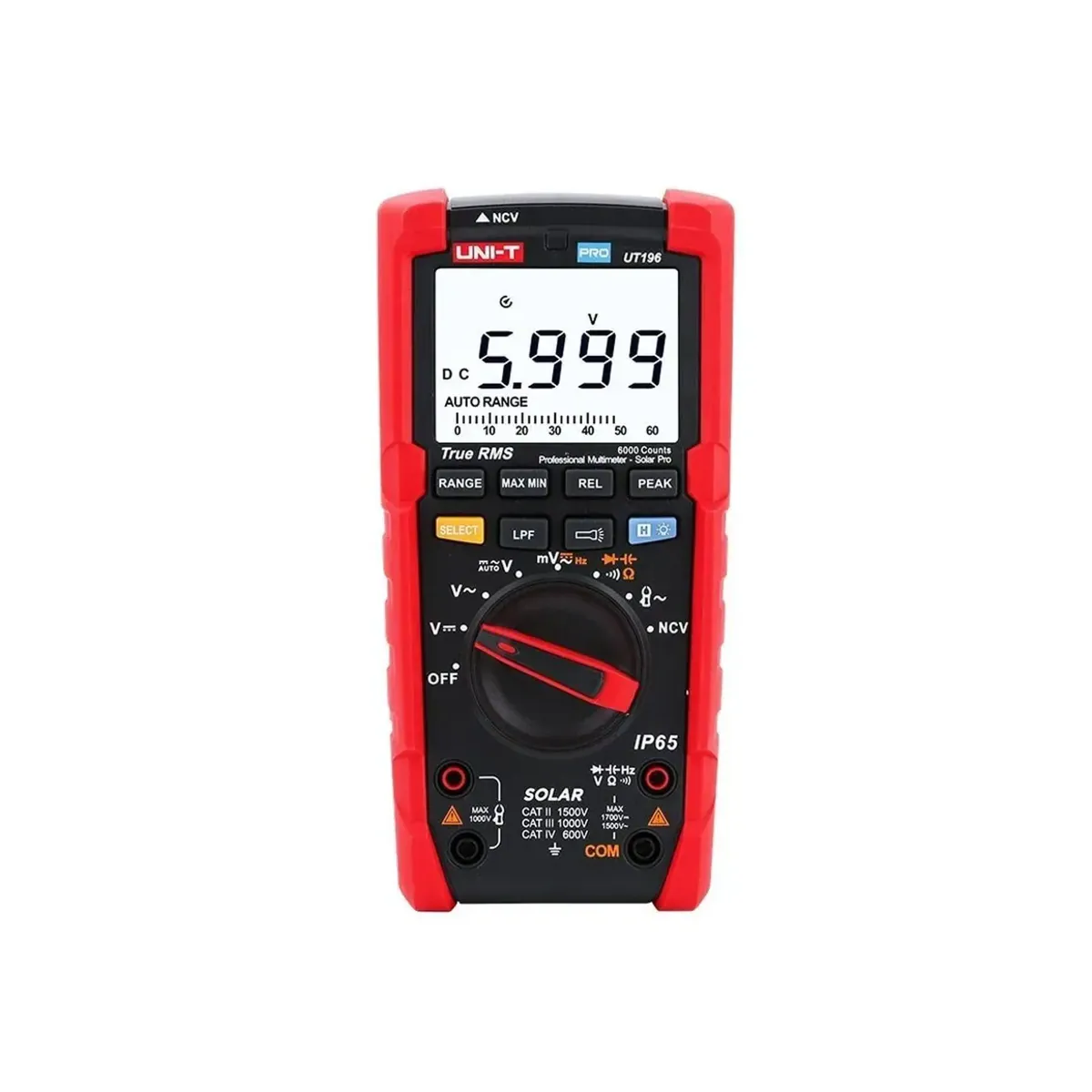

Unit UT196 1700V DC True RMS Professional Solar Digital Multimeter
- Brand: Unit
- SKU: UT196
- MPN: UT196
- Price: 6623.84 TRY + VAT · incl. VAT 7948.61 TRY
- Availability: In stock
- Digital Multimeters (Handheld and Benchtop)
- Unit Digital Multimeters (Handheld and Benchtop)
- Selection guide: Digital Multimeters (Handheld and Benchtop) Selection Guide: Technical Criteria and Engineering Practice
Unit UT196 1700V DC True RMS Professional Solar Digital Multimeter is a digital multimeter model manufactured by UNI-T. It has a 6000-count display and performs True RMS measurement. Measurement functions: DC voltage (1700 V), AC voltage (1500 V), resistance (60 MΩ), capacitance (60 mF), frequency (1 MHz). Other features: dual display, NCV non-contact voltage detection, diode test, audible continuity test, relative (REL) measurement, MAX/MIN, peak hold, low-pass filter (LPF), audible and visual alert, low battery indicator (approx. < 7.5 V), data hold, analog bar graph, auto power off (approx. 15 min), flashlight. Safety category CAT III 1000 V, CAT IV 600 V. Power source: 9 V battery. Box contents: English user manual, test probes, battery.
| AC Voltage Measurement | 1500 V · ±(%0,8+3) |
|---|---|
| Low-Pass Filter | Available |
| Analog Bar Graph | Available |
| Gram | 485 g |
| Relative Measurement | Available |
| DC Voltage Measurement | 1700 V · ±(%0,2+5) |
| Resistance Measurement | 60 MΩ · ±(%0,8+2) |
| Diode Test | Available |
| Drop Resistance | 2 m |
| Low Battery Indication | <7.5V yaklaşık |
| Additional Functions | Çift ekran, NCV temassız gerilim algılama, diyot testi, sesli süreklilik testi, bağıl (REL) ölçüm, MAX/MIN, tepe değer tutma, düşük geçiren filtre (LPF), sesli ve ışıklı uyarı, düşük pil göstergesi (yaklaşık < 7,5 V), veri tutma, analog çubuk gösterge, otomatik kapanma (yaklaşık 15 min), el feneri |
| Display Count | 6000 |
| Flashlight | Available |
| Frequency Measurement | 1 MHz · ±(%0,08+4) |
| Safety Category | CAT III 1000 V, CAT IV 600 V |
| Power Source | 9 V pil |
| IP Rating | IP65 |
| Range Selection | Otomatik |
| Capacitance Measurement | 60 mF · ±(%1,9+5) |
| MIN/MAX | Available |
| NCV Non-Contact Voltage Detection | Available |
| Auto Power Off | Yaklaşık 15 dakika |
| Audible and Visual Alarm | Available |
| Standard Accessories | İngilizce kullanım kılavuzu, test probları, pil |
| Continuity Test | Available |
| Peak Hold | Available |
| True RMS | Available |
| Data Hold | Available |
| Dual Display | Available |
| Product Dimensions | 195 × 95 × 58 mm |
