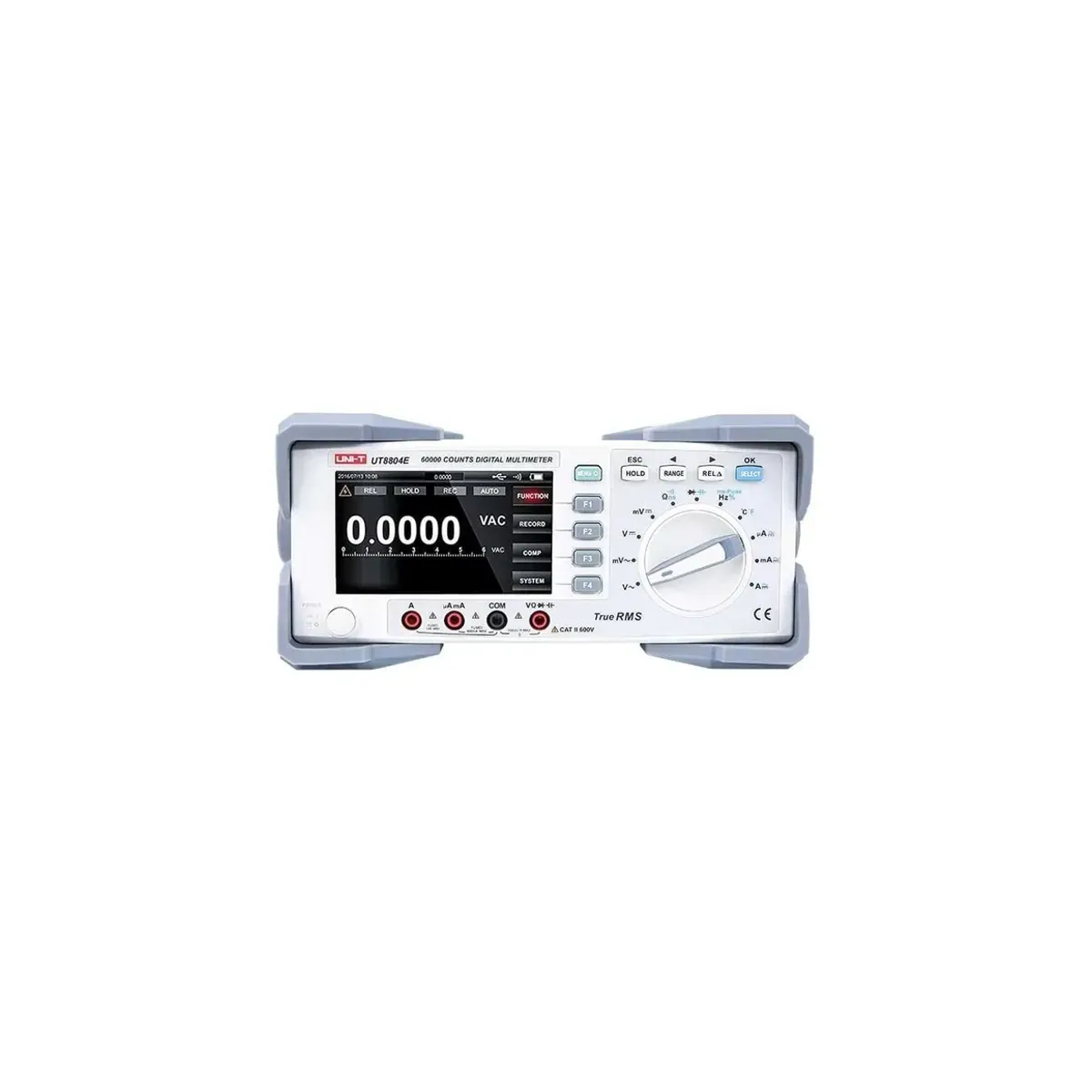

Unit UT8804E Benchtop Digital Multimeter
- Brand: Unit
- SKU: UT8804E
- MPN: UT8804E
- Price: 18044.26 TRY + VAT · incl. VAT 21653.11 TRY
- Availability: Made to order
- Digital Multimeters (Handheld and Benchtop)
- Unit Digital Multimeters (Handheld and Benchtop)
- Selection guide: Digital Multimeters (Handheld and Benchtop) Selection Guide: Technical Criteria and Engineering Practice
Unit UT8804E is a benchtop digital multimeter with 59,999 counts and True RMS measurement, manufactured by UNI-T. Measures 1000 V AC/DC voltage, AC+DC voltage, AC/DC current up to 10 A, 60 MΩ resistance, 60 nS conductance, capacitance, frequency up to 60 MHz, duty cycle, pulse width and temperature with a K-type thermocouple. Offers ±(0.025%+5) basic accuracy on DC voltage; has a low-pass filter (LPF) function. Has 20,000 groups of data logging with maximum/minimum/average, peak value, comparative measurement and trend graph functions; can be monitored from computer software via USB connection. It is CE and cETLus certified.
| Display Count | 59.999 |
|---|---|
| True RMS | Available |
| DC Voltage Measurement | 60 mV · ±(%0,025+20) (REL ile); 600 mV / 6 V / 60 V · ±(%0,025+5); 600 V / 1000 V · ±(%0,03+5) |
| AC Voltage Measurement | 60 mV · ±(%0,6+60); 600 mV – 60 V · ±(%0,3+30); 600 V · ±(%0,4+30) (45 Hz – 1 kHz); 1000 V · ±(%0,6+30) (45 Hz – 1 kHz); 100 kHz'e kadar frekans tepkisi |
| AC+DC Voltage Measurement | 60 mV – 600 V · ±(%1+80); 1000 V · ±(%1,2+80) (50 Hz – 1 kHz) |
| DC Current Measurement | 600 µA / 6000 µA / 60 mA · ±(%0,08+10–20); 600 mA · ±(%0,15+10); 6 A · ±(%0,3+10); 10 A · ±(%0,5+10) |
| AC Current Measurement | 600 µA – 600 mA · ±(%0,6+20–40); 6 A / 10 A · ±(%1+20) (45 Hz – 1 kHz) |
| Resistance Measurement | 600 Ω · ±(%0,05+10) (REL ile); 6 kΩ / 60 kΩ / 600 kΩ · ±(%0,05+2); 6 MΩ · ±(%0,3+10); 60 MΩ · ±(%2+10) |
| Conductance Measurement | 60 nS · ±(%2+10) |
| Capacitance Measurement | 6 nF · ±(%3+10); 60 nF · ±(%2,5+5); 600 nF – 600 µF · ±(%2+5); 6 mF · ±(%5+5); 60 mF belirtilmemiş |
| Frequency Measurement | 60 Hz · ±(%0,02+8); 600 Hz – 60 MHz · ±(%0,01+5) |
| Duty Cycle Measurement | %10 – %90 (10 Hz – 2 kHz) · ±(%1,2+30) |
| Temperature Measurement | −40 °C – 1000 °C (K tipi termokupl) · ±(%1+30) (40–100 °C), ±%2,5 (100–1000 °C) |
| Pulse Width Measurement | 250 ms · ±(%1,2+30) |
| Diode Test | Yaklaşık 3 V açık devre gerilimi |
| Continuity Test | Sesli (< 10 Ω) |
| DCV Input Impedance | Yaklaşık 10 MΩ |
| Measurement Rate | Saniyede 2 okuma |
| Data Logging | 20.000 grup |
| Additional Functions | Alçak geçiren filtre (LPF), maksimum/minimum/ortalama, tepe değer, karşılaştırmalı ölçüm, trend grafiği, bilgisayar yazılımıyla uzaktan izleme |
| Interfaces | USB Device |
| Certifications | CE, cETLus |
