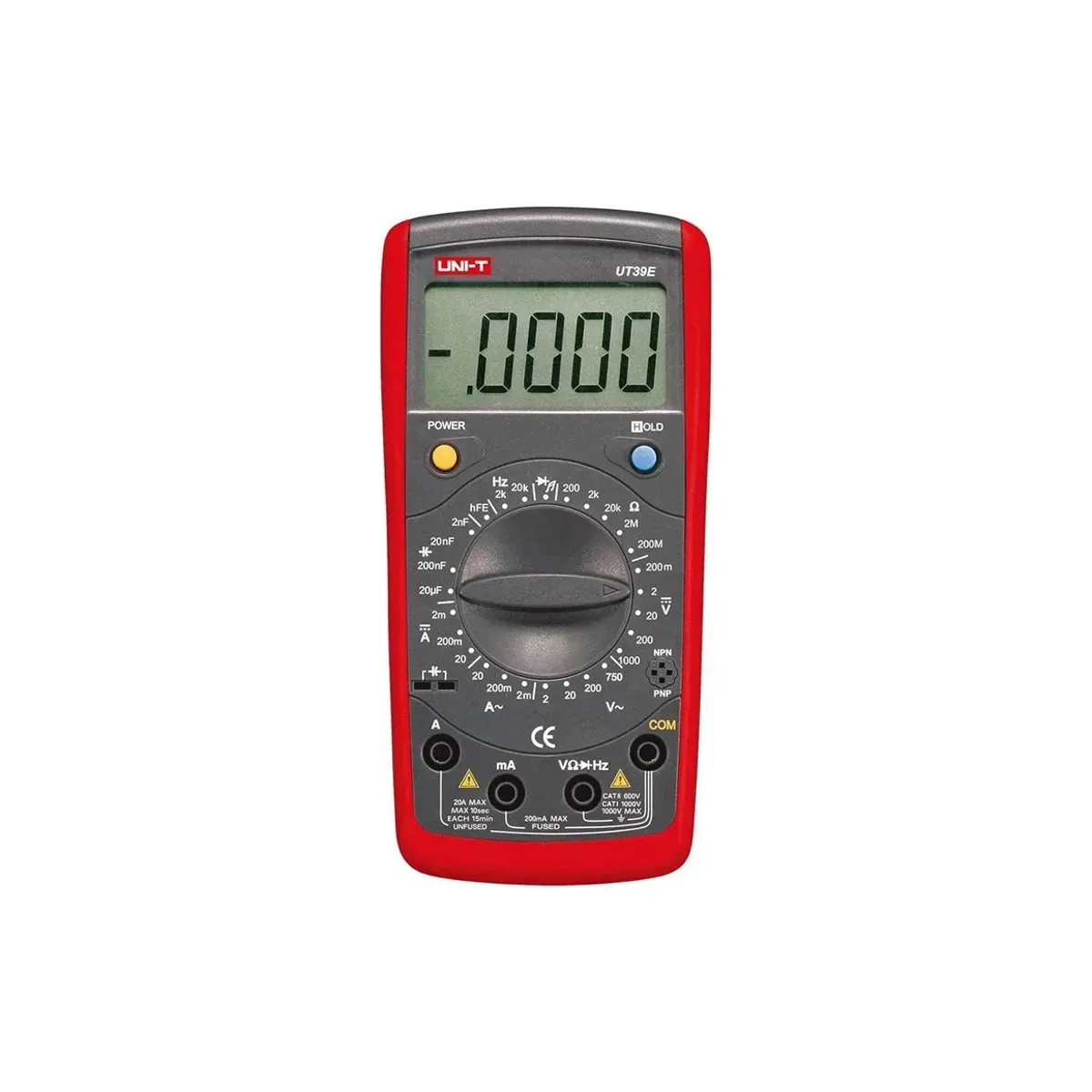

Unit UT39E+ Digital Multimeter Measuring Instrument
- Brand: Unit
- SKU: UT39E+
- MPN: UT39E+
- Price: 1713.06 TRY + VAT · incl. VAT 2055.67 TRY
- Availability: In stock
- Digital Multimeters (Handheld and Benchtop)
- Unit Digital Multimeters (Handheld and Benchtop)
- Selection guide: Digital Multimeters (Handheld and Benchtop) Selection Guide: Technical Criteria and Engineering Practice
Unit UT39E+ Digital Multimeter Measuring Instrument is a digital multimeter model from the UNI-T UT39+ series. It has a 20000-count display. Measurement functions: DC voltage (1000 V), AC voltage (1000 V), DC current (20 A), AC current (20 A), resistance (200 MΩ), capacitance (2000 µF), frequency (10 Hz – 2 MHz), temperature (−40 °C – 1000 °C), conductivity (0.1 – 100nS). Other features: NCV non-contact voltage detection. Safety category CAT II 1000 V, CAT III 600 V. Power source: 2 × 1.5 V battery (R03). Box contents: test probes, temperature probe, English user manual.
| AC Current Measurement | 2000 µA / 20 mA / 200 mA / 2 A / 20 A · ±(%0,8+10) |
|---|---|
| AC Voltage Measurement | 200 mV / 2 V / 20 V / 200 V / 1000 V · ±(%0,5+10) |
| Gram | 330 g |
| DC Current Measurement | 2000 µA / 20 mA / 200 mA / 2 A / 20 A · ±(%0,5+5) |
| DC Voltage Measurement | 200 mV / 2 V / 20 V / 200 V / 1000 V · ±(%0,05+3) |
| Resistance Measurement | 200 Ω / 2 kΩ / 20 kΩ / 2 MΩ / 20 MΩ / 200 MΩ · ±(%0,3+2) |
| Additional Functions | NCV temassız gerilim algılama |
| Display Size | 56,5 mm × 36 mm |
| Display Count | 20000 |
| Frequency Measurement | 10 Hz – 2 MHz · ±(%0,1+3) |
| Safety Category | CAT II 1000 V, CAT III 600 V |
| Power Source | 2 × 1,5 V pil (R03) |
| Capacitance Measurement | 2000 µF · ±(%4+20) |
| NCV Non-Contact Voltage Detection | Available |
| Standard Accessories | Test probları, sıcaklık probu, İngilizce kullanım kılavuzu |
| Temperature Measurement | −40 °C – 1000 °C · ±(%1+5) |
| Product Dimensions | 175 mm × 83 mm × 53 mm |
| Conductance Measurement | 0,1 – 100nS · ±(%1+3) |
