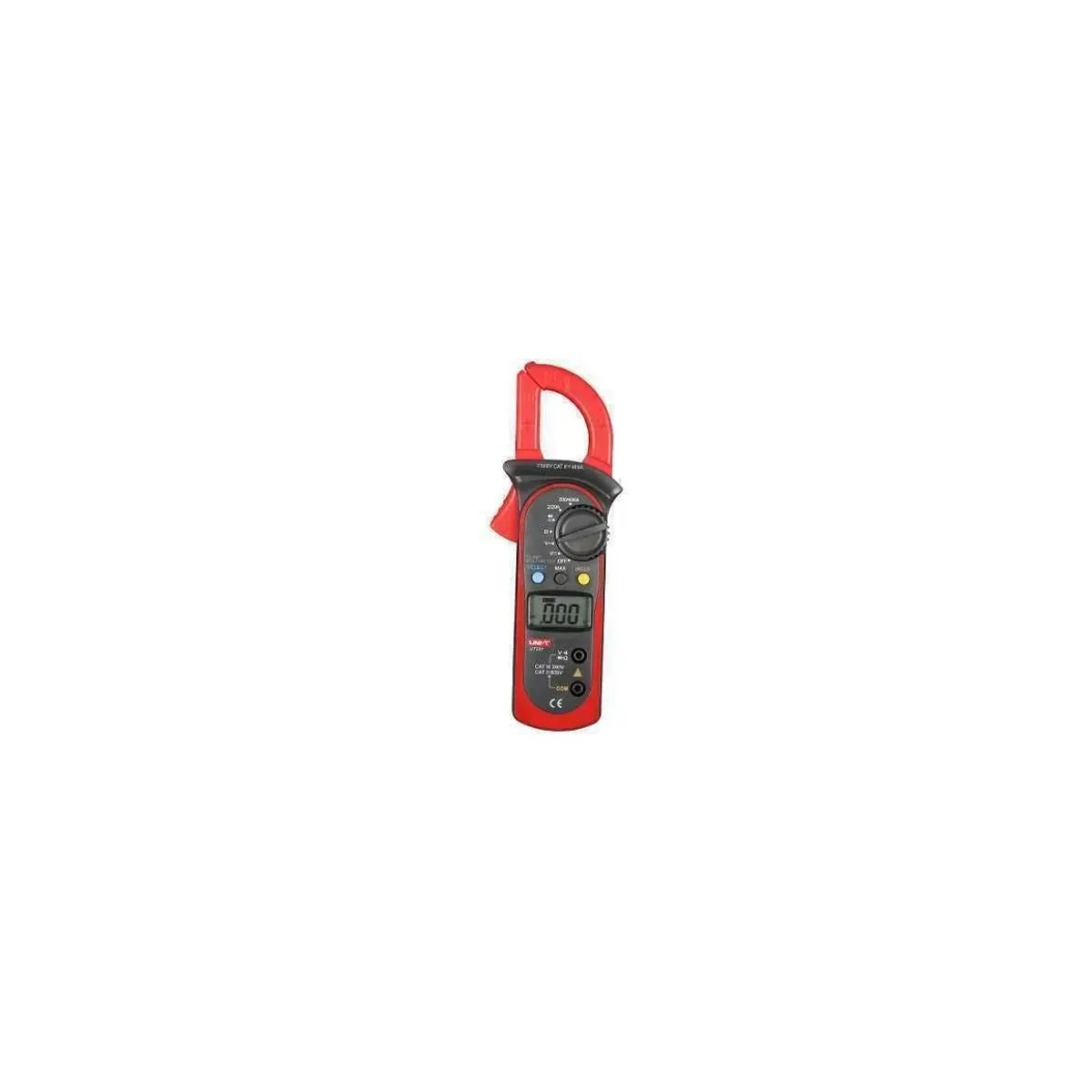

Unit UT201+ True Rms Digital Clamp Meter
- Brand: Unit
- SKU: UT201+
- MPN: UT201+
- Price: 1096.36 TRY + VAT · incl. VAT 1315.63 TRY
- Availability: In stock
- Clamp Meters
- Unit Clamp Meters
- Selection guide: Clamp Meters Selection Guide
Unit UT201+, EN61010-2010 is a 400 A True RMS digital clamp meter designed to CAT II 600 V / CAT III 300 V. With a 28 mm jaw opening, it measures AC current up to 400 A, 600 V AC/DC voltage and 40 MΩ resistance; it has a 4000 count display and auto range selection. Provides NCV non-contact voltage detection, audible continuity, diode test, MAX/MIN and data hold functions. The manufacturer specifies industrial and residential electrical work, air conditioning and automotive as areas of use. Runs on two 1.5 V (R03) batteries; the batteries and test probes are supplied in the box.
| AC Current Frequency Measurement | 50Hz~100Hz (doğruluk: ±(1%+5)) |
|---|---|
| AC Current Measurement | 400 A · ±(%2+10) |
| AC Voltage Frequency Measurement | 10Hz~10kHz (doğruluk: ±(1%+5)) |
| AC Voltage Measurement | 600 V · ±(%0,8+5) |
| Gram | 248 g |
| DC Voltage Measurement | 600 V · ±(%0,5+2) |
| Resistance Measurement | 40 MΩ · ±(%0,8+2) |
| Diode Test | Available |
| Low Battery Indication | Available |
| Additional Functions | NCV, sesli süreklilik, diyot, MAX/MIN, veri tutma, düşük pil göstergesi, otomatik kapanma |
| Display Size | 37 × 25 mm |
| Display Count | 4000 |
| Frequency Measurement | Akım 50–100 Hz · ±(%1+5); gerilim 10 Hz – 10 kHz · ±(%1+5) |
| Safety Category | CAT II 600 V / CAT III 300 V (EN61010-2010) |
| Power Source | 2 × 1,5 V pil (R03) |
| Range Selection | Otomatik |
| MIN/MAX | Available |
| NCV Non-Contact Voltage Detection | Available |
| Auto Power Off | Available |
| Standard Accessories | Piller, test probları |
| Continuity Test | Available |
| True RMS | Available |
| Data Hold | Available |
| Jaw Opening | 28 mm |
| Product Dimensions | 215 × 63 × 36 mm |
