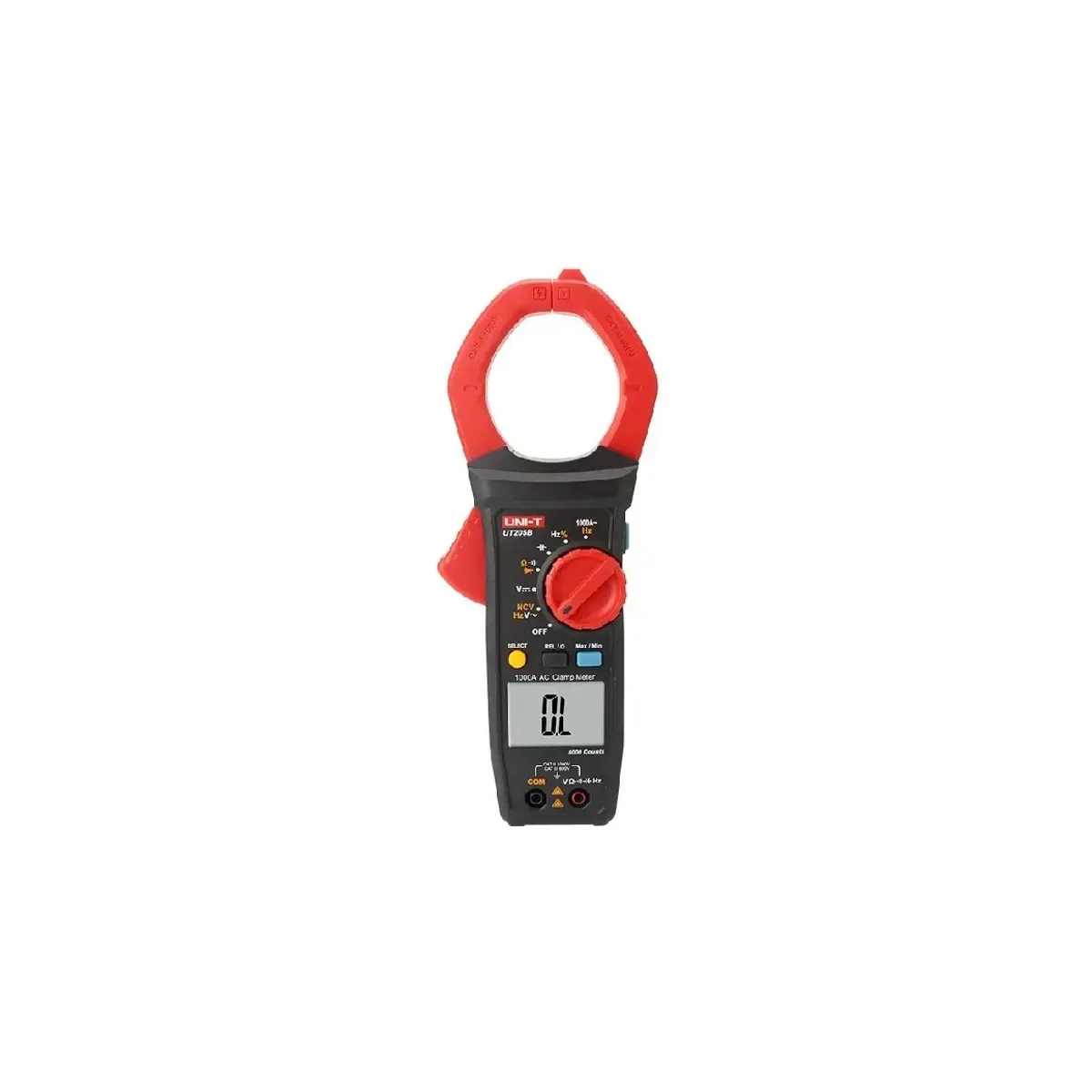

Unit UT205B 1000A AC Clamp Meter
- Brand: Unit
- SKU: UT205B
- MPN: UT205B
- Price: 2284.08 TRY + VAT · incl. VAT 2740.90 TRY
- Availability: In stock
- Clamp Meters
- Unit Clamp Meters
- Selection guide: Clamp Meters Selection Guide
Unit UT205B 1000A AC Clamp Meter, a clamp meter model manufactured by UNI-T. It has a 4099-count display. Measurement functions: DC voltage (1000 V), AC voltage (1000 V), AC current (1000 A), resistance (40.00 MΩ), capacitance (40 mF), frequency (10 Hz – 10 MHz), duty cycle (0.1% – 99.9%), voltage frequency (10 Hz – 10 kHz), current frequency (40 Hz – 1 kHz). Jaw opening 60 mm. Other features: NCV non-contact voltage detection, audible continuity test, diode test, low battery indicator, data hold, MAX/MIN, flashlight, backlight, relative (REL) measurement. Safety category CAT II 1000 V / CAT III 600 V.
| AC Current Frequency Measurement | 40 Hz – 1 kHz · ±(%1,0+5) |
|---|---|
| AC Current Measurement | 1000 A · ±(%1,5+5) |
| AC Voltage Frequency Measurement | 10 Hz – 10 kHz · ±(%1+5) |
| AC Voltage Measurement | 1000 V · ±(%1,0+2) |
| Backlight | Available |
| Relative Measurement | Available |
| DC Voltage Measurement | 1000 V · ±(%0,8+2) |
| Resistance Measurement | 40,00 MΩ · ±(%2,5+5) |
| Diode Test | Available |
| Low Battery Indication | Available |
| Additional Functions | NCV temassız gerilim algılama, sesli süreklilik testi, diyot testi, düşük pil göstergesi, veri tutma, MAX/MIN, el feneri, arka ışık, bağıl (REL) ölçüm |
| Display | 42*30mm |
| Display Size | 42 × 30 mm |
| Display Count | 4099 |
| Flashlight | Available |
| Frequency Measurement | 10 Hz – 10 MHz · ±(%0,1+4) |
| Duty Cycle Measurement | %0,1 – %99,9 · ±(%3,0+5) |
| Safety Category | CAT II 1000 V / CAT III 600 V |
| Capacitance Measurement | 40 mF · ±(%10) |
| MIN/MAX | Available |
| NCV Non-Contact Voltage Detection | Available |
| Auto Power Off | yaklaşık 15 min |
| Continuity Test | Available |
| Data Hold | Available |
| Jaw Opening | 60 mm |
| Jaw Size | 55 mm |
