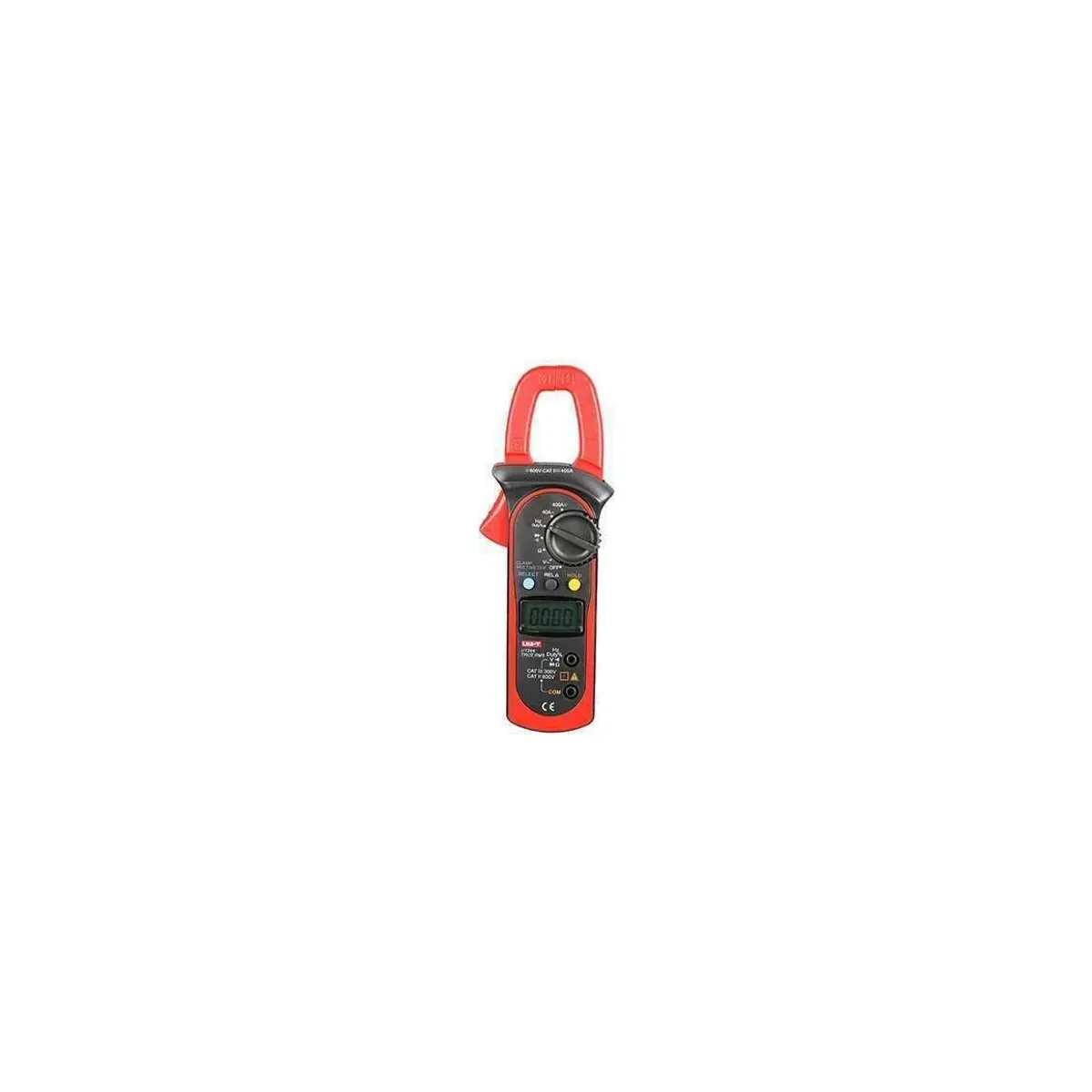

Unit UT204+ True Rms Ac/Dc Digital Clamp Meter

Unit UT204+ True Rms Ac/Dc Digital Clamp Meter

Unit UT204+ True Rms Ac/Dc Digital Clamp Meter. AC Current Measurement: 600A (accuracy: ±(2.5%+5)). DC Current Measurement: 600A (accuracy: ±(2.5%+5)). AC Voltage Measurement: 600V (accuracy: ±(0.8%+5)). DC Voltage Measurement: 600V (accuracy: ±(0.5%+2)). Temperature Measurement: -40°C~1000°C (accuracy: ±(1.5%+5)). Display Count: 6000. AC Voltage Frequency Measurement: 10Hz~60kHz (accuracy: ±(0.5%+2)). Resistance Measurement: 60MΩ (accuracy: ±(0.8%+2)). Capacitance Measurement: 60mF (accuracy: ±(4%+5)). Frequency Measurement: 10Hz~10MHz (accuracy: ±(0.1%+4)). Other features: Range Selection: Yes; Jaw Opening: 28mm; True RMS: Yes; NCV Non-Contact Voltage Detection: Yes; Phase Detection: Yes; Continuity Test: Yes; Diode Test: Yes; MIN/MAX: Yes.

AC Current Measurement600A (doğruluk: ±(2.5%+5))
AC Voltage Frequency Measurement10Hz~60kHz (doğruluk: ±(0.5%+2))
AC Voltage Measurement600V (doğruluk: ±(0.8%+5))
Relative MeasurementAvailable
DC Current Measurement600A (doğruluk: ±(2.5%+5))
DC Voltage Measurement600V (doğruluk: ±(0.5%+2))
Resistance Measurement60MΩ (doğruluk: ±(0.8%+2))
Diode TestAvailable
Low Battery IndicationAvailable
Display Size37mm x 25mm
Display Count6000
Phase DetectionAvailable
Frequency Measurement10Hz~10MHz (doğruluk: ±(0.1%+4))
Power Source1.5V pil (R03) x 2
Range SelectionAvailable
Capacitance Measurement60mF (doğruluk: ±(4%+5))
MIN/MAXAvailable
NCV Non-Contact Voltage DetectionAvailable
Auto Power OffAvailable
Continuity TestAvailable
Temperature Measurement-40°C~1000°C (doğruluk: ±(1.5%+5))
Reset TypeAvailable
True RMSAvailable
Data HoldAvailable
Jaw Opening28 mm
Product Dimensions215mm x 63mm x 36mm
