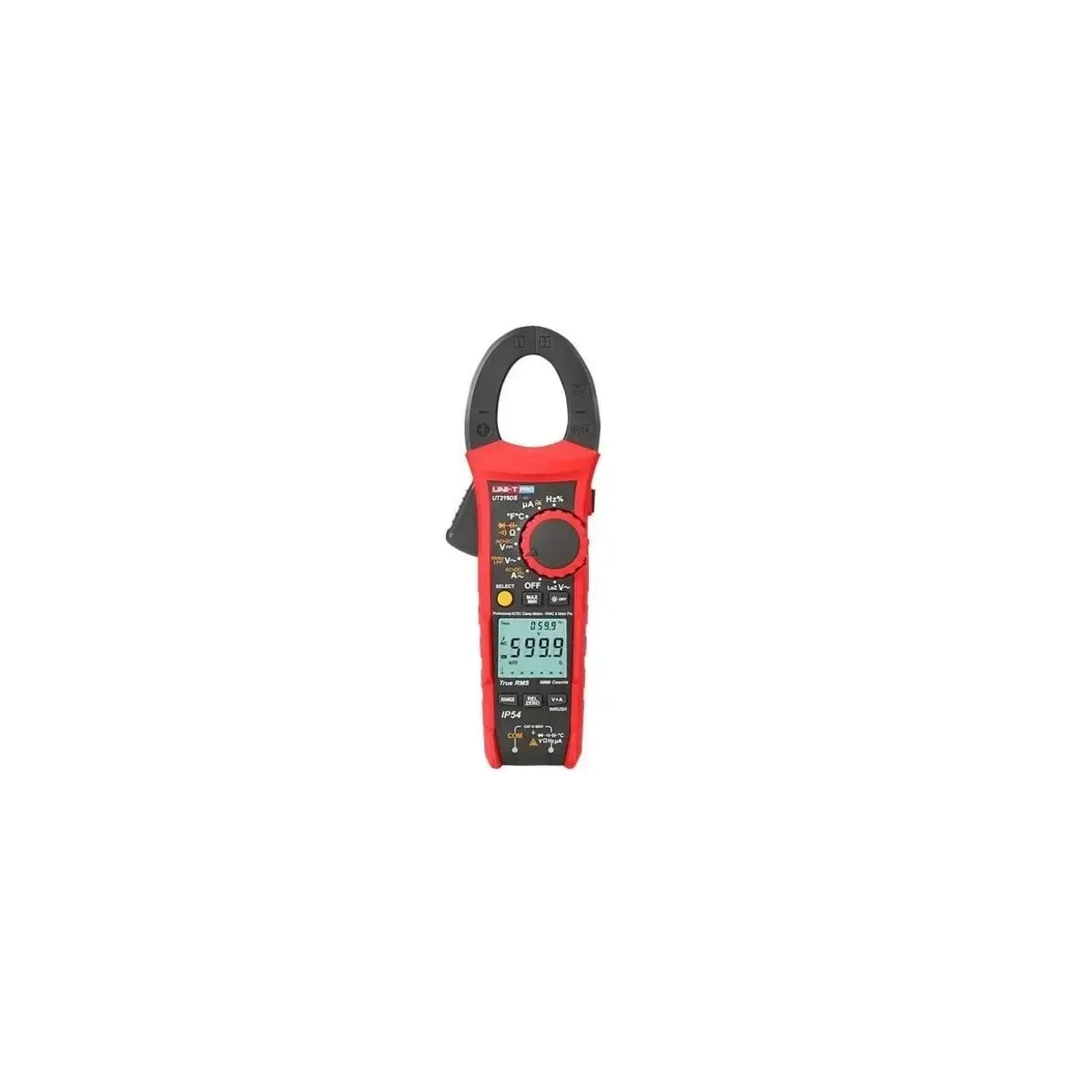

Unit UT219DS AC/DC 600A True RMS Clamp Meter
- Brand: Unit
- SKU: UT219DS
- MPN: UT219DS
- Price: 7309.07 TRY + VAT · incl. VAT 8770.88 TRY
- Availability: In stock
- Clamp Meters
- Unit Clamp Meters
- Selection guide: Clamp Meters Selection Guide
Unit UT219DS AC/DC 600A True RMS Clamp Meter, a clamp meter model of the UNI-T UT219 series. It has a 6000-count display and performs True RMS measurement. Measurement functions: DC voltage (1000 V), AC voltage (1000 V), DC current (600 A), AC current (600 A), resistance (60 MΩ), capacitance (60 mF), frequency (600 Hz – 40 MHz), temperature (−40 – 1000 °C), duty cycle (0.1% – 99.9%). Jaw opening 33 mm. Other features: 3-phase motor phase sequence test (600 V), low-pass filter (LPF), simultaneous voltage and current display, low battery indicator, reset, function selection (SELECT), auto power off, MAX, MIN, data hold, relative (REL) measurement, automatic backlight, 2 m drop resistance. Safety category CAT IV 600 V. Power source: 3 × 1.5 V battery (R03). Box contents: test probes, batteries, carrying case, PC software CD, point-contact temperature probe.
| AC Current Frequency Response | 40 Hz – 400 Hz |
|---|---|
| AC Current Measurement | 600 A · ±(%1,8+6) |
| AC Voltage Frequency Response | 40 Hz – 1 kHz |
| AC Voltage Measurement | 1000 V · ±(%1+6) |
| Low-Pass Filter | 1kHz, 3db zayıflatma |
| Analog Bar Graph | 31 segment |
| Analog Bar Update Rate | 20 kez/s |
| Gram | 310 g |
| DC Current Measurement | 600 A · ±(%1,8+6) |
| DCV Input Impedance | ≥10 MΩ |
| DC Voltage Measurement | 1000 V · ±(%0,6+3) |
| Resistance Measurement | 60 MΩ · ±(%1+3) |
| Diode Test | 3 V |
| Low Battery Indication | Available |
| Additional Functions | 3 faz motor faz sırası testi (600 V), düşük geçiren filtre (LPF), gerilim ve akımı aynı anda gösterme, düşük pil göstergesi, sıfırlama, fonksiyon seçimi (SELECT), otomatik kapanma, MAX, MIN, veri tutma, bağıl (REL) ölçüm, otomatik arka ışık, 2 m düşme dayanımı |
| Display | Çift |
| Display Size | 35 mm × 31 mm |
| Display Count | 6000 |
| Simultaneous Voltage and Current Display | Available |
| Function Selection | Available |
| Frequency Measurement | 600 Hz – 40 MHz · ±(%0,1+6) |
| Duty Cycle Measurement | %0,1 – %99,9 · ±(%2,6+7) |
| Safety Category | CAT IV 600 V |
| Power Source | 3 × 1,5 V pil (R03) |
| IP Rating | IP54 |
| Range Selection | Otomatik / Manuel |
| Capacitance Measurement | 60 mF · ±(%4+7) |
| LPF Cut-off Frequency | 1 kHz |
| LoZ Voltage Measurement | 600 V · ±(%2,5+6) |
| Auto Power Off and MIN/MAX | Available |
| Standard Accessories | Test probları, piller, taşıma çantası, PC yazılım CD'si, nokta temaslı sıcaklık probu |
| Temperature Measurement | −40 – 1000 °C · ±(%2+5 °C) |
| Reset Type | Available |
| True RMS | Available |
| Data Hold and Relative Measurement | Available |
| Jaw Opening | 33 mm |
| Measurement Rate | 5 kez/s |
| Measurement Sampling Rate | 5 ölçüm/s |
| Product Dimensions | 234,6 mm × 82 mm × 47 mm |
| Three-Phase Motor Rotation Test | 600 V |
