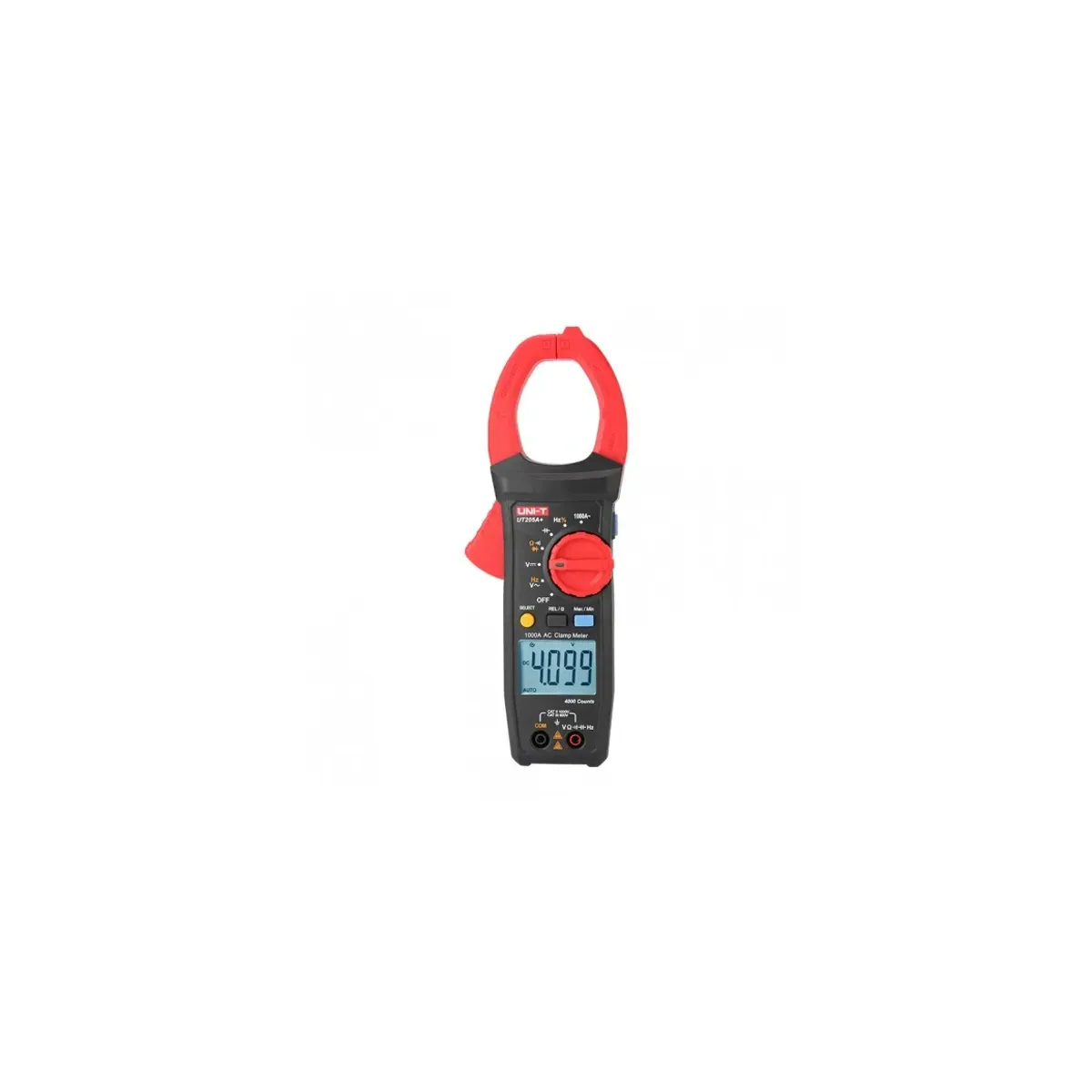

Unit UT205A+ 1000A AC Clamp Meter
- Brand: Unit
- SKU: UT205A+
- MPN: UT205A+
- Price: 2192.72 TRY + VAT · incl. VAT 2631.26 TRY
- Availability: In stock
- Clamp Meters
- Unit Clamp Meters
- Selection guide: Clamp Meters Selection Guide
Unit UT205A+ 1000A AC Clamp Meter, a clamp meter model manufactured by UNI-T. It has a 4099-count display. Measurement functions: DC voltage (1000 V), AC voltage (1000 V), AC current (1000 A), resistance (40 MΩ), capacitance (40 mF), frequency (10.00 Hz – 10.00 MHz), voltage frequency (10 Hz – 10 kHz). Jaw opening 45 mm. Other features: duty cycle measurement, diode test, audible continuity test, low battery indicator (approx. < 2.5 V), data hold, auto power off (approx. 15 min), MAX/MIN, flashlight, backlight. Safety category CAT II 1000 V / CAT III 600 V. Power source: AAA 2 × 1.5 V battery. Box contents: test probes, batteries, English user manual.
| AC Current Measurement | 1000 A · ±(%1,5+5) |
|---|---|
| AC Voltage Frequency Measurement | 10 Hz – 10 kHz · ±(%1+5) |
| AC Voltage Measurement | 1000 V · ±(%1,0+2) |
| Backlight | Available |
| Gram | 235 g (piller dahil) |
| DC Voltage Measurement | 1000 V · ±(%0,7+3) |
| Resistance Measurement | 40 MΩ · ±(%0,8+2) |
| Diode Test | Available |
| Low Battery Indication | <2.5V yaklaşık |
| Additional Functions | Görev döngüsü ölçümü, diyot testi, sesli süreklilik testi, düşük pil göstergesi (yaklaşık < 2,5 V), veri tutma, otomatik kapanma (yaklaşık 15 min), MAX/MIN, el feneri, arka ışık |
| Display Count | 4099 |
| Flashlight | Available |
| Frequency Measurement | 10,00 Hz – 10,00 MHz · ±(%0,1+4) |
| Duty Cycle Measurement | Available |
| Safety Category | CAT II 1000 V / CAT III 600 V |
| Power Source | AAA 2 × 1,5 V pil |
| Range Selection | Otomatik |
| Capacitance Measurement | 40 mF · ±(%4+5) |
| MIN/MAX | Available |
| Auto Power Off | Yaklaşık 15 dakika |
| Standard Accessories | Test probları, piller, İngilizce kullanım kılavuzu |
| Continuity Test | Available |
| Data Hold | Available |
| Jaw Opening | 45 mm |
| Product Dimensions | 242 × 76,5 × 52 mm |
