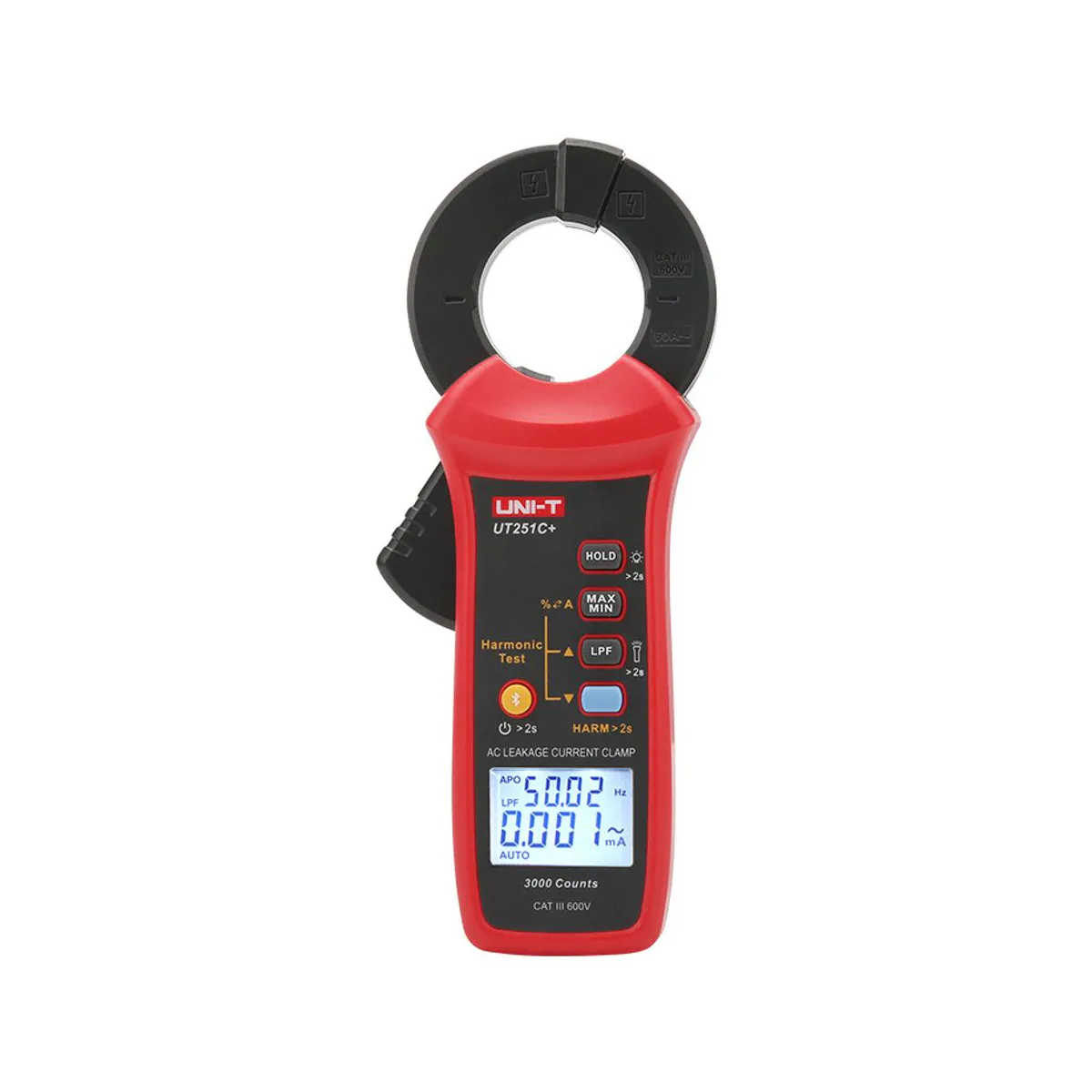

Unit UT251C+ 60A Bluetooth AC Leakage Current Clamp Meter
- Brand: Unit
- SKU: UT251C+
- MPN: UT251C+
- Price: 8451.11 TRY + VAT · incl. VAT 10141.33 TRY
- Availability: Made to order
- Clamp Meters
- Unit Clamp Meters
- Selection guide: Clamp Meters Selection Guide
Unit UT251C+ is an AC leakage current clamp meter by UNI-T with a 3000-count display; it measures µA-level AC leakage current, current up to 60 A, frequency and harmonics. The current ranges are 3.000 mA, 30.00 mA, 300.0 mA, 3.000 A, 30.00 A and 60.0 A, with 0.001 mA resolution in the 3 mA range. The accuracy is specified as ±(2%+5) in the 3 mA range and ±(1%+5) in the other ranges (40–60 Hz). Frequency is measured in 99.99 Hz, 999.9 Hz and 5.000 kHz ranges, and harmonics up to the 20th order are measured together with THDF and THDR. The jaw opening is 40 mm, and the meter provides a low-pass filter (LPF), MAX/MIN, data hold, a flashlight and Bluetooth connection to the UNI-T Smart Measure app. It is intended for tracking leakage current in grounding conductors and systems, checking distribution cabinet current, small and medium currents in industrial control systems, and analysing the current, frequency and harmonics of small and medium-power equipment.
| Gram | Yaklaşık 350 g |
|---|---|
| Overload Protection | 60 A rms |
| Low Battery Indication | Var (pil gerilimi yaklaşık 3.7 V altında) |
| Display | HTN LCD, çift ekran |
| Power Source | 3 × 1.5 V AAA pil |
| Range Selection | Otomatik |
| Leakage Current Measurement | 3.000 mA · ±(2%+5) (40–60 Hz), ±(3%+9) (60 Hz–1.2 kHz); 30.00 mA / 300.0 mA / 3.000 A / 30.00 A / 60.0 A · ±(1%+5) (40–60 Hz), ±(2%+9) (60 Hz–1.2 kHz) |
| Auto Power Off | Var (15 min) |
| Standard Accessories | Kullanım kılavuzu, 3 adet AAA pil, taşıma çantası |
| Data and Peak Hold | Available |
| Jaw Size | 40 mm |
| Product Dimensions | 200.1 mm × 70.5 mm × 40 mm |
| Resolution | 0.001 mA (3 mA); 0.01 mA (30 mA); 0.1 mA (300 mA); 0.001 A (3 A); 0.01 A (30 A); 0.1 A (60 A) |
| Frequency Measurement | 99.99 Hz / 999.9 Hz / 5.000 kHz · ±(0.1%+5) |
| Frequency Resolution | 0.01 Hz (99.99 Hz); 0.1 Hz (999.9 Hz); 0.001 kHz (5.000 kHz) |
| Frequency Response | 40 Hz–1.2 kHz |
| Harmonic Measurement | 1–20. derece; 1–6: ±(3.5%+10); 7–8: ±(4.5%+10); 9–10: ±(5%+10); 11–15: ±(7%+10); 16–20: ±(10%+10); çözünürlük 0.1%; genlik doğruluğu ±(2%+9); THDF ve THDR gösterimi |
| Low-Pass Filter | Var (3 mA: ±(3%+9); 30 mA–60 A: ±(3%+9), 40–60 Hz) |
| Measurement Position Error | İletken çene merkezinde değilse okumanın ±1%'i |
| Display Count | 3000 |
| Sampling Rate | 2 ölçüm/s |
| MIN/MAX | Available |
| Backlight | Var (beyaz) |
| Flashlight | Available |
| Bluetooth | Available |
| Mobile App | UNI-T Smart Measure (iOS 10.0 ve üzeri, Android 5.0 ve üzeri) |
| Safety Category | CAT III 600 V |
| Pollution Degree | 2 |
| Standards | IEC/EN 61010-1; IEC 61010-2-032; EN 61326-1; EN 61326-2-2; UL 61010-1; CSA C22.2 No. 61010-1 |
| Certifications | CE, ETL, RED, FCC |
| Operating Temperature | 0–40 °C |
| Storage Temperature | -10–60 °C |
| Operating Humidity | ≤75% (0–30 °C); ≤50% (30–40 °C) |
| Operating Altitude | ≤2000 m |
| Color | Grey ve kırmızı |
| Accuracy Environment | 18–28 °C (sıcaklık değişimi ±1 °C içinde); ≤75% bağıl nem; doğruluk garantisi 1 yıl, önerilen kalibrasyon aralığı 1 yıl |
| Temperature Coefficient | 18–28 °C dışında 0.1 × (belirtilen doğruluk) / °C ek hata |
| External Magnetic Field Limit | ≤100 A/m (50 Hz ve 60 Hz, IEC 61000-4-8) |
