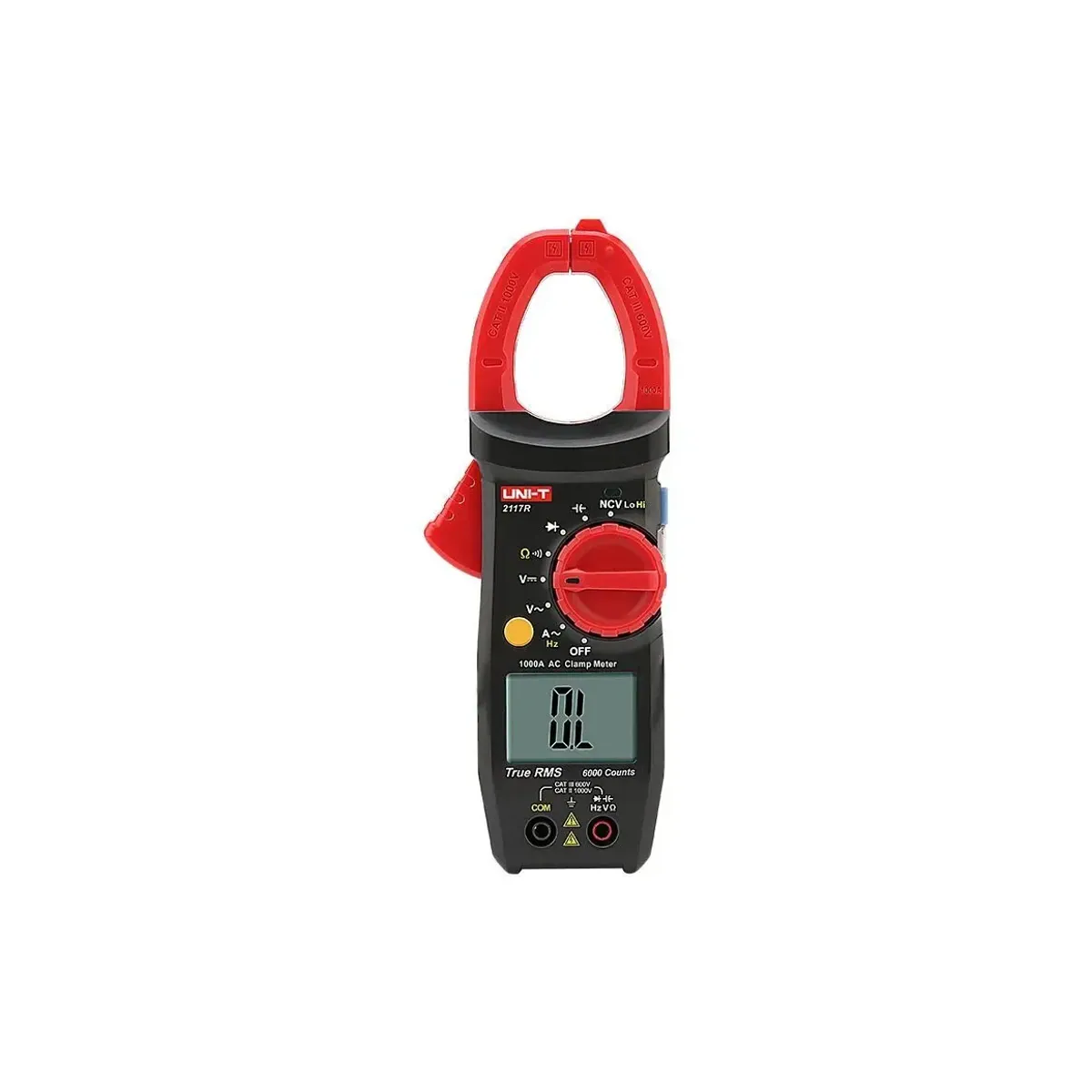

Unit UT2117R True RMS 1000A AC Clamp Meter
- Brand: Unit
- SKU: UT2117R
- MPN: UT2117R
- Price: 2055.68 TRY + VAT · incl. VAT 2466.82 TRY
- Availability: Made to order
- Clamp Meters
- Unit Clamp Meters
- Selection guide: Clamp Meters Selection Guide
Unit UT2117R True RMS 1000A AC Clamp Meter. AC Current Measurement: 1000A (accuracy: ±(1.5%+4)). AC Voltage Measurement: 1000V (accuracy: ±(1.0%+2)). DC Voltage Measurement: 1000V (accuracy: ±(0.7%+3)). Display Count: 6000. AC Frequency Measurement: 20Hz-10kHz (accuracy: ±(1.0%+5)). Resistance Measurement: 60MΩ (accuracy: ±(0.8%+2)). Capacitance Measurement: 6mF (accuracy: ±(4%+5)). Jaw Opening: 33mm. True RMS: Yes. Range Selection: Yes. Other features: Diode Test: Yes; NCV Non-Contact Voltage Detection: Yes; Data Hold: Yes; Backlight: Yes; Auto Power Off: Approx. 15 minutes; Continuity Test: Yes; Low Battery Indication: Approx. ≤2.5V; Input Protection: Yes.
| AC Current Measurement | 1000A (doğruluk: ±(1.5%+4)) |
|---|---|
| AC Frequency Measurement | 20Hz-10kHz (doğruluk: ±(1.0%+5)) |
| AC Voltage Measurement | 1000V (doğruluk: ±(1.0%+2)) |
| Backlight | Available |
| Gram | 210 g |
| DC Voltage Measurement | 1000V (doğruluk: ±(0.7%+3)) |
| Resistance Measurement | 60MΩ (doğruluk: ±(0.8%+2)) |
| Diode Test | Available |
| Low Battery Indication | ≤2.5V yaklaşık |
| Display Count | 6000 |
| Input Protection | Available |
| Safety Category | CAT II 1000 V / CAT III 600 V |
| Power Source | AAA 1.5V x 2 |
| Range Selection | Available |
| Capacitance Measurement | 6mF (doğruluk: ±(4%+5)) |
| NCV Non-Contact Voltage Detection | Available |
| Auto Power Off | Yaklaşık 15 dakika |
| Continuity Test | Available |
| True RMS | Available |
| Data Hold | Available |
| Jaw Opening | 33 mm |
| Product Dimensions | 204x63x38 mm |
