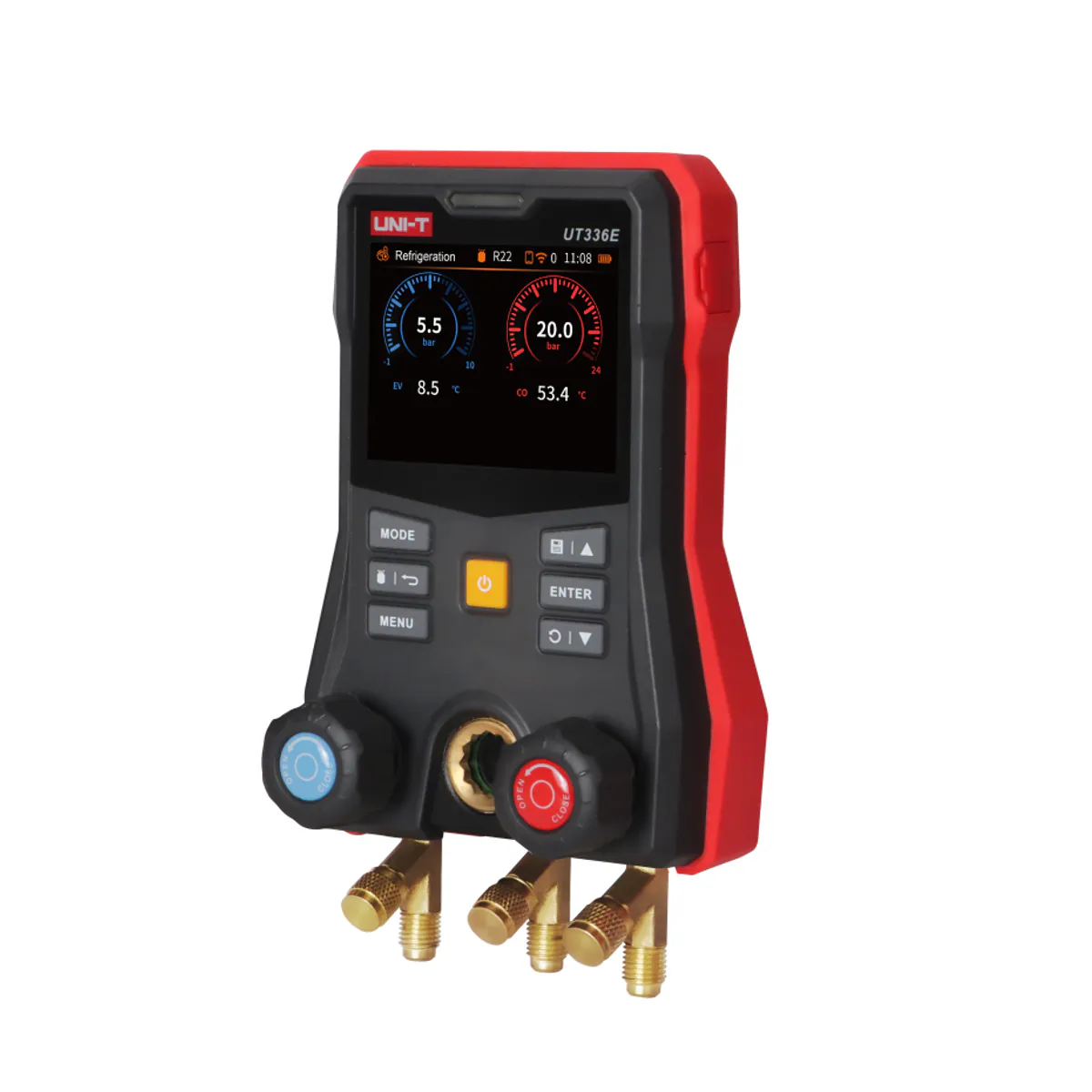

Unit UT336E -1–60 bar Digital Manifold Gauge with 3.5-inch Colour Display
- Brand: Unit
- SKU: UT336E
- MPN: UT336E
- Price: 10963.60 TRY + VAT · incl. VAT 13156.32 TRY
- Availability: Made to order
- Manometers
- Selection guide: Environmental Measuring Instruments Selection Guide: Technical Criteria and Engineering Practice
Unit UT336E is a digital manifold gauge by UNI-T designed to measure high and low side pressure during installation, commissioning and maintenance of refrigeration and heat pump systems. The pressure range is -1.00 to +60.00 bar (0.01 bar resolution) with an accuracy of ±0.5% FS, and seven pressure units can be selected. Used with wireless temperature clamps, it measures the high and low pressure line temperatures and automatically calculates superheat and subcooling; it detects refrigeration/heat pump mode automatically and provides evacuation and pressure holding modes. It has a 162+ refrigerant database, 10,000 records, a 100 m wireless range, mobile app connection, a 3.5″ HD colour screen, IP54 protection, a metal hook and a built-in 5200 mAh lithium battery (more than 30 hours of operation); it has three 1/4″ SAE ports. The weight is about 836 g. UT320i wireless temperature clamps and the UT336V wireless vacuum gauge can be connected to it.
| Accuracy | Basınç: ±0.5% FS |
|---|---|
| Drop Resistance | 2 m |
| Display | 3.5″ HD renkli ekran; dokunarak uyandırılan arka ışık; otomatik ekran kapanma |
| Power Source | Dahili şarj edilebilir lityum pil 3.7 V 5200 mAh |
| Auto Power Off | Available |
| Certifications | CE, RoHS |
| Standard Accessories | Dijital manifold manometre, kullanım kılavuzu, güvenlik kılavuzu, USB-C şarj kablosu, alet kutusu |
| Operating Environment | -20–50 °C, <90% RH (yoğuşmasız) |
| Range / Resolution | -1.00–+60.00 bar (0.01 bar); -100–+6000 kPa (1 kPa); -0.100–+6.000 MPa (0.001 MPa); -14.5–+870.2 psi (0.1 psi); -1.02–+61.18 kg/cm² (0.01 kg/cm²); -75.0–4500 cmHg (0.1 cmHg); -29.5–1771 inHg (0.1 inHg) |
| Measurement Units | Basınç: bar, kPa, MPa, psi, kg/cm², cmHg, inHg; sıcaklık: °C, °F |
| Product Dimensions | 203 mm × 117 mm × 70 mm |
| Refrigerant Type | 162+ (cihazda yerleşik 160+ veri tabanı) |
| Evaporation/Condensation Temperature | Available |
| High/Low Pressure Measurement | Available |
| Alarm | Sarı LED / buzzer alarmı |
| Data Logging | 10,000 kayıt |
| Reset Type | Var (basınç sıfırlama) |
| Mobile App | Available |
| Firmware update | Var (OTA) |
| Battery Life | >30 saat (arka ışık %50, kablosuz bağlantı kapalı) |
| IP Rating | IP54 |
| Connection | 3 × 1/4″ SAE |
| Gram | Yaklaşık 836 g |
| Superheat/Subcooling Calculation | Var (kablosuz sıcaklık kelepçeleriyle otomatik hesaplanır) |
| Operating Mode | Soğutma/ısı pompası modu (otomatik algılama); vakumlama modu; basınç tutma modu |
| Temperature Compensation | Available |
| Range | 100 m |
| Languages | EN, FR, DE, IT, ES, SV, PL, CZ, CN |
| Compatible Models | UT320i kablosuz sıcaklık kelepçesi ve UT336V kablosuz vakum göstergesi (kablosuz bağlantı) |
