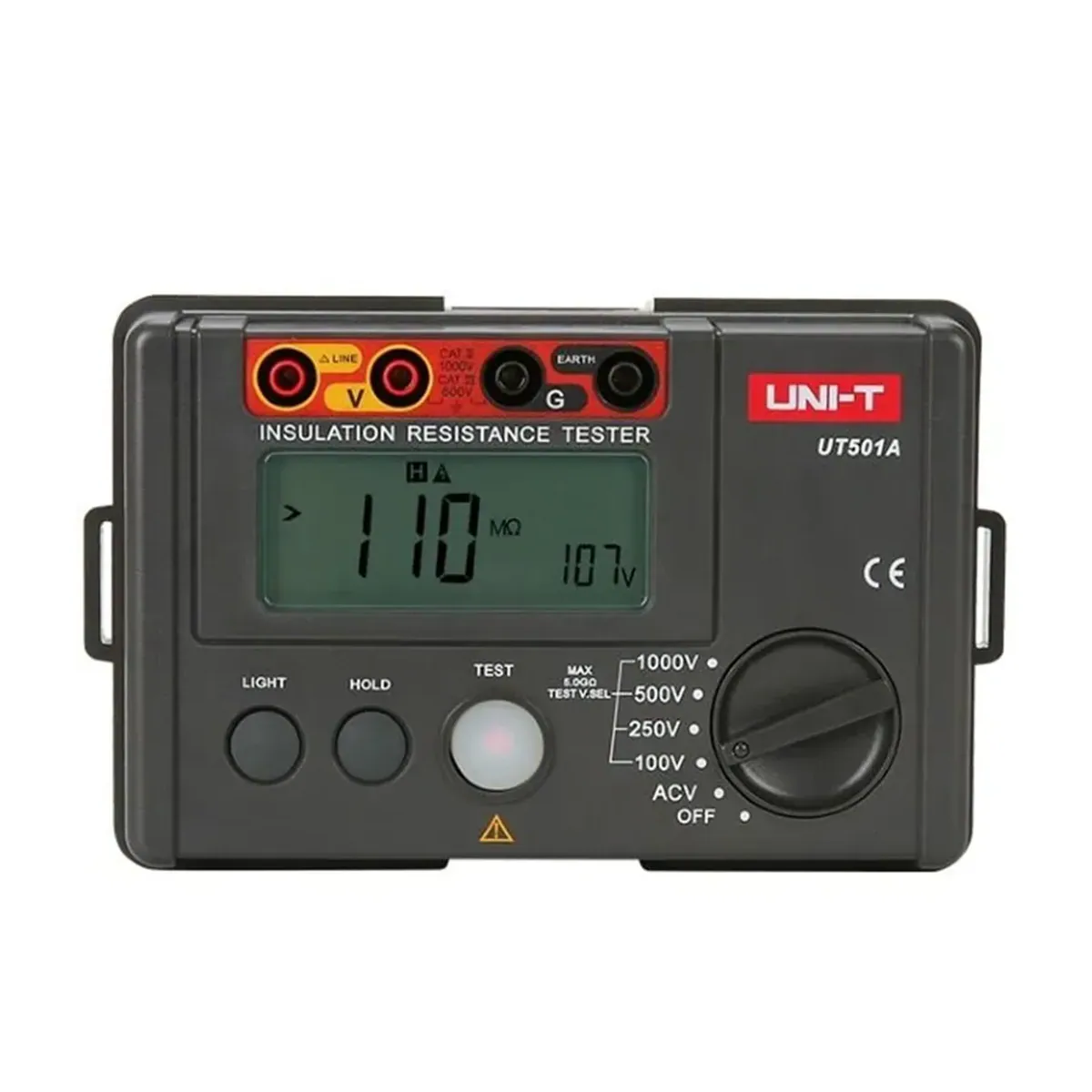

Unit UT501A Digital Insulation Megohmmeter
- Brand: Unit
- SKU: UT501A
- MPN: UT501A
- Price: 3426.13 TRY + VAT · incl. VAT 4111.36 TRY
- Availability: In stock
- Insulation Resistance Testers
- Selection guide: Insulation Resistance Testers Selection Guide: Technical Criteria & Application Standards
Unit UT501A Digital Insulation Megohmmeter is an insulation resistance tester model from the UNI-T UT500 series. It has a 2000-count display. Measurement functions: AC voltage (30 V – 750 V), insulation resistance. Test voltages: 100 V / 250 V / 500 V / 1000 V · output tolerance 0% – 10%. Short-circuit current <2 mA. Other features: secondary test voltage display, 10 MΩ internal resistance test, auto range, low battery indicator, backlight, visual alarm, audible alarm, high voltage indicator, overload indicator, automatic discharge. Power source: 6 × 1.5 V battery (LR6). Box contents: batteries, test probes, alligator clips, hanging strap.
| AC Voltage Measurement | 30 V – 750 V · ±(%2+3) |
|---|---|
| Backlight and Light Alarm | Available |
| Gram | 500 g |
| Overload and Automatic Discharge | Available |
| Internal Resistance Test | Available |
| Additional Functions | Test gerilimi ikincil göstergesi, 10 MΩ iç direnç testi, otomatik kademe, düşük pil göstergesi, arka ışık, ışıklı alarm, sesli alarm, yüksek gerilim göstergesi, aşırı load göstergesi, otomatik deşarj |
| Display Size | 70,6 mm × 34 mm |
| Display Count | 2000 |
| Power Source | 6 × 1,5 V pil (LR6) |
| Short-circuit Current | <2 mA |
| Auto Range and Low Battery Warning | Available |
| Audible Alarm and High Voltage Indicator | Available |
| Standard Accessories | Piller, test probları, timsah klipsler, askı kayışı |
| Standards | IEC 61557-1:2007, IEC 61557-2:2007 |
| Test Voltage | 100V/250V/500V/1000V; tolerans 0%~10% |
| Test Voltage Secondary Display | Available |
| Test Voltages | 100 V / 250 V / 500 V / 1000 V · çıkış toleransı %0 – %10 |
| Output Voltage Under Load | 1 mA yükte %0 – %10 |
| Product Dimensions | 150 mm × 100 mm × 71 mm |
| Insulation Resistance (1000V) | 0MΩ~99.9MΩ; doğruluk ±(3%+5); 100MΩ~5GΩ; doğruluk ±(5%+5) |
| Insulation Resistance (100V) | 0MΩ~100MΩ; doğruluk ±(3%+5) |
| Insulation Resistance (250V) | 0MΩ~99.9MΩ; doğruluk ±(3%+5); 100MΩ~5GΩ; doğruluk ±(5%+5) |
| Insulation Resistance (500V) | 0MΩ~99.9MΩ; doğruluk ±(3%+5); 100MΩ~5GΩ; doğruluk ±(5%+5) |
| Insulation Resistance Measurement | 100 V: 0 MΩ – 100 MΩ ±(%3+5); 250 V: 0 MΩ – 99,9 MΩ ±(%3+5), 100 MΩ – 5 GΩ ±(%5+5); 500 V: 0 MΩ – 99,9 MΩ ±(%3+5), 100 MΩ – 5 GΩ ±(%5+5); 1000 V: 0 MΩ – 99,9 MΩ ±(%3+5), 100 MΩ – 5 GΩ ±(%5+5) |
