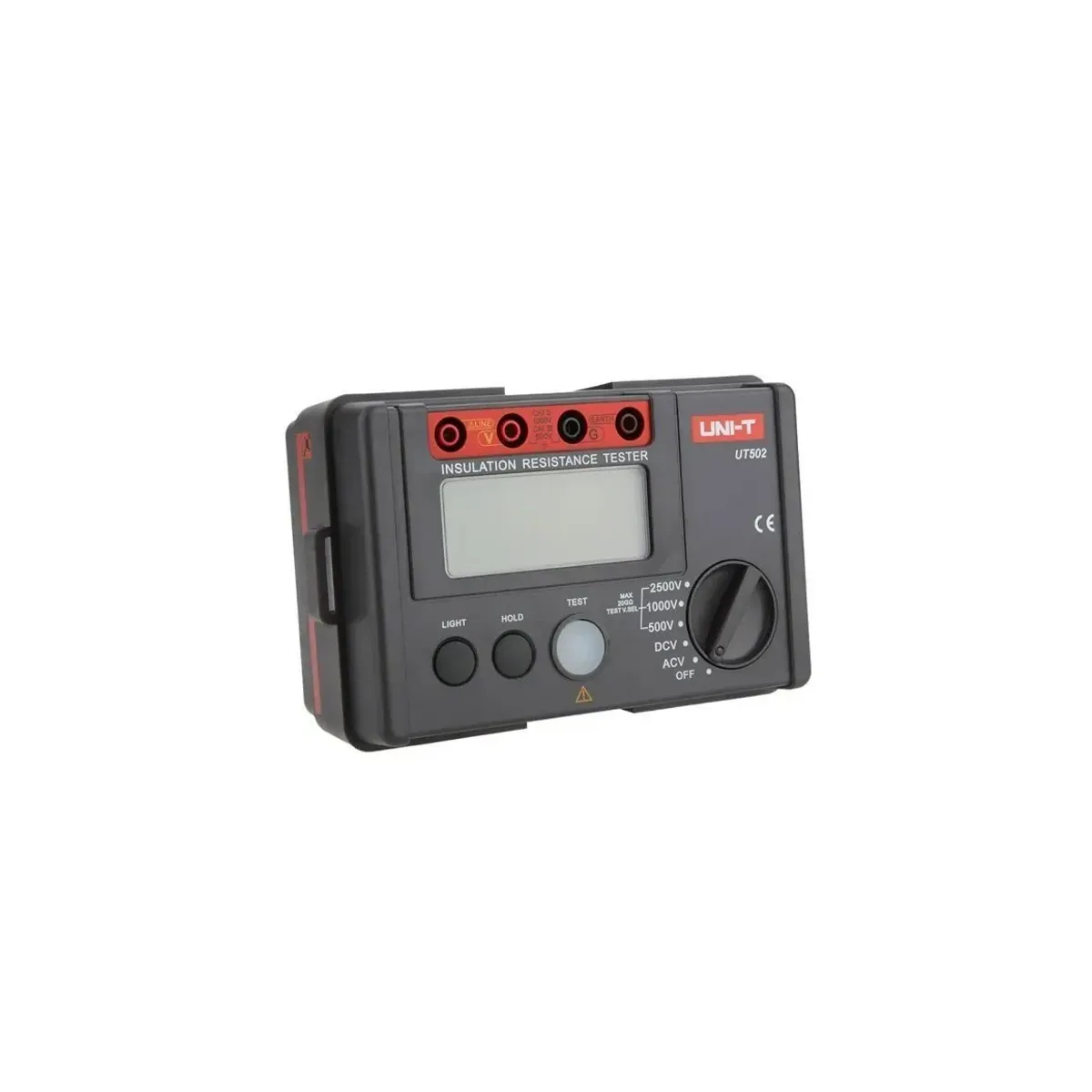

Unit UT502A Insulation Megger
- Brand: Unit
- SKU: UT502A
- MPN: UT502A
- Price: 5573.17 TRY + VAT · incl. VAT 6687.80 TRY
- Availability: In stock
- Insulation Resistance Testers
- Selection guide: Insulation Resistance Testers Selection Guide: Technical Criteria & Application Standards
Unit UT502A Insulation Megger is an insulation resistance tester model from the UNI-T UT500 series. It has a 2000-count display. Measurement functions: AC voltage (30 V – 600 V), insulation resistance, low resistance (continuity) (0.01 Ω – 200 Ω (approx. 5.0 V / >200 mA)). Test Voltages: 500 V / 1000 V / 2500 V · output tolerance 0% – 10%. Short-circuit current <2 mA. Other features: PI (polarization index), secondary test voltage display, 10 MΩ internal resistance test, auto range, low battery indicator, backlight, visual alarm, audible alarm, high voltage indicator, overload indicator, automatic discharge, DAR (dielectric absorption ratio, 60 s / 15 s and 60 s / 30 s). Power source: 6 × 1.5 V battery (LR6). Box contents: batteries, test probes, alligator clips, hanging strap.
| AC Voltage Measurement | 30 V – 600 V · ±(%2+3) |
|---|---|
| Backlight and Light Alarm | Available |
| Gram | 500 g |
| Overload and Automatic Discharge | Available |
| DAR Test | 60s/15s ve 60s/30s |
| Internal Resistance Test | Available |
| Low Resistance (Continuity) Measurement | 0,01 Ω – 200 Ω (yaklaşık 5,0 V / >200 mA) · ±(%2+3) |
| Low Resistance Measurement | 0.01Ω~200Ω (yaklaşık 5.0V/>200mA) (doğruluk: ±(2%+3)) |
| Additional Functions | PI (polarizasyon indeksi), test gerilimi ikincil göstergesi, 10 MΩ iç direnç testi, otomatik kademe, düşük pil göstergesi, arka ışık, ışıklı alarm, sesli alarm, yüksek gerilim göstergesi, aşırı load göstergesi, otomatik deşarj, DAR (dielektrik absorpsiyon oranı, 60 s / 15 s ve 60 s / 30 s) |
| Display Size | 70,6 mm × 34 mm |
| Display Count | 2000 |
| Power Source | 6 × 1,5 V pil (LR6) |
| Short-circuit Current | <2 mA |
| Auto Range and Low Battery Warning | Available |
| PI Test | Available |
| Audible Alarm and High Voltage Indicator | Available |
| Standard Accessories | Piller, test probları, timsah klipsler, askı kayışı |
| Standards | IEC 61557-1:2007, IEC 61557-2:2007, IEC 61557-4:2007 |
| Test Voltage | 500V/1000V/2500V; tolerans 0%~10% |
| Test Voltage Secondary Display | Available |
| Test Voltages | 500 V / 1000 V / 2500 V · çıkış toleransı %0 – %10 |
| Output Voltage Under Load | 1 mA yükte %0 – %10 |
| Product Dimensions | 150 mm × 100 mm × 71 mm |
| Insulation Resistance (1000V) | 0MΩ~99.9MΩ; doğruluk ±(3%+5); 100MΩ~5GΩ; doğruluk ±(5%+5) |
| Insulation Resistance (2500V) | 0MΩ~99.9MΩ; doğruluk ±(3%+5); 100MΩ~9.9GΩ; doğruluk ±(5%+5); 10GΩ~20GΩ; doğruluk ±(10%+5) |
| Insulation Resistance (500V) | 0MΩ~99.9MΩ; doğruluk ±(3%+5); 100MΩ~5GΩ; doğruluk ±(5%+5) |
| Insulation Resistance Measurement | 500 V: 0 MΩ – 99,9 MΩ ±(%3+5), 100 MΩ – 5 GΩ ±(%5+5); 1000 V: 0 MΩ – 99,9 MΩ ±(%3+5), 100 MΩ – 5 GΩ ±(%5+5); 2500 V: 0 MΩ – 99,9 MΩ ±(%3+5), 100 MΩ – 9,9 GΩ ±(%5+5), 10 GΩ – 20 GΩ ±(%10+5) |
