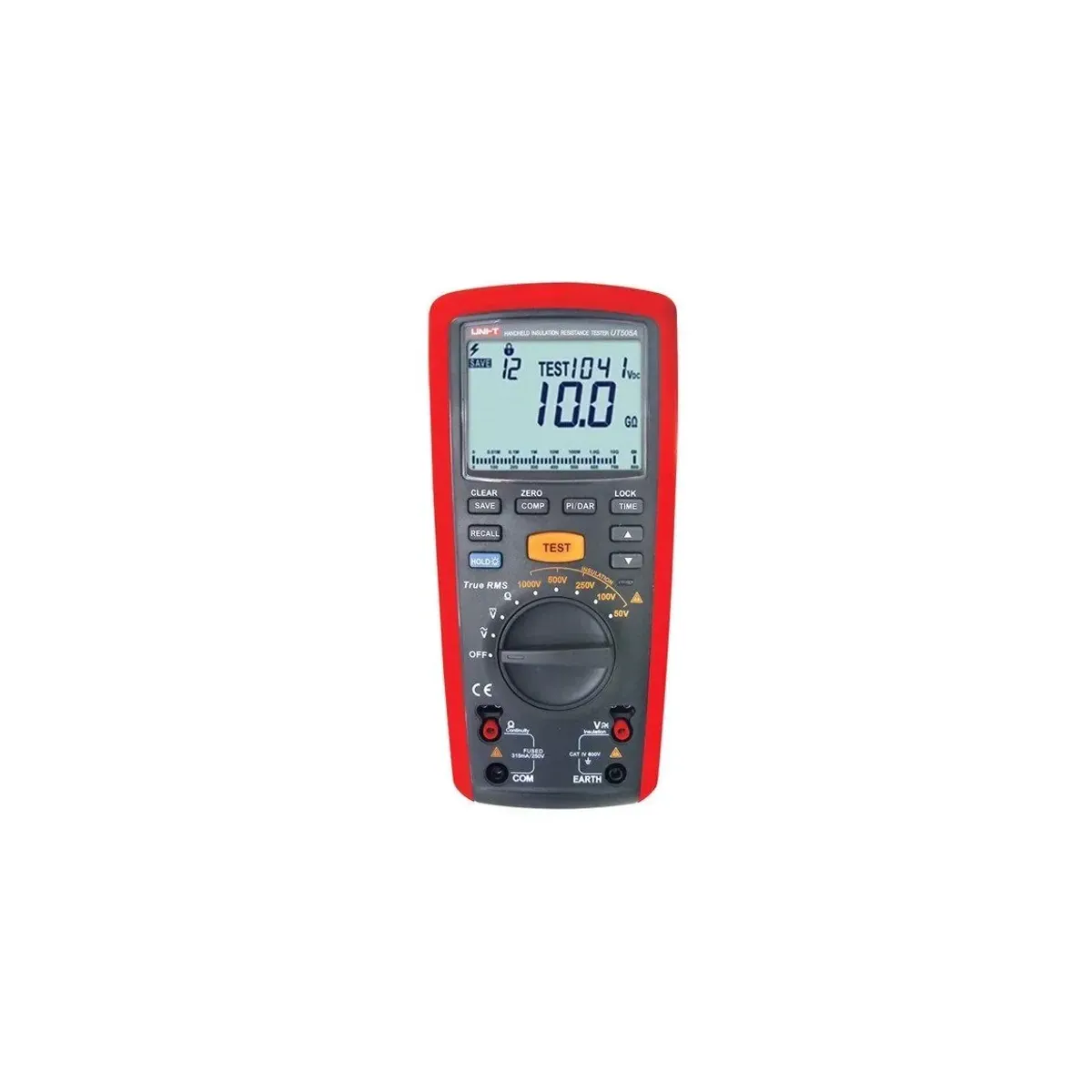

Unit UT505A Multimeter and Insulation Resistance Tester
- Brand: Unit
- SKU: UT505A
- MPN: UT505A
- Price: 9456.11 TRY + VAT · incl. VAT 11347.33 TRY
- Availability: In stock
- Insulation Resistance Testers
- Selection guide: Insulation Resistance Testers Selection Guide: Technical Criteria & Application Standards
Unit UT505A Multimeter and Insulation Resistance Tester. AC Voltage Measurement: 0V~600V (accuracy: ±(2%+3)). DC Voltage Measurement: 0V~600V (accuracy: ±(2%+3)). Insulation Resistance Measurement: 50 V: 0.01–50 MΩ; 100 V: 0.01–100 MΩ; 250 V: 0.01–200 MΩ; 500 V: 0.01–500 MΩ; 1000 V: 0.01 MΩ–20 GΩ. Load Current: 1 mA; tolerance 0%–10. Display Count: 6000. Auto Range and True RMS: Yes. Voltage Step: 10% steps within 50%–120 of the range. DAR Test: 60s/15s and 60s/30s. PI and Timed Measurement: Yes. Automatic Discharge: Yes. Other features: Analog Bar Graph: Yes; Continuity Test: Yes; Comparative Measurement: Yes; Low Battery Indication: Yes; Power Source: 1.5V battery (LR6) x 6; Display Size: 78mm x 59mm; Weight: 630g; Product Dimensions: 103mm x 225mm x 59mm.
| AC Voltage Measurement | 0V~600V (doğruluk: ±(2%+3)) |
|---|---|
| Analog Bar Graph | Available |
| Gram | 630 g |
| DAR Test | 60s/15s ve 60s/30s |
| DC Voltage Measurement | 0V~600V (doğruluk: ±(2%+3)) |
| Low Resistance Measurement | 20.00 kΩ; çözünürlük 0.01 Ω; doğruluk ±(%1.5+3) |
| Low Battery Indication | Available |
| Display Size | 78mm x 59mm |
| Display Count | 6000 |
| Voltage Step | Aralığın %50–120’sinde %10 adımlar |
| Voltage Resolution | AC/DC 0.1 V |
| Power Source | 1.5V pil (LR6) x 6 |
| Comparative Measurement | Available |
| Short-circuit Current | <2 mA |
| Automatic Discharge | Available |
| Auto Range and True RMS | Available |
| PI and Timed Measurement | Available |
| Continuity Test | Available |
| Test Voltages | 50 / 100 / 250 / 500 / 1000 V; %10 adımlarla nominalin %50–120 aralığı |
| Load Current | 1 mA; tolerans %0–10 |
| Product Dimensions | 103mm x 225mm x 59mm |
| Insulation Resistance Measurement | 50 V: 0.01–50 MΩ; 100 V: 0.01–100 MΩ; 250 V: 0.01–200 MΩ; 500 V: 0.01–500 MΩ; 1000 V: 0.01 MΩ–20 GΩ |
| Insulation Measurement Accuracy | 50/100 V: ±(%3+5); 250/500 V ve 1000 V altında 2000 MΩ’a kadar: ±(%1.5+5); 2–10 GΩ: ±(%10+3); 10–20 GΩ: ±(%20+10) |
