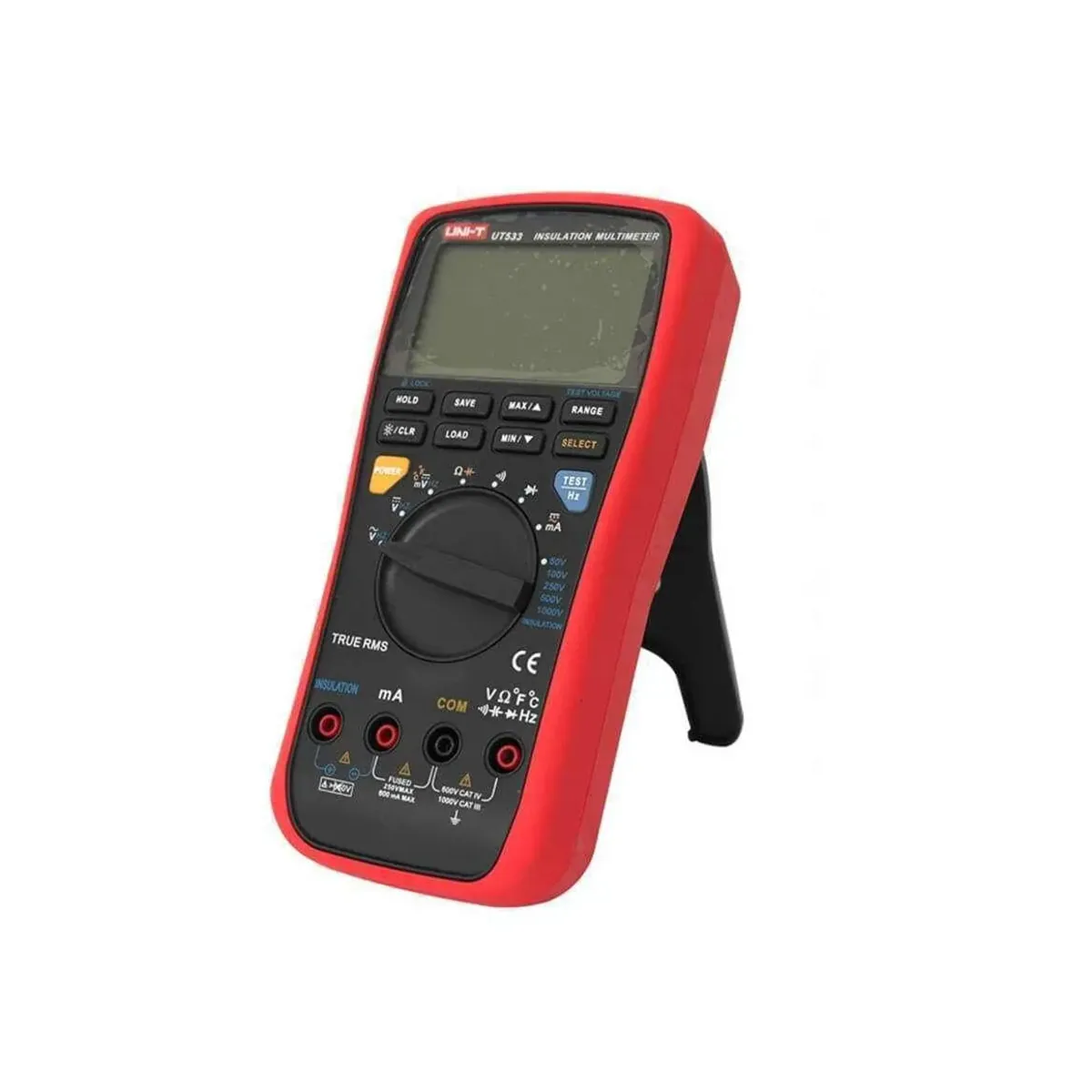

Unit UT533 Insulation Resistance Tester
- Brand: Unit
- SKU: UT533
- MPN: UT533
- Price: 10187.02 TRY + VAT · incl. VAT 12224.42 TRY
- Availability: In stock
- Insulation Resistance Testers
- Selection guide: Insulation Resistance Testers Selection Guide: Technical Criteria & Application Standards
Unit UT533 Insulation Resistance Tester is an insulation resistance tester model manufactured by UNI-T. It has a 5999-count display. Measurement functions: DC voltage (6 mV – 1000 V), AC voltage (6 V – 1000 V), DC current (60 mA – 600 mA), AC current (60 mA – 600 mA), resistance (600 Ω – 40 MΩ), capacitance (10 nF – 100 µF), frequency (60 Hz – 1 MHz), temperature (−40 °C – 537 °C), insulation resistance. Other features: diode and continuity test, dual display, backlight, MAX/MIN, low battery indicator, auto power off, data hold. Safety category CAT III 1000 V, CAT IV 600 V. Power source: 6 × 1.5 V battery (LR6). Box contents: test probes, battery, alligator clip, K-type temperature probe.
| AC Current Measurement | 60 mA – 600 mA · ±(%1,5+2) |
|---|---|
| AC Voltage Measurement | 6 V – 1000 V · ±(%2+3) |
| Backlight | Available |
| Gram | 505 g |
| DC Current Measurement | 60 mA – 600 mA · ±(%1,0+2) |
| DC Voltage Measurement | 6 mV – 1000 V · ±(%0,3+4) |
| Resistance Measurement | 600 Ω – 40 MΩ · ±(%1,5+3) |
| Diode and Continuity Test | Available |
| Low Battery Indication | Available |
| Additional Functions | Diyot ve süreklilik testi, çift ekran, arka ışık, MAX/MIN, düşük pil göstergesi, otomatik kapanma, veri tutma |
| Display Size | 81 × 46 mm |
| Display Count | 5999 |
| Frequency Measurement | 60 Hz – 1 MHz · ±(%0,1+3) |
| Safety Category | CAT III 1000 V, CAT IV 600 V |
| Power Source | 6 × 1,5 V pil (LR6) |
| Range Selection | Otomatik / Manuel |
| Capacitance Measurement | 10 nF – 100 µF · ±(%3+5) |
| MIN/MAX | Available |
| Auto Power Off | Available |
| Certifications | CE, RoHS |
| Standard Accessories | Test probları, pil, timsah klips, K tipi sıcaklık probu |
| Temperature Measurement | −40 °C – 537 °C · ±(%1+10) |
| Data Hold | Available |
| Dual Display | Available |
| Product Dimensions | 96,7 × 202,8 × 46 mm |
| Insulation Resistance Measurement | 0,1 MΩ – 2 GΩ · ±(%5+5) |
