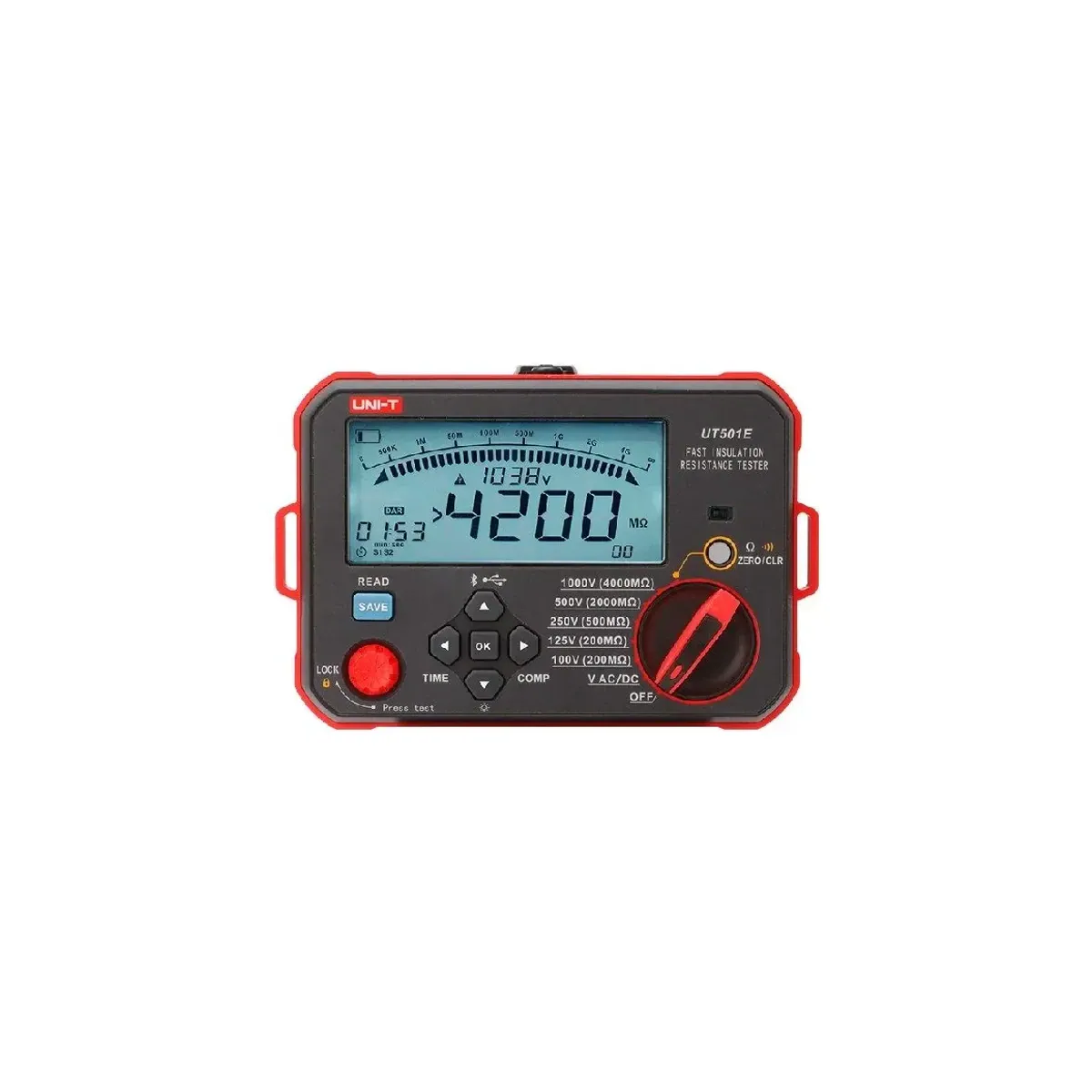

Unit UT501E Rapid Insulation Tester
- Brand: Unit
- SKU: UT501E
- MPN: UT501E
- Price: 10187.02 TRY + VAT · incl. VAT 12224.42 TRY
- Availability: In stock
- Insulation Resistance Testers
- Selection guide: Insulation Resistance Testers Selection Guide: Technical Criteria & Application Standards
Unit UT501E Rapid Insulation Tester. AC Voltage Measurement: 30V~600V; 50Hz/60Hz (accuracy: ±(2%+3)). DC Voltage Measurement: 30V~600V (accuracy: ±(2%+3)). Insulation Resistance Measurement: 100/125 V: 0.10–200 MΩ; 250 V: 0.20–500 MΩ; 500 V: 0.5–2000 MΩ; 1000 V: 1–4000 MΩ. Load Current: 1.0mA. Low Resistance Measurement: 0.00Ω~400Ω (accuracy: ±(2%+8)). Short-circuit Current: <2.0mA. DAR Test: Yes. PI Test: Yes. Comparative Measurement: Yes. Automatic Discharge: Yes. Other features: High Voltage Alarm: Yes; Manual Insulation Range: Yes; Auto Range: Yes; Memory: 99 records; Overload Indication: OL; Test Lock: Yes; Remote Test: Yes; Analog Bar Graph: Yes.
| AC Voltage Measurement | 30V~600V; 50Hz/60Hz (doğruluk: ±(2%+3)) |
|---|---|
| Analog Bar Graph | Available |
| Overload Indication | OL |
| DAR Test | Available |
| DC Voltage Measurement | 30V~600V (doğruluk: ±(2%+3)) |
| Low Resistance Measurement | 0.00Ω~400Ω (doğruluk: ±(2%+8)) |
| Additional Functions | Arka ışık, otomatik kapanma ve düşük pil uyarısı |
| Safety Category | CAT III 600 V |
| Power Source | 11.1V/2600mAh lityum pil |
| Memory | 99 kayıt |
| IP Rating | IP54 |
| Comparative Measurement | Available |
| Short-circuit Current | <2.0mA |
| Manual Insulation Range | Available |
| Automatic Discharge | Available |
| Auto Range | Available |
| PI Test | Available |
| Test Voltages | 100 / 125 / 250 / 500 / 1000 V |
| Test Lock | Available |
| Remote Test | Available |
| Load Current | 1 mA |
| High Voltage Alarm | Available |
| Product Dimensions | 161 * 116 * 68mm |
| Insulation Resistance Measurement | 100/125 V: 0.10–200 MΩ; 250 V: 0.20–500 MΩ; 500 V: 0.5–2000 MΩ; 1000 V: 1–4000 MΩ |
