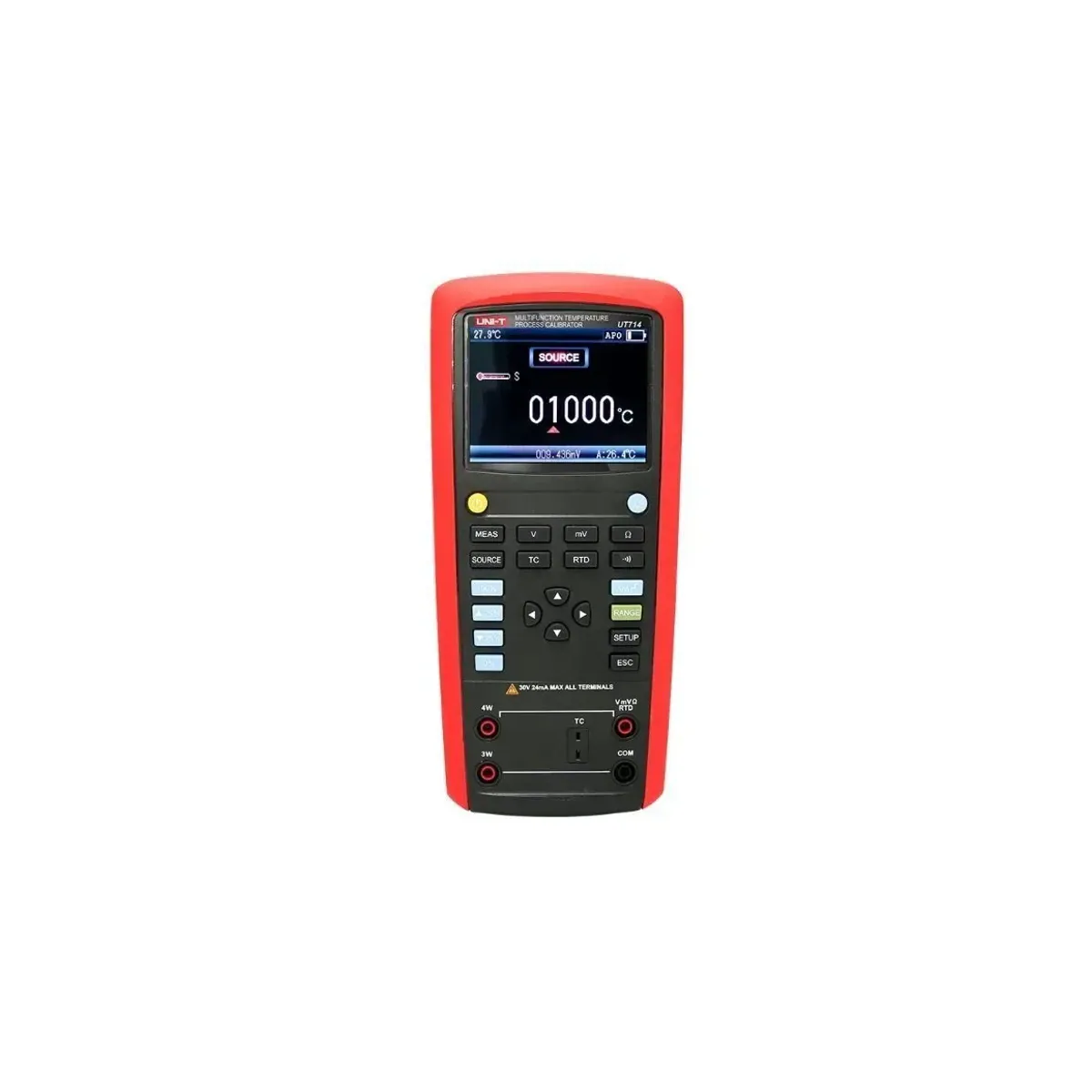

Unit UT714 Multifunction Temperature Process Calibrator
- Brand: Unit
- SKU: UT714
- MPN: UT714
- Price: 34718.08 TRY + VAT · incl. VAT 41661.70 TRY
- Availability: In stock
- Process Calibrators
- Selection guide: Measuring Instruments Selection Guide
Unit UT714 Multifunction Temperature Process Calibrator. DC Voltage Measurement: 50mV/500mV/30V (accuracy: ±(0.02%+2)). Display Count: 20000. Resistance Measurement: 500Ω/5000Ω (accuracy: ±(0.05%+10)). Thermocouple Types: R,S,K,E,J,T,N,B,L,U. RTD Types: Pt100/Pt200/Pt500/Pt1000/Cu10/Cu50/Cu100/Pt100-392/Pt100-JIS/Ni120. Continuity Test: Yes. DC Voltage Output: 100mV/1000mV/10V (accuracy: ±(0.02%+10)). Resistance Output: 400Ω/4000Ω (accuracy: ±(0.05%+10)). Thermocouple Simulation: R,S,K,E,J,T,N,B,L,U. RTD Simulation: Pt100-385/Pt100-392/Pt100-JIS/Pt200-385/P500-385/Pt1000-385/Cu10/Cu50/Cu100/Ni120. Other features: Operating Temperature: -10°C~55°C; Power Source: 1.2V x 6 AA rechargeable battery; Weight: 650g; Product Dimensions: 195mm x 95mm x 58mm.
| Gram | 650 g |
|---|---|
| DC Voltage Output | 100mV/1000mV/10V (doğruluk: ±(0.02%+10)) |
| DC Voltage Measurement | 50mV/500mV/30V (doğruluk: ±(0.02%+2)) |
| Resistance Output | 400Ω/4000Ω (doğruluk: ±(0.05%+10)) |
| Resistance Measurement | 500Ω/5000Ω (doğruluk: ±(0.05%+10)) |
| Display Count | 20000 |
| Power Source | 1.2V x 6 AA şarj edilebilir pil |
| RTD Simulation | Pt100-385/Pt100-392/Pt100-JIS/Pt200-385/P500-385/Pt1000-385/Cu10/Cu50/Cu100/Ni120 |
| RTD Types | Pt100/Pt200/Pt500/Pt1000/Cu10/Cu50/Cu100/Pt100-392/Pt100-JIS/Ni120 |
| Continuity Test | Available |
| Thermocouple Simulation | R,S,K,E,J,T,N,B,L,U |
| Thermocouple Types | R,S,K,E,J,T,N,B,L,U |
| Operating Temperature | -10°C~55°C |
| Product Dimensions | 195mm x 95mm x 58mm |
