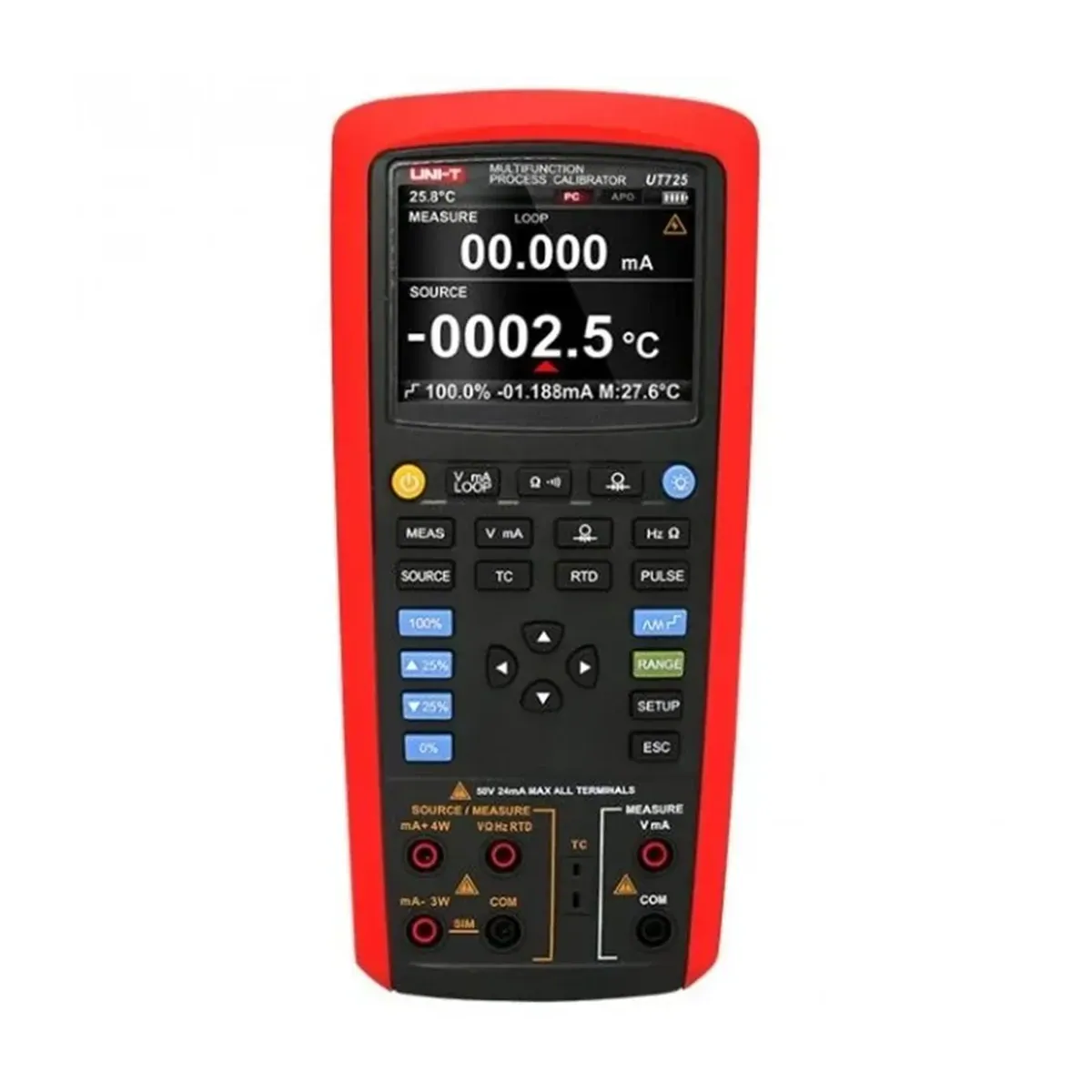

Unit UT725 Multifunction Process Calibrator
- Brand: Unit
- SKU: UT725
- MPN: UT725
- Price: 89764.50 TRY + VAT · incl. VAT 107717.40 TRY
- Availability: In stock
- Process Calibrators
- Selection guide: Measuring Instruments Selection Guide
Unit UT725 Multifunction Process Calibrator. DC Current Measurement: 20mA (accuracy: ±(0.02%+2)). DC Voltage Measurement: 50mV/500mV/50V (accuracy: ±(0.02%+2)). Display Count: 20000. Loop Current Measurement: 20mA (accuracy: ±(0.02%+2)). Resistance Measurement: 500Ω/5000Ω (accuracy: ±(0.05%+10)). Frequency Measurement: 100Hz/1kHz/10kHz/100kHz (accuracy: ±(0.01%+1)). Thermocouple Types: R,S,K,E,J,T,N,B,L,U,XK,BP. RTD Types: Pt100/Pt200/Pt500/Pt1000/Cu10/Cu50/Cu100/Pt100-392/Pt100-JIS/Ni120. Continuity Test: Yes. Pulse Frequency Measurement: 1~15kHz (1~100000 periods). Other features: DC Voltage Output: 100mV/1000mV/10V (accuracy: ±(0.02%+10)); DC Current Output: 20mA/20mA(SIM) (accuracy: ±(0.02%+2)); Resistance Output: 400Ω/4000Ω/40kΩ (accuracy: ±(0.05%+10)); Frequency Output: 200Hz/2000Hz/20kHz/100kHz (accuracy: ±(0.01%+1)); Pulse Frequency Output: 100Hz/1kHz/10kHz (accuracy: ±1); Thermocouple Simulation: R,S,K,E,J,T,N,B,L,U,XK,BP; RTD Simulation: Pt100-385/Pt100-392/Pt100-JIS/Pt200-385/P500-385/Pt1000-385/Cu10/Cu50/Cu100/Ni120; Operating Temperature: -10°C~55°C.
| Gram | 650 g |
|---|---|
| DC Current Output | 20mA/20mA(SIM) (doğruluk: ±(0.02%+2)) |
| DC Current Measurement | 20mA (doğruluk: ±(0.02%+2)) |
| DC Voltage Output | 100mV/1000mV/10V (doğruluk: ±(0.02%+10)) |
| DC Voltage Measurement | 50mV/500mV/50V (doğruluk: ±(0.02%+2)) |
| Pulse Frequency Output | 100Hz/1kHz/10kHz (doğruluk: ±1) |
| Pulse Frequency Measurement | 1~15kHz (1~100000 periyot) |
| Resistance Output | 400Ω/4000Ω/40kΩ (doğruluk: ±(0.05%+10)) |
| Resistance Measurement | 500Ω/5000Ω (doğruluk: ±(0.05%+10)) |
| Loop Current Measurement | 20mA (doğruluk: ±(0.02%+2)) |
| Display Count | 20000 |
| Frequency Output | 200Hz/2000Hz/20kHz/100kHz (doğruluk: ±(0.01%+1)) |
| Frequency Measurement | 100Hz/1kHz/10kHz/100kHz (doğruluk: ±(0.01%+1)) |
| Power Source | 1.2V x 6 AA şarj edilebilir pil |
| RTD Simulation | Pt100-385/Pt100-392/Pt100-JIS/Pt200-385/P500-385/Pt1000-385/Cu10/Cu50/Cu100/Ni120 |
| RTD Types | Pt100/Pt200/Pt500/Pt1000/Cu10/Cu50/Cu100/Pt100-392/Pt100-JIS/Ni120 |
| Continuity Test | Available |
| Thermocouple Simulation | R,S,K,E,J,T,N,B,L,U,XK,BP |
| Thermocouple Types | R,S,K,E,J,T,N,B,L,U,XK,BP |
| Operating Temperature | -10°C~55°C |
| Product Dimensions | 195mm x 95mm x 58mm |
