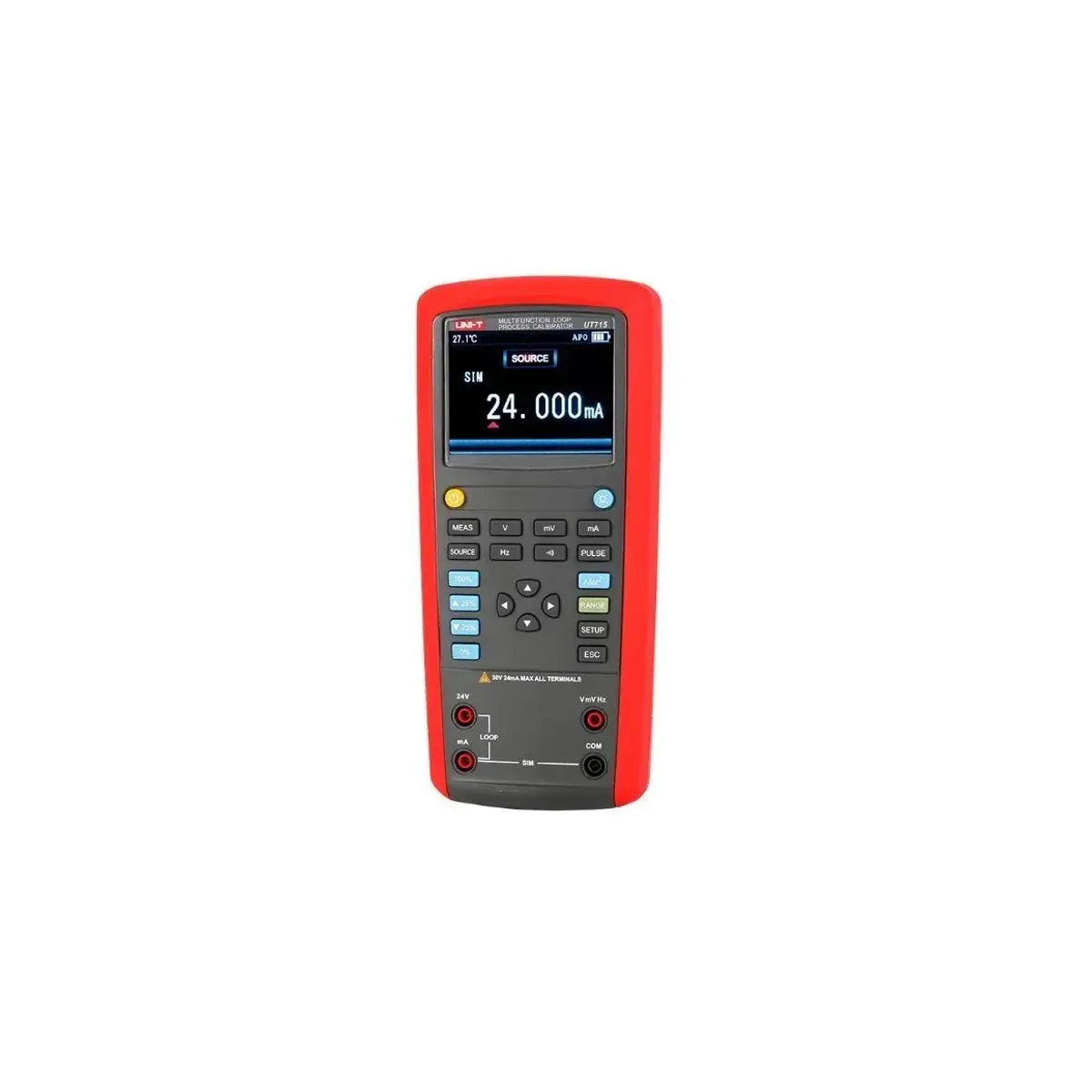

Unit UT715 Multifunction Loop Process Calibrator
- Brand: Unit
- SKU: UT715
- MPN: UT715
- Price: 35631.71 TRY + VAT · incl. VAT 42758.05 TRY
- Availability: In stock
- Process Calibrators
- Selection guide: Measuring Instruments Selection Guide
Unit UT715 Multifunction Loop Process Calibrator. DC Current Measurement: 24mA (accuracy: ±(0.02%+2)). DC Voltage Measurement: 200mV/30V (accuracy: ±(0.02%+2)). Display Count: 20000. Loop Current Measurement: 24mA (accuracy: ±(0.02%+2)). Frequency Measurement: 100Hz/1kHz/10kHz/100kHz (accuracy: ±(0.01%+1)). Continuity Test: Yes. DC Voltage Output: 100mV/1000mV/10V (accuracy: ±(0.02%+10)). DC Current Output: 24mA/20mA (SIM) (accuracy: ±(0.02%+2)). Frequency Output: 200Hz/2000Hz/20kHz (accuracy: ±(0.01%+1)). Pulse Frequency Output: 100Hz/1kHz/10kHz (accuracy: ±1). Other features: Loop Supply: 24V (accuracy: ±10%); Operating Temperature: -10°C~55°C; Power Source: 1.2V x 6 AA rechargeable battery; Weight: 650g; Product Dimensions: 195mm x 95mm x 58mm.
| Gram | 650 g |
|---|---|
| DC Current Output | 24mA/20mA (SIM) (doğruluk: ±(0.02%+2)) |
| DC Current Measurement | 24mA (doğruluk: ±(0.02%+2)) |
| DC Voltage Output | 100mV/1000mV/10V (doğruluk: ±(0.02%+10)) |
| DC Voltage Measurement | 200mV/30V (doğruluk: ±(0.02%+2)) |
| Pulse Frequency Output | 100Hz/1kHz/10kHz (doğruluk: ±1) |
| Loop Current Measurement | 24mA (doğruluk: ±(0.02%+2)) |
| Loop Supply | 24V (doğruluk: ±10%) |
| Display Count | 20000 |
| Frequency Output | 200Hz/2000Hz/20kHz (doğruluk: ±(0.01%+1)) |
| Frequency Measurement | 100Hz/1kHz/10kHz/100kHz (doğruluk: ±(0.01%+1)) |
| Power Source | 1.2V x 6 AA şarj edilebilir pil |
| Continuity Test | Available |
| Operating Temperature | -10°C~55°C |
| Product Dimensions | 195mm x 95mm x 58mm |
