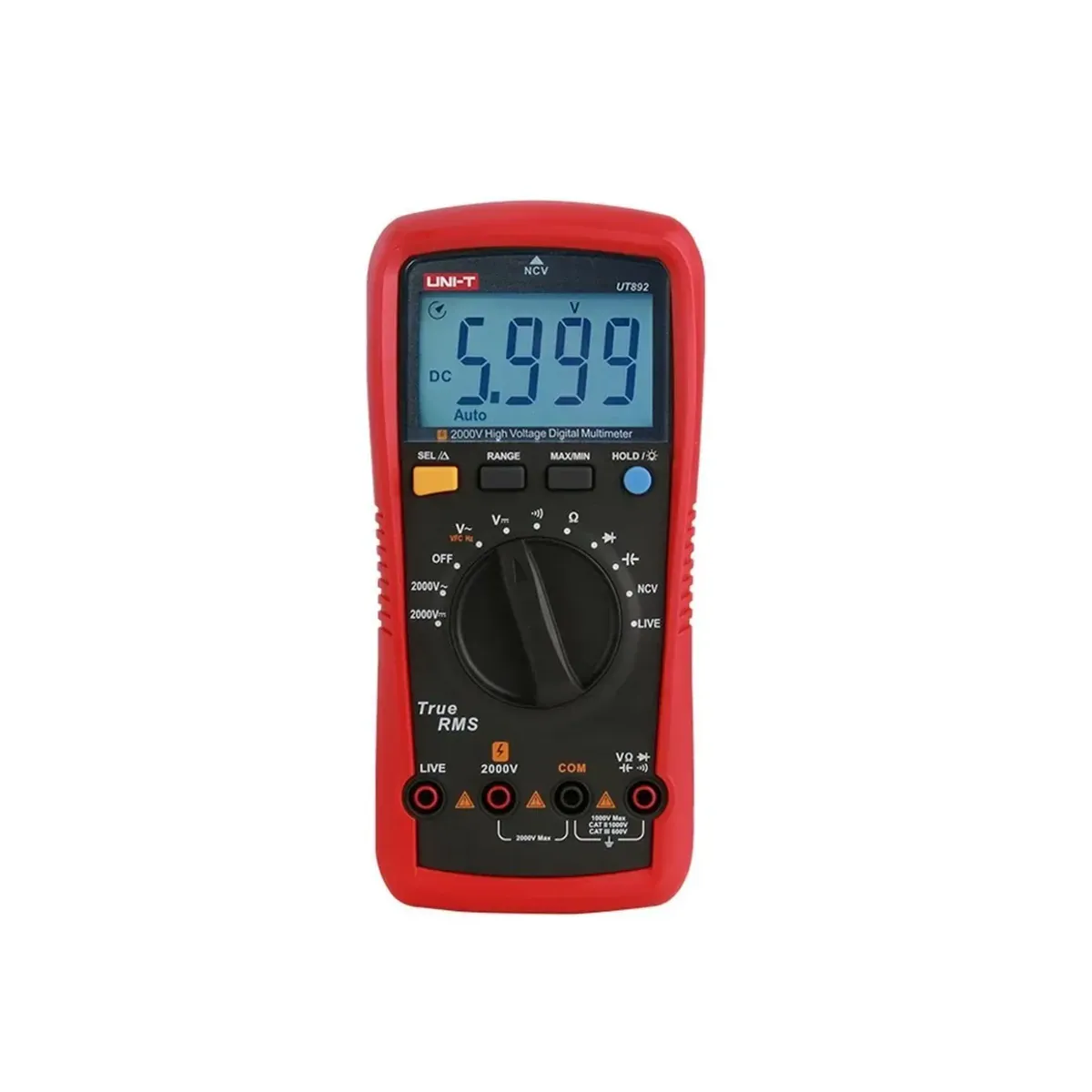

Unit UT892 2000V AC/DC High-Voltage Digital Multimeter
- Brand: Unit
- SKU: UT892
- MPN: UT892
- Price: 1667.38 TRY + VAT · incl. VAT 2000.86 TRY
- Availability: Made to order
- Digital Multimeters (Handheld and Benchtop)
- Unit Digital Multimeters (Handheld and Benchtop)
- Selection guide: Digital Multimeters (Handheld and Benchtop) Selection Guide: Technical Criteria and Engineering Practice
Unit UT892 2000V AC/DC High-Voltage Digital Multimeter, a digital multimeter model manufactured by UNI-T. It has a 6000-count display. Measurement functions: DC voltage (2000 V), AC voltage (2000 V), resistance (60.00 MΩ), capacitance (60.00 nF / 600.0 nF – 600.0 µF / 6000 µF / 60 mF), frequency (600 V). Other features: NCV non-contact voltage detection, live wire detection, diode test, audible continuity test, low battery indicator (approx. ≤ 2.5 V), data hold, MAX/MIN, relative (REL) measurement, auto power off (approx. 15 min), backlight. Safety category CAT II 1000 V / CAT III 600 V. Power source: AA 2 × 1.5 V battery. Box contents: English user manual, test probes, batteries.
| AC Voltage Measurement | 6,000 V / 60,00 V / 600,0 V / 1000 V / 2000 V · ±(%1,0+3) |
|---|---|
| Backlight | Available |
| Gram | 350 g (piller dahil) |
| Relative Measurement | Available |
| DC Voltage Measurement | 6,000 V / 60,00 V / 600,0 V / 1000 V / 2000 V · ±(%0,5+3) |
| Resistance Measurement | 600,0 Ω / 6,000 kΩ / 60,00 kΩ / 6,000 MΩ / 60,00 MΩ · ±(%0,5+5) |
| Diode Test | Available |
| Low Battery Indication | ≤ Yaklaşık 2.5V |
| Additional Functions | NCV temassız gerilim algılama, faz hattı tespiti, diyot testi, sesli süreklilik testi, düşük pil göstergesi (yaklaşık ≤ 2,5 V), veri tutma, MAX/MIN, bağıl (REL) ölçüm, otomatik kapanma (yaklaşık 15 min), arka ışık |
| Display Count | 6000 |
| Phase Detection | Available |
| Frequency Measurement | 600 V · ±(%5); 10 Hz – 10 kHz · ±(%0,5+2) |
| Safety Category | CAT II 1000 V / CAT III 600 V |
| Power Source | AA 2 × 1,5 V pil |
| Range Selection | Otomatik / Manuel |
| Capacitance Measurement | 60,00 nF / 600,0 nF – 600,0 µF / 6000 µF / 60 mF · ±(%3,0+10) |
| MIN/MAX | Available |
| NCV Non-Contact Voltage Detection | Available |
| Auto Power Off | Yaklaşık 15 dakika |
| Standard Accessories | İngilizce kullanım kılavuzu, test probları, piller |
| Continuity Test | Available |
| VFC Voltage Measurement | 600V (doğruluk: ±(5%)) |
| Data Hold | Available |
| Product Dimensions | 187 × 88 × 56 mm |
