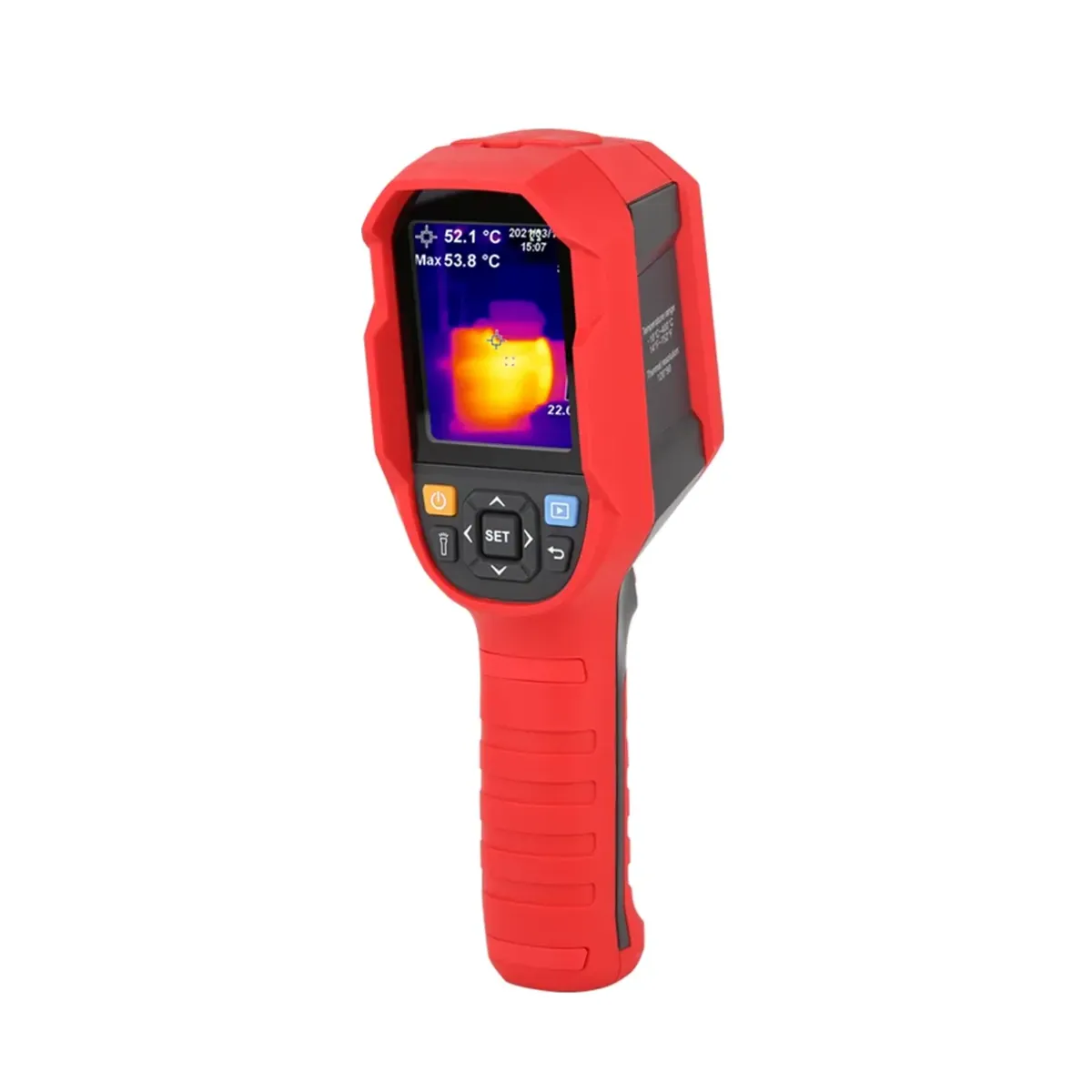

Unit UTi120B Thermal Camera
- Brand: Unit
- SKU: UTI120B
- MPN: UTI120B
- Price: 15988.59 TRY + VAT · incl. VAT 19186.31 TRY
- Availability: Made to order
- Thermal Cameras
- Selection guide: Thermal Cameras Selection Guide: Technical Criteria & Application Standards
Unit UTi120B Thermal Camera. Infrared Resolution: 120×90. Temperature Range: -20°C~400°C. Display Size: 2.8” TFT LCD (320×240). Field of View: 50°×38°. Thermal Sensitivity (NETD): ≤60mK. Spatial Resolution (IFOV): 7.3mrad. Frame Rate: ≤25Hz. Spectral Response: 8~14μm. Focus: Fixed focus. Accuracy: ±2°C or ±2%, whichever is greater. Other features: Emissivity: 0.01~1.00 adjustable (0.95 default); Color Palettes: 5 (White hot, Black hot, Red hot, Ironbow, Rainbow); Display Modes: Thermal, Visible light image, Fused image; Digital Camera Resolution: 640×480; Temperature Alarm: Icon, LED flashlight, Audible alarm; Analysis Software: Yes; Power Source: Built-in Li-ion battery (3.6V 5000mAh); Battery Life: ≥6 hours.
| Analysis Software | Available |
|---|---|
| Gram | 490 g |
| Storage Capacity | En fazla 32GB Micro SD kart |
| Accuracy | ±2°C veya ±2% hangisi büyükse |
| Drop Resistance | 2 m |
| Display Size | 2.8” TFT LCD (320×240) |
| Emissivity | 0.01~1.00 ayarlanabilir (0.95 varsayılan) |
| Image and Video File Format | BMP |
| Display Modes | Termal, Görünür ışık görüntüsü, Birleştirilmiş görüntü |
| Field of View | 50°×38° |
| Power Source | Dahili Li-ion pil (3.6V 5000mAh) |
| IP Rating | IP65 |
| Frame Rate | ≤25Hz |
| Infrared Resolution | 120×90 |
| Focus | Sabit odak |
| Battery Life | ≥6 saat |
| Color Palettes | 5 (White sıcak, Black sıcak, Kırmızı sıcak, Demir renk skalası, Gökkuşağı) |
| Digital Camera Resolution | 640 × 480 |
| Spectral Response | 8~14μm |
| Temperature Alarm | Simge, LED el feneri, Sesli uyarı |
| Temperature Range | -20°C~400°C |
| Thermal Sensitivity (NETD) | ≤60mK |
| USB Interface | Type-C |
| Spatial Resolution (IFOV) | 7.3mrad |
| Product Dimensions | 236mm×75.5mm×86mm |
