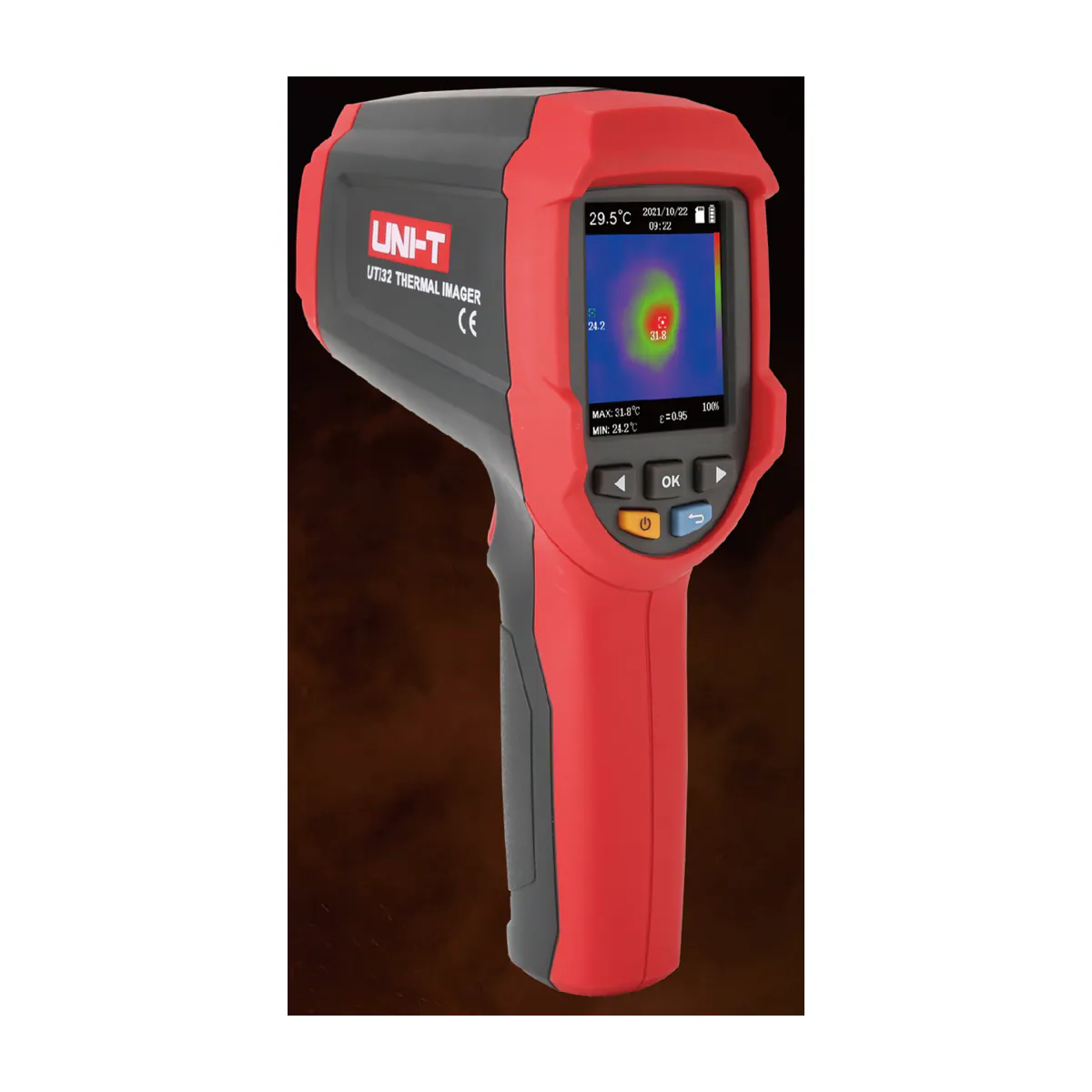

Unit UTi32 32 x 32 High-Temperature Thermal Imaging Camera, -20°C to 1000°C
- Brand: Unit
- SKU: UTI32
- MPN: UTi32
- Price: 13704.50 TRY + VAT · incl. VAT 16445.40 TRY
- Availability: Made to order
- Thermal Cameras
- Selection guide: Thermal Cameras Selection Guide: Technical Criteria & Application Standards
Unit UTi32 is a thermal imaging camera designed for high-temperature applications, with a -20°C to 1000°C range and 32 x 32 infrared resolution. Pixel size is 17 µm, thermal sensitivity ≤150 mK, frame rate ≤9 Hz and field of view 30° × 30°, with an accuracy of ±2°C or ±2%, whichever is greater. It has a 2.4 in IPS display, a 300,000-pixel visible-light camera, thermal, visible-light and blended image modes, an LCD-animation temperature alarm and LED lighting. The built-in Li-ion battery runs for at least 7 hours; images are saved as BMP to a 16 GB Micro SD card. It weighs 303 g.
| Infrared Resolution | 32 x 32 |
|---|---|
| Display Size | 2.4 inç IPS |
| Pixel Size | 17 µm |
| Frame Rate | ≤9 Hz |
| Thermal Sensitivity (NETD) | ≤150 mK |
| Focus | Sabit odak |
| Field of View | 30° (yatay) × 30° (dikey) |
| Temperature Range | -20°C ~ 1000°C |
| Accuracy | ±2°C veya ±%2, hangisi büyükse |
| Display Modes | Termal, görünür ışık, birleştirilmiş görüntü (Blending) |
| Temperature Alarm | LCD animasyonu |
| Temperature Tracking | Var (en yüksek / en düşük) |
| Digital Camera Resolution | 300.000 piksel |
| LED Lighting | Available |
| Power Source | Şarj edilebilir Li-ion pil |
| Battery Life | ≥7 saat |
| USB Interface | Type-C (yalnızca şarj) |
| Storage Capacity | 16 GB Micro SD kart |
| Image File Format | BMP |
| Certifications | CE, UKCA, FCC, RoHS |
| Languages | ZH, EN |
| Gram | 303 g |
| Product Dimensions | 205 × 124 × 65 mm |
| Standard Accessories | Type-C USB kablosu, SD kart, İngilizce kılavuz, belge indirme kılavuzu |
| Emissivity | 0.01 ~ 1.00 ayarlanabilir (varsayılan 0.95) |
| Temperature Resolution | 0.1°C |
