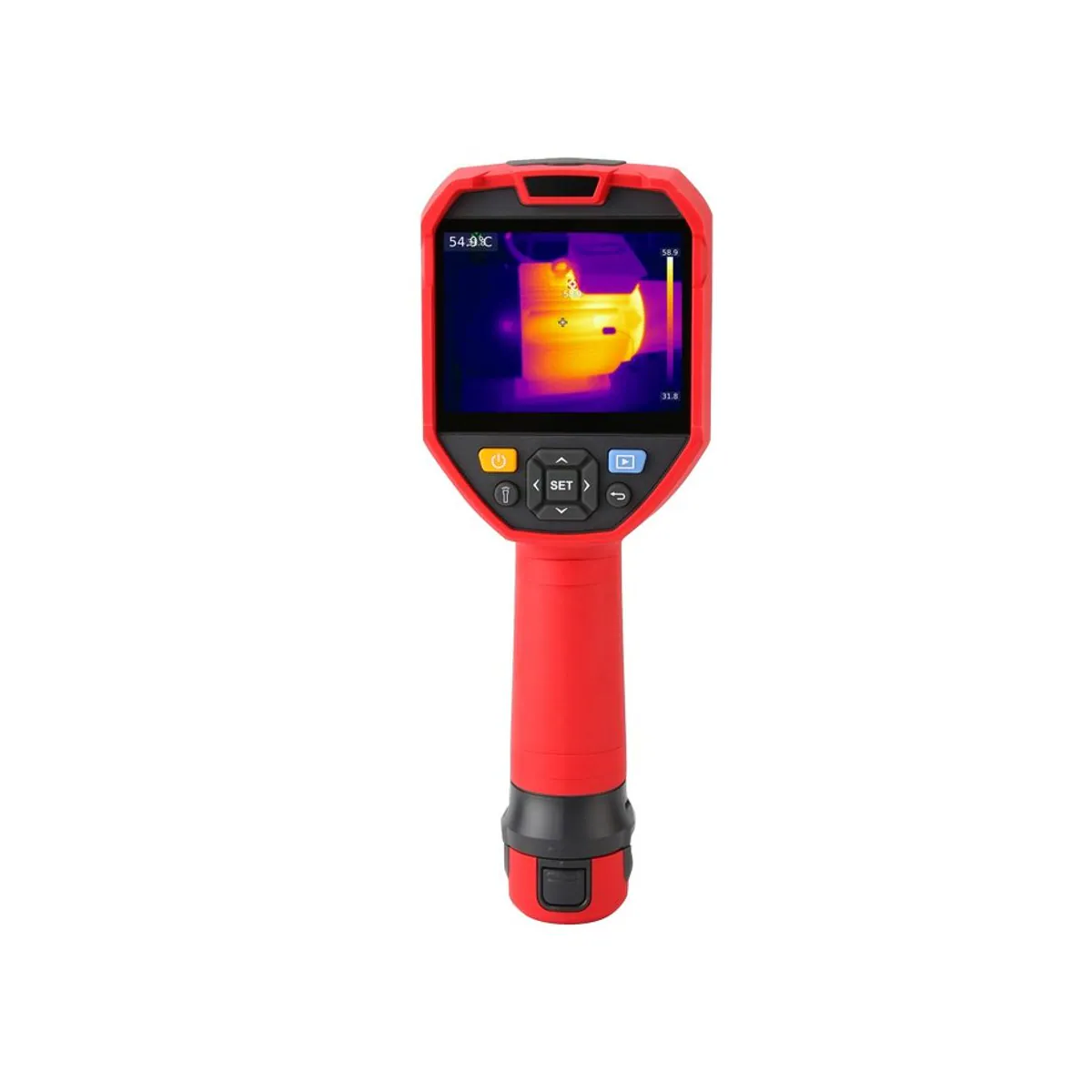

Unit UTi730E 320 x 240 Thermal Imaging Camera with 3.5 in IPS Display
- Brand: Unit
- SKU: UTI730E
- MPN: UTi730E
- Price: 39971.47 TRY + VAT · incl. VAT 47965.76 TRY
- Availability: Made to order
- Thermal Cameras
- Selection guide: Thermal Cameras Selection Guide: Technical Criteria & Application Standards
Unit UTi730E is an E-series thermal imaging camera with Wi-Fi and 320 x 240 infrared resolution. Its 3.5 in IPS display has 640 × 480 resolution, and the camera includes a 2 MP digital camera, 2x/4x digital zoom and LED lighting. Thermal sensitivity is ≤65 mK, frame rate ≤25 Hz, field of view 56° × 42° and temperature range -20°C to 550°C, with an accuracy of ±2°C or ±2%, whichever is greater. The lens is focus-free. Photos can be transferred over Wi-Fi and analysed in the PC and mobile software. The 5200 mAh detachable battery pack (UT-M17) runs for at least 3 hours; the camera is rated IP54 and 2 m drop proof. The optional UT-Z003 macro lens can be fitted.
| Infrared Resolution | 320 x 240 |
|---|---|
| Display Size | 3.5 inç IPS (640 × 480) |
| Pixel Size | 12 µm |
| Frame Rate | ≤25 Hz |
| Thermal Sensitivity (NETD) | ≤65 mK |
| Focus | Sabit odak |
| Field of View | 56° (yatay) × 42° (dikey) |
| Temperature Range | -20°C ~ 550°C |
| Accuracy | ±2°C veya ±%2, hangisi büyükse |
| Display Modes | Termal, görünür ışık, birleştirilmiş görüntü (Blending), PIP |
| On-Screen Analysis | 5 nokta / 1 çizgi / 3 dikdörtgen / 3 daire |
| Isotherm | Otomatik / Oran / Altında / Üstünde / Aralık / Manuel |
| Temperature Alarm | LCD animasyonu, LED el feneri |
| Temperature Tracking | Var (en yüksek / en düşük) |
| Digital Camera Resolution | 2 MP |
| Digital Zoom | 2x, 4x |
| Wi-Fi | Available |
| LED Lighting | Available |
| Analysis Software | PC + APP |
| Power Source | 5200 mAh çıkarılabilir Li-ion pil paketi (UT-M17) |
| Battery Life | ≥3 saat (Wi-Fi kapalıyken) |
| USB Interface | Type-C |
| Storage Capacity | Micro SD kart |
| Image File Format | Radyometrik JPEG |
| IP Rating | IP54 |
| Drop Resistance | 2 m |
| Certifications | CE, UKCA, FCC, RoHS |
| Languages | EN, FR, DE, ES, RU |
| Gram | 654 g |
| Product Dimensions | 260 × 97 × 99 mm |
| Standard Accessories | Type-C USB kablosu, Micro SD kart, Li-ion pil paketi, İngilizce kılavuz, belge indirme kılavuzu, alet çantası |
| Optional Accessories | UT-M17 Li-ion pil paketi, UT-Z003 makro lens |
| Color Palettes | White sıcak, Black sıcak, Kırmızı sıcak, Demir (Ironbow), Yüksek kontrastlı gökkuşağı, Gökkuşağı, Lav |
| Spatial Resolution (IFOV) | 3 mrad |
| Spectral Response | 8 ~ 14 µm |
