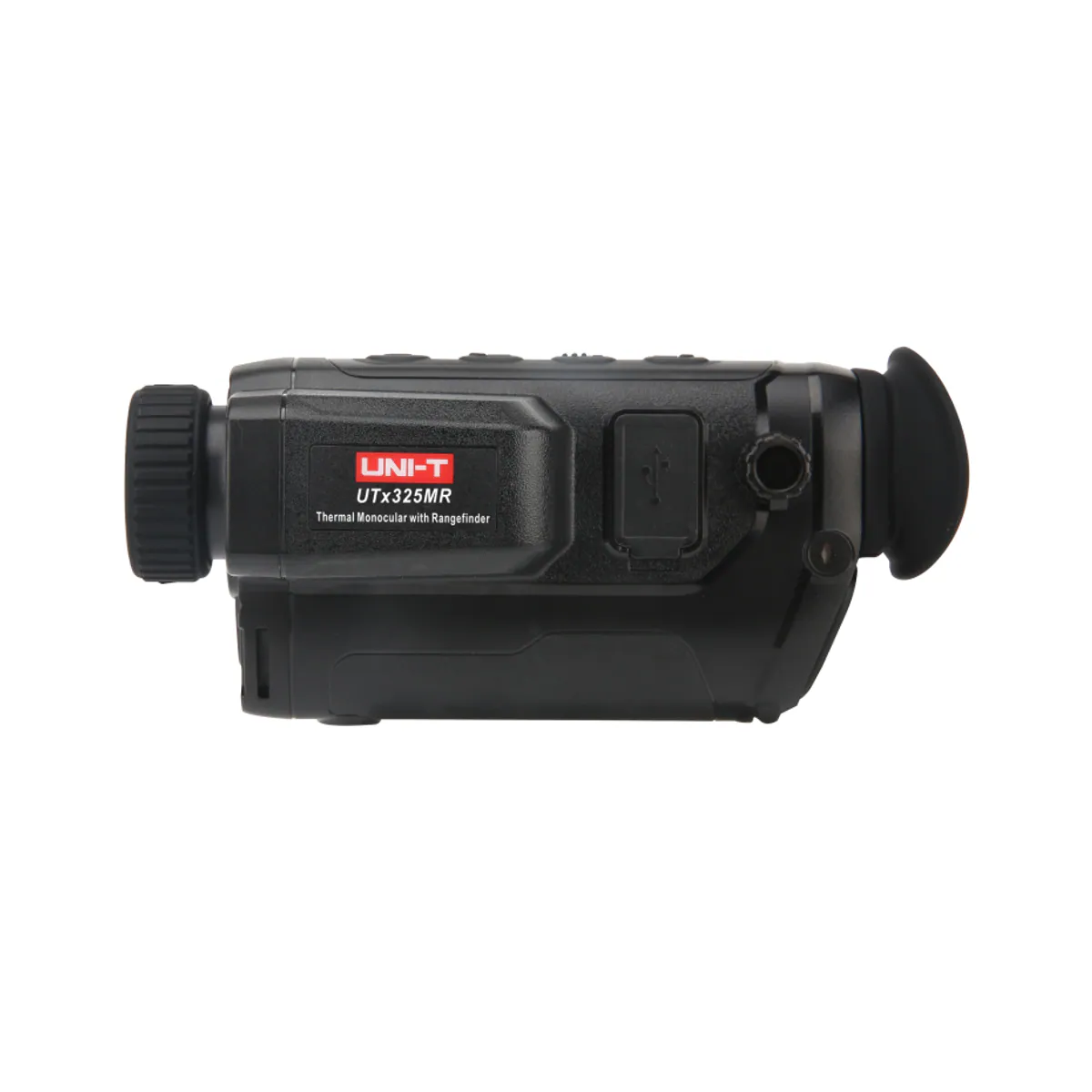

Unit UTx325MR 400 x 300 Thermal Monocular with 25 mm Lens and Laser Rangefinder
- Brand: Unit
- SKU: UTX325MR
- MPN: UTx325MR
- Price: 75374.77 TRY + VAT · incl. VAT 90449.72 TRY
- Availability: Made to order
- Thermal Cameras
- Selection guide: Thermal Cameras Selection Guide: Technical Criteria & Application Standards
Unit UTx325MR is the 25 mm thermal monocular of the MR series with a built-in laser rangefinder that measures up to 1000 m. It uses a 400 x 300 infrared detector and a 0.39 in OLED display (1024 × 768); the field of view is 10.5° × 7.9°, thermal sensitivity ≤25 mK and frame rate ≤50 Hz. Focus is manual and the diopter adjustment is -4D to +5D. The detection range is 417 m for a rabbit-sized target, 1318 m for a human and 3194 m for a vehicle. Scene modes, an electronic compass, PIP, video recording, Wi-Fi photo transfer and live streaming are included. The 3250 mAh detachable Li-ion battery (UT-M21) runs for at least 4 hours; a charging base, two batteries and a neck strap are supplied. The monocular is rated IP67 and 2 m drop proof and weighs 417 g including the battery.
| Display Size | 0.39 inç OLED (1024 × 768) |
|---|---|
| Infrared Resolution | 400 x 300 |
| Pixel Size | 12 µm |
| Frame Rate | ≤50 Hz |
| Thermal Sensitivity (NETD) | ≤25 mK |
| Focus | Manuel odak |
| Diopter Adjustment | -4D ~ +5D |
| Digital Zoom | 2x, 4x, 8x / 1.0x ~ 8x sürekli |
| Scene Modes | Kuş, Orman, Kaya |
| Calibration Modes | Otomatik, Manuel, Arka plan |
| Smart Standby | Available |
| Temperature Tracking | Var (sıcak iz) |
| Electronic Compass | Available |
| Picture-in-Picture (PIP) | Available |
| Video Recording | Available |
| Photo Viewing | Cihaz üzerinde, PC, APP |
| Wi-Fi Photo Transfer | Available |
| Wi-Fi Live Streaming | Available |
| Video Output | Type-C arayüz |
| Analysis Software | APP (Thermal Xplorer; Android ve iOS) |
| Battery Life | ≥4 saat (Wi-Fi kapalıyken) |
| USB Interface | Type-C |
| Storage Capacity | Dahili 16 GB |
| Image and Video File Format | PNG / MP4 |
| IP Rating | IP67 |
| Drop Resistance | 2 m |
| Languages | EN, FR, DE, ES, IT, RU, UA |
| Product Dimensions | 160 × 71.5 × 38.5 mm |
| Lens Focal Length | 25 mm |
| Field of View | 10.5° (yatay) × 7.9° (dikey) |
| Power Source | 3250 mAh çıkarılabilir Li-ion pil (UT-M21) |
| Certifications | CE, FCC, RoHS |
| Gram | 417 g (pil dahil) |
| Standard Accessories | Type-C USB kablosu, el askısı, boyun askısı, bez çanta, şarj tabanı, 2 adet şarj edilebilir Li-ion pil, hızlı başlangıç kılavuzu, alet kutusu |
| Detection Range | Tavşan (0.3 × 0.3 m): 417 m; Yaban domuzu (0.6 × 1.1 m): 1128 m; İnsan (1.8 × 0.5 m): 1318 m; Araç (2.3 × 2.3 m): 3194 m |
| Recognition Range | Tavşan (0.3 × 0.3 m): 104 m; Yaban domuzu (0.6 × 1.1 m): 282 m; İnsan (1.8 × 0.5 m): 329 m; Araç (2.3 × 2.3 m): 799 m |
| Identification Range | Tavşan (0.3 × 0.3 m): 52 m; Yaban domuzu (0.6 × 1.1 m): 141 m; İnsan (1.8 × 0.5 m): 165 m; Araç (2.3 × 2.3 m): 399 m |
| Laser Distance Measurement | Var, en fazla 1000 m |
| Spectral Response | 8 ~ 14 µm |
| Display Modes | Termal |
