Unit UTR2810E+ 100Hz-10kHz 0.1% Accuracy RS232/HANDLER Bench LCR Meter
- Brand: Unit
- SKU: UTR2810E+
- MPN: UTR2810E+
- Model: RS232, HANDLER
- Price: 21927.21 TRY + VAT · incl. VAT 26312.65 TRY
- Availability: Made to order
- LCR and Capacitance Meters
- Selection guide: Electronic Measuring Instruments Selection Guide

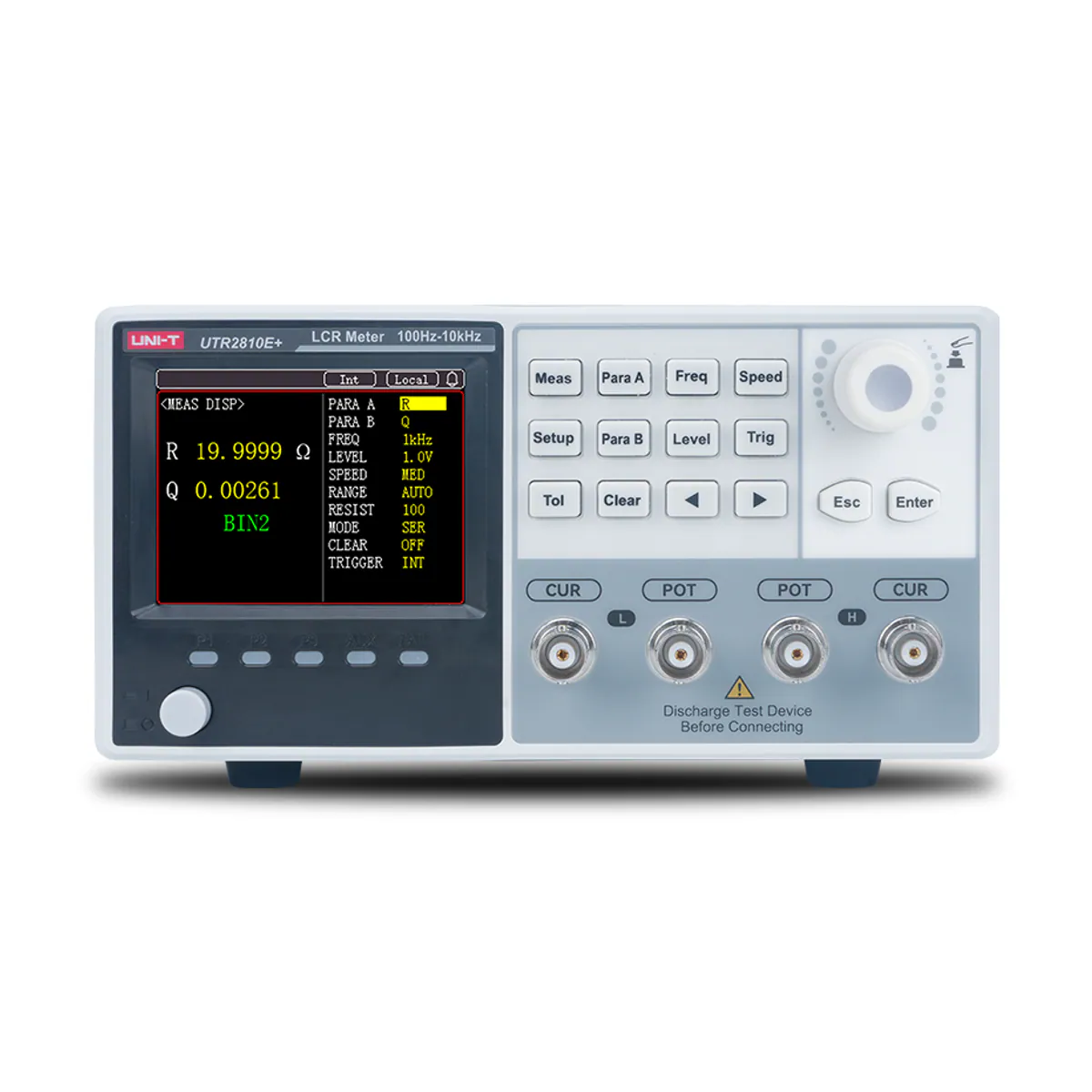

Unit UTR2810E+ is a bench digital LCR meter that measures at 100 Hz, 120 Hz, 1 kHz and 10 kHz test frequencies with 0.1% basic accuracy and has RS232 and HANDLER interfaces. Technical values: test frequencies 100 Hz, 120 Hz, 1 kHz, 10 kHz; basic accuracy 0.1%; test signal 0.1 / 0.3 / 1 V; source resistance 30 Ω / 100 Ω; measurement time 43 / 185 / 350 ms; 42 combinations of primary and secondary parameters; 4-bin sorting; RS232 and HANDLER interfaces; 2.8-inch TFT display; dimensions 267 × 174 × 88 mm, weight 2.15 kg. It supports external and bus triggering, passes the sorting signal to an automatic production line through the HANDLER interface and connects to a computer over RS232 for statistical analysis and SCPI remote control. It is used for production line quality assurance, incoming material inspection and automatic production.
| Interfaces | RS232, HANDLER |
|---|---|
| Display | 2.8 inç TFT LCD, 240 × 320 |
| Test Frequency | 100 Hz, 120 Hz, 1 kHz, 10 kHz (doğruluk %0.02) |
| Measurement Rate | Hızlı 43 ms; orta 185 ms; yavaş 350 ms (en fazla 33 ölçüm/s) |
| Accuracy | %0.1 (C, L, Z, R, D ve Q için ayrı bağıntılarla verilir) |
| Test Voltage | 0.1 V, 0.3 V, 1 V (ayar değerinin ±%10'u) |
| Output Impedance | 30 Ω / 100 Ω (±%5) |
| Measured Parameters | Ana: Cp, Cs, Lp, Ls, Z, R, G, Y; ikincil: D, Q, X, B, Rp, Rs, θr, θd; otomatik LCR; ana ve ikincil parametreler serbestçe eşleştirilebilir (42 kombinasyon) |
| Measuring Range | R, X, |Z|: 0.00001 Ω – 99.9999 MΩ; G, B, |Y|: 0.00001 µS – 999.999 S; L: 0.00001 µH – 9.99999 kH; C: 0.00001 pF – 999.999 mF; D: 0.00001 – 9.99999; Q: 0.00001 – 99999.9; θd: −179.999° – 179.999°; θr: −3.14159 – 3.14159 |
| Calibration | Açık devre, kısa devre |
| Equivalent Circuit | Seri, paralel |
| Range Selection | Tutma, otomatik |
| Trigger Mode | Dahili, manuel, harici, veri yolu |
| Relative Measurement | Doğrudan okuma, ΔABS, Δ% |
| Sequencing Function | Parametre A için 4 kademeli sıralama (BIN1 – BIN3, NG); parametre B için 2 kademeli sıralama (AUX, NG); ön panel LCD gösterimi |
| Additional Functions | Üst bilgisayarda istatistiksel analiz; SCPI protokolü |
| Supply Voltage | 110 V / 220 V AC, 50/60 Hz, 20–30 W |
| Product Dimensions | 267 × 174 × 88 mm (G × Y × D) |
| Gram | 2.15 kg |
| Standard Accessories | Kısa devre kartı (UTR-001), timsah klipsli Kelvin test kablosu (UTR-L10kE), 4 telli test kutusu (UTR-S100KE), RS232 haberleşme kablosu, güç kablosu, 2 adet sigorta (220 V için 0.25 A, 110 V için 0.5 A) |
