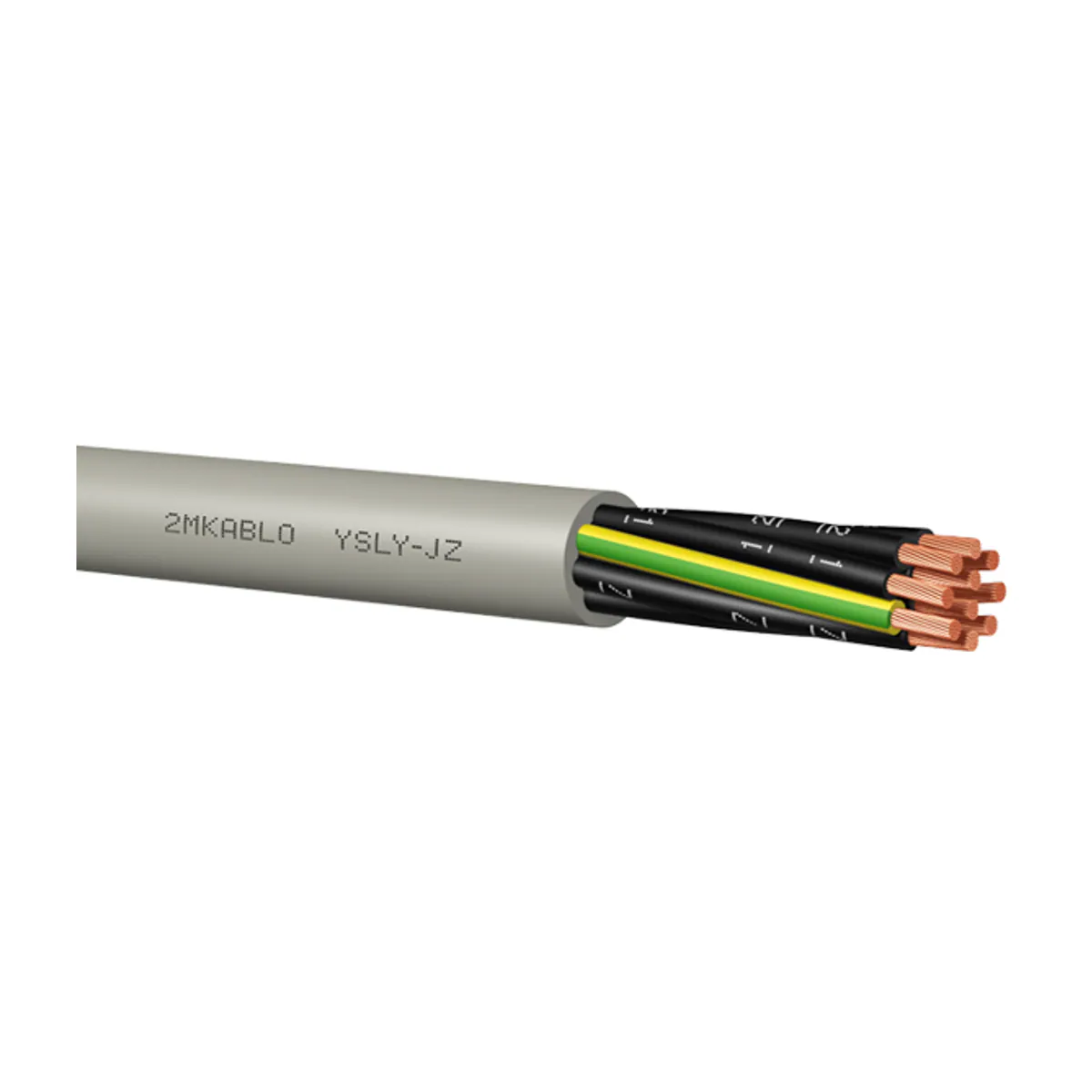

2M Kablo YSLY-JZ PVC 10x1.5 mm2 Gray
- Brand: 2M Kablo
- SKU: 3C00008209-1
- MPN: 3C00008209-1
- Price: 27809.00 TRY + VAT · incl. VAT 33370.80 TRY
- Availability: Made to order
- YSLY Control Cables
- 2M Kablo YSLY Control Cables
- Selection guide: YSLY Control Cables Selection Guide
- Calculate cable current-carrying capacity
- Calculate voltage drop
2M Kablo YSLY-JZ PVC 10x1.5 mm2 Gray is a product in the control cable product family of the 2M Kablo brand. Key technical features: Cable type: YSLY; Core cross-section: 10x1.5 mm2.
| Core Cross-Section | 10x1,5 mm² |
|---|---|
| Cable Type | YSLY |
| Conductor | Bükülü Tavlı Bakır (IEC/EN 60228, Class 5) |
| Insulation Material | PVC (EN 50290-2-21, TSE K 373) |
| Core Colour Code | Black (beyaz numaralı) 3 damardan itibaren Sarı-Yeşil izli topraklama damarı bulunmaktadır |
| Stranding | Damarlar birlikte bükülür |
| Outer Sheath Material | PVC (EN 50290-2-22, EN 50363-4-1) |
| Outer Sheath Colour | RAL 7001 - Grey |
| Standards | TSE K 373 |
| Test Voltage | 2500 V |
| Insulation Resistance | >200 MΩ·km |
| Operating Temperature | Fixed: -30 °C … +70 °C; Flexible: -5 °C … +70 °C |
| Flame Retardance / Fire Performance | Alev Geciktirme: IEC/EN 60332-1 |
| Minimum Bending Radius | Fixed: 8 x Kablo Çapı; Flexible: 15 x Kablo Çapı |
| Operating Voltage | 300 V / 500 V |
| Conductor Resistance | ≤ 13.3 Ω/km |
