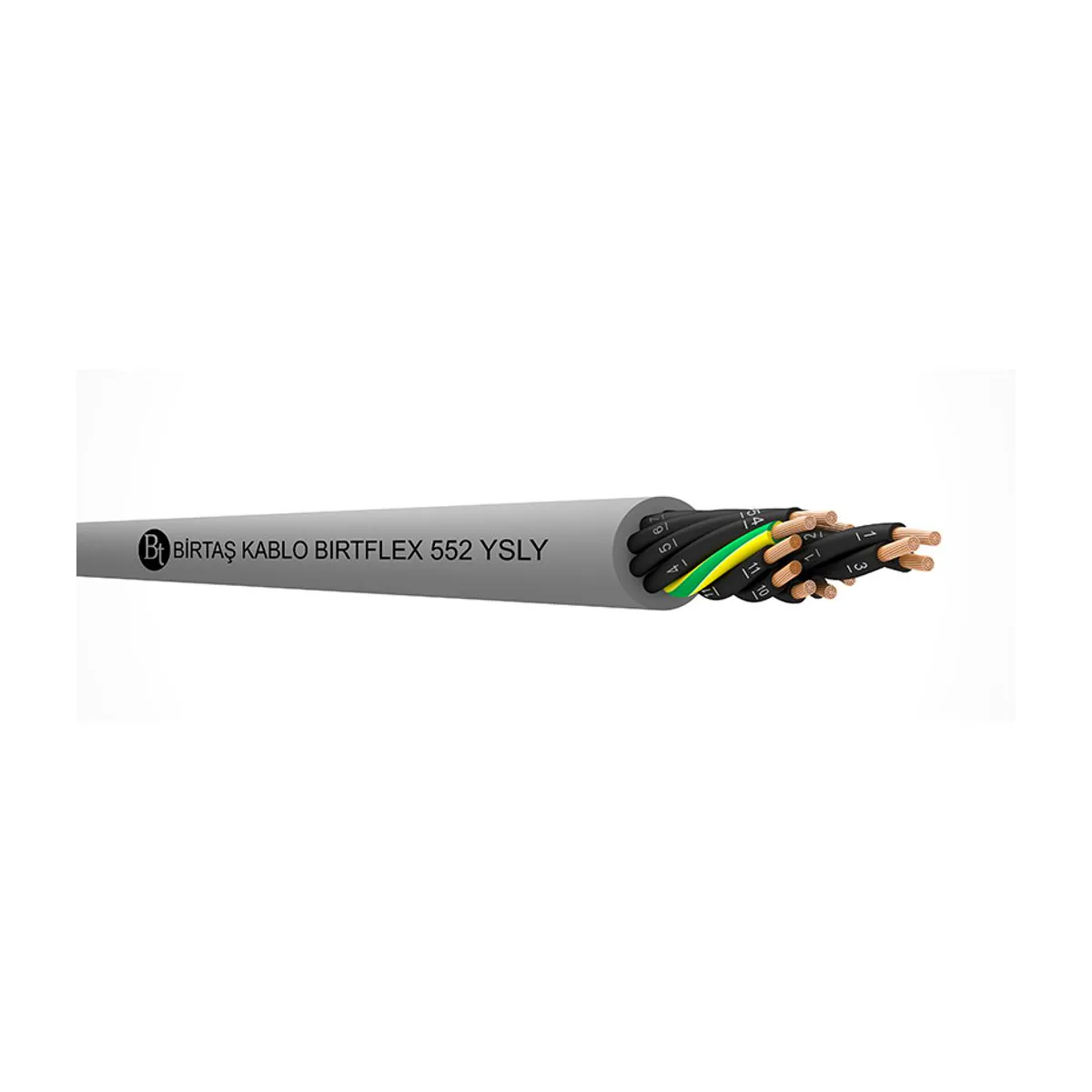

Birtaş BIRTFLEX 552 YSLY-JZ 16x1.5 mm2
- Brand: Birtaş Kablo
- SKU: 1001 08 016 001
- Price: 67629.60 TRY + VAT · incl. VAT 81155.52 TRY
- Availability: Made to order
- YSLY Control Cables
- Birtaş Kablo YSLY Control Cables
- Selection guide: YSLY Control Cables Selection Guide
- Calculate cable current-carrying capacity
- Calculate voltage drop
Birtaş BIRTFLEX 552 YSLY-JZ 16x1.5 mm2 is a product in the BIRTFLEX 552 YSLY control cable product family of the Birtaş Kablo brand. Key technical features: Cable type: BIRTFLEX 552; Core cross-section: 16x1.5 mm2.
| Core Cross-Section | 16x1,5 mm² |
|---|---|
| Cable Type | BIRTFLEX 552 |
| Conductor | Flexible bare copper conductors, EN 60228 Class 5 |
| Insulation Material | Special PVC compound, exceeding EN 50363-3 / TI2 |
| Core Colour Code | Black cores with white numbers acc. to EN 50334 and one yellow-green core (G) |
| Stranding | Cores stranded in layers with suitable lay length |
| Outer Sheath Material | PVC compound, EN 50363-4-1 / TM2 |
| Outer Sheath Colour | ~RAL 7001, Grey |
| Rated Voltage | Uo/U: 300/500 V |
| Test Voltage | 4000 V (AC 50 Hz) |
| Operating Temperature | Fixed: -40 °C … +80 °C; Flexible: -5 °C … +70 °C |
| Minimum Bending Radius | Fixed: 4 x D; Flexible: 10 x D |
| Conductor Resistance (20 °C) | EN 60228 acc. to Class 5 |
| Insulation Resistance | Min. 20 MΩ·km |
| Standards | EN 50525-1 & EN 50525-2-51 & TSE K 373 (design reference) |
| Flame Retardance / Fire Performance | EN 60332-1-2 & IEC 60332-1-2 |
| Outer Diameter | 13,90 mm (±%7) |
| Copper Weight | 205 kg/km |
