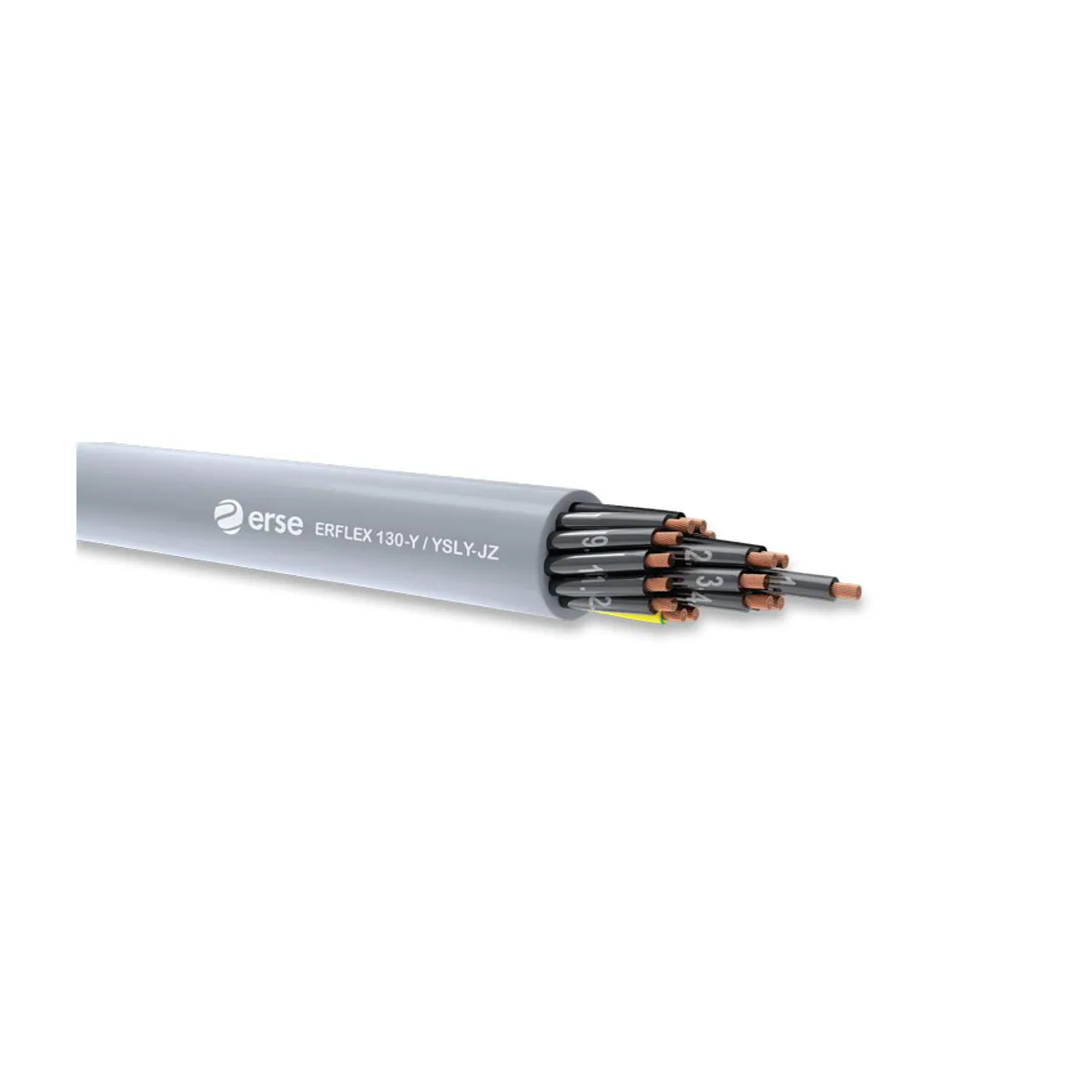

Erse ERFLEX 130-Y/YSLY 24x0.75 mm2 Cable
- Brand: Erse Kablo
- SKU: MDER000202400075G
- MPN: MDER000202400075G
- Price: 38923.00 TRY + VAT · incl. VAT 46707.60 TRY
- Availability: Made to order
- YSLY Control Cables
- Erse Kablo YSLY Control Cables
- Selection guide: YSLY Control Cables Selection Guide
- Calculate cable current-carrying capacity
- Calculate voltage drop
Erse ERFLEX 130-Y/YSLY 24x0.75 mm2 Cable is a product in the control cable product family of the Erse Kablo brand. Key technical features: Cable type: YSLY; Core cross-section: 24x0.75 mm2.
| Core Cross-Section | 24x0,75 mm² |
|---|---|
| Cable Type | YSLY |
| Conductor | IEC 60228; DIN EN 60228; EN 60228 Class 5 Bükülü Elektrolitik Tavlı Bakır |
| Insulation Material | EN 50363-3 PVC Kompaund |
| Core Colour Code | DIN VDE O293; TS EN 50334 veya Black yalıtkan, beyaz numara kodlu |
| Stranding | Uygun adımda katlar halinde |
| Outer Sheath Material | EN 50363-4-1 PVC Kompaund |
| Outer Sheath Colour | RAL 7001 Grey |
| Insulation Resistance | 20 MΩ·km |
| Operating Voltage | 300/500 V |
| Test Voltage | 2000 V |
| Minimum Bending Radius | 7,5x Kablo Ø |
| Operating Temperature | Fixed: -30 °C … +70 °C; Flexible: -5 °C … +70 °C |
| Flame Retardance / Fire Performance | IEC 60332-1-2; DIN EN 60332-1-2; EN 60332-1-2 |
| Conductor Resistance | 26 Ω/km |
| Current Carrying Capacity | 13 A |
| Outer Diameter | 14.5 mm |
| Copper Weight | 156 kg/km |
