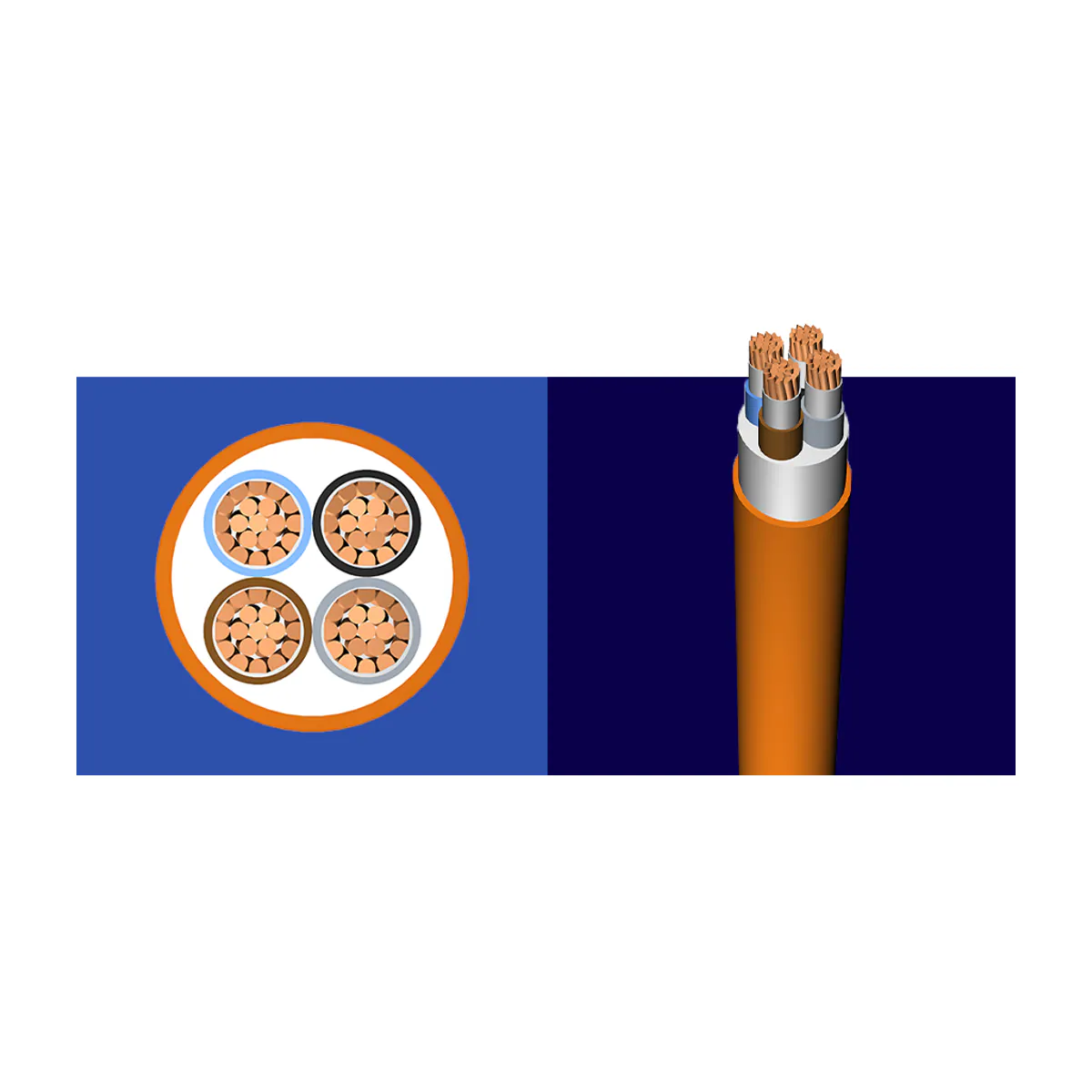

Hes N2XH FE180 3x70+35 mm2 Halogen-Free Cable
- Brand: HES Kablo
- SKU: HESWB0484
- Price: 218664.00 TRY + VAT · incl. VAT 262396.80 TRY
- Availability: In stock
- N2XH FE180 Cables
- HES Kablo N2XH FE180 Cables
- Selection guide: N2XH FE180 (E90) Fire-Resistant Power Cables Selection Guide
- Calculate cable current-carrying capacity
- Calculate voltage drop
Hes N2XH FE180 3x70+35 mm2 Halogen-Free Cable is a product of the HES Kablo brand in the fire-resistant cable product family.
| Conductor | Çok telli bakır iletken |
|---|---|
| Flame Barrier | Mika bant |
| Insulation Material | XLPE |
| Outer Sheath Material | HFFR |
| Rated Voltage | 0,6/1 kV |
| Operating Temperature | Maksimum iletken sıcaklığı: 90 °C |
| Short-Circuit Temperature | 250 °C (max. 5 sn.) |
| Minimum Bending Radius | 12 x D |
| Standards | TS IEC 60502-1 |
| Flame Retardance / Fire Performance | Halojensiz, yangına dayanıklı; yangın esnasında en az 180 dakika boyunca devre bütünlüğünü korur (FE 180) |
| Filler | Termoplastik dolgu |
| Conductor Resistance (20 °C) | Max. 0,268 Ω/km (DC) |
| Outer Diameter | Yaklaşık 35,0 mm |
| Current Carrying Capacity | Toprakta (20 °C): 252 A; Havada (30 °C): 247 A |
