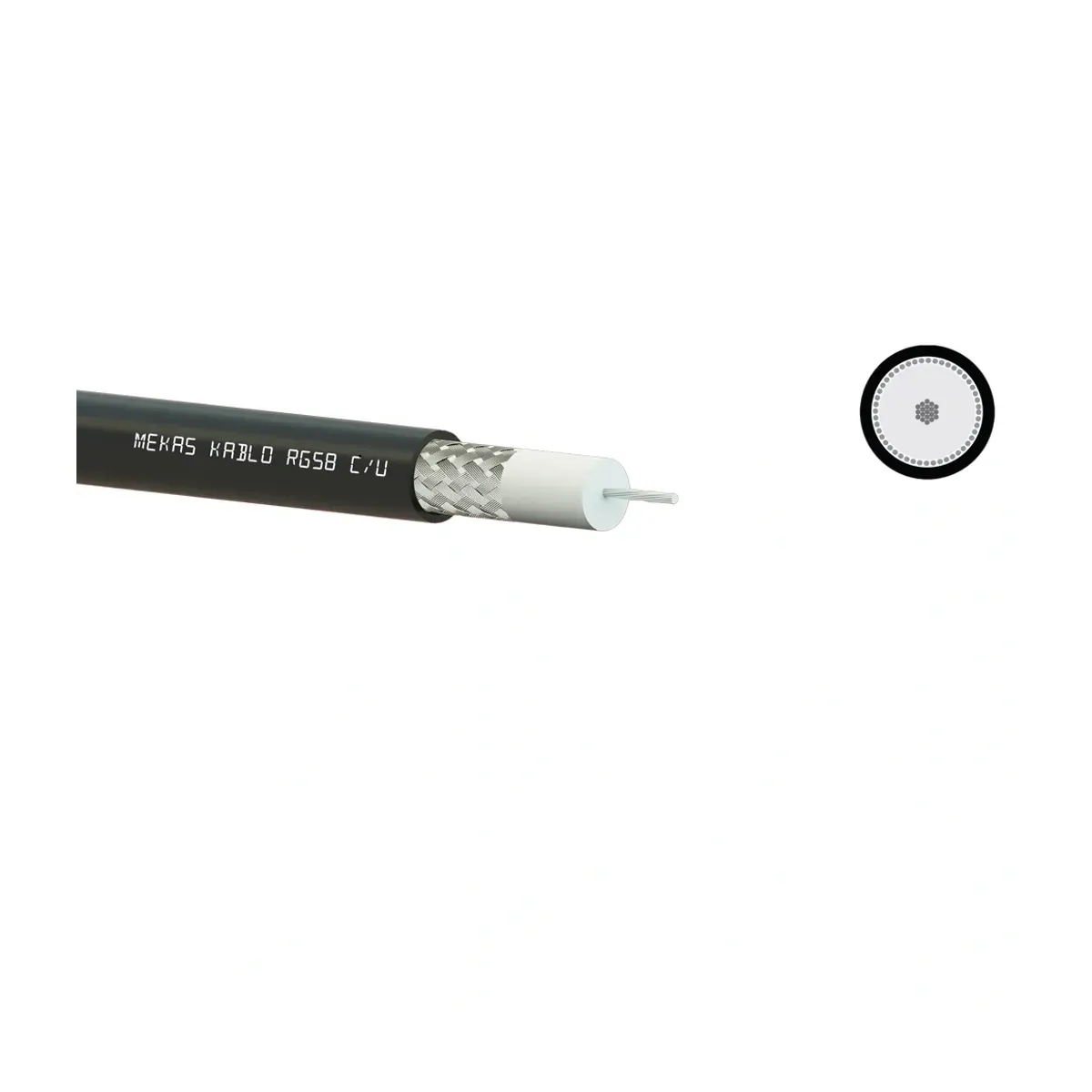

Mekas 50 Ohm Halogen Free Coaxial RG58 C/U Cable
- Brand: Mekas Kablo
- SKU: 50785
- MPN: 50785
- Availability: Out of stock
- 50 Ohm Coaxial Cables
- Selection guide: Coaxial Cables Selection Guide
- Calculate cable current-carrying capacity
- Calculate voltage drop
Mekas 50 Ohm Halogen Free Coaxial RG58 C/U Cable. 50 OHM Coaxial Cables are used in panel control, intercom, coaxial and silicone heating lines. The product is sold per meter. Stock code: 50785.
| Conductor | Kalaylı bükülü bakır tel, 19×0,18mm (AWG20) Class 5, IEC 60228 |
|---|---|
| Insulation Material | LDPE, Ø 2,95mm 70°C |
| Capacitance | 101 ± 2 pF/m |
| Impedance | 50 ± 3 Ω |
| Velocity of Propagation | %66 ± 2 |
| Insulation Resistance | 2 GΩ·km |
| Operating Temperature | -30 °C … +70 °C |
| Minimum Bending Radius | 10 x D |
| Attenuation (20 °C, max.) | 1 MHz: 1,33 dB/100m; 10 MHz: 4,41 dB/100m; 50 MHz: 10,69 dB/100m; 100 MHz: 16,00 dB/100m; 200 MHz: 24,38 dB/100m; 400 MHz: 38,00 dB/100m; 700 MHz: 55,39 dB/100m; 900 MHz: 66,00 dB/100m; 1000 MHz: 71,11 dB/100m |
| Standards | EN 50117-2-4 |
| Flame Retardance / Fire Performance | EN 60332-1-2; EN 60754-1/2; EN 61034-2 |
| Cable Shield | Kalaylı veya kırmızı bakır tel örgü, %95 kapama |
