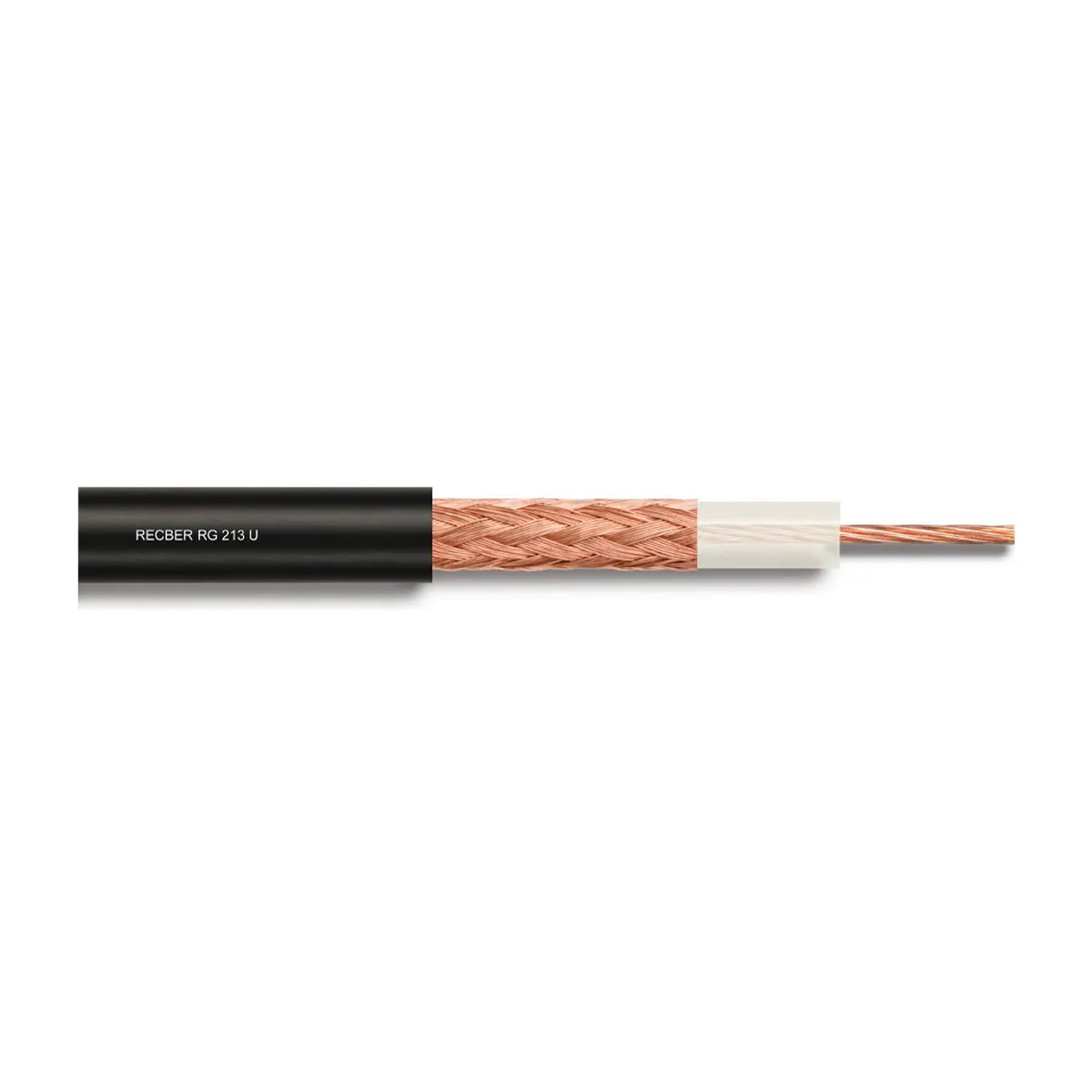

Reçber RG 213 U HF Cable
- Brand: Reçber Kablo
- SKU: 305067
- MPN: 305067
- Price: 15198.00 TRY + VAT · incl. VAT 18237.60 TRY
- Availability: In stock
- 50 Ohm Coaxial Cables
- Selection guide: Coaxial Cables Selection Guide
- Calculate cable current-carrying capacity
- Calculate voltage drop
Reçber RG 213 U HF Cable is a product in the Reçber Kablo brand's coaxial cable product family.
| Conductor | Bükülü elektrolitik bakır tel, 7x0,75mm |
|---|---|
| Insulation Material | LDPE, Ø 7,25mm (70°C, EN 50290-2-23) |
| Cable Shield | Elektrolitik bakır tel örgü, %95 kapama |
| Outer Sheath Material | HFFR (70°C, EN 50290-2-27) |
| Outer Sheath Colour | Black (RAL 9011) |
| Operating Voltage | Max. 5000 V |
| Test Voltage | 10000 V |
| Operating Temperature | -30 °C … +70 °C |
| Minimum Bending Radius | 10 x D |
| Insulation Resistance | Min. 2 GΩ·km |
| Standards | MIL-C-17F, MIL-C-17G |
| Flame Retardance / Fire Performance | Düşey alev yayılma: EN 60332-1-2; Korozif gaz: EN 60754-1/2; Duman yoğunluğu: EN 61034-2 |
| Outer Diameter | 10.3 mm |
| Copper Weight | 70 kg/km |
| Impedance | 50 ± 3 Ω |
| Capacitance | 101 ± 2 pF/m |
| Velocity of Propagation | %66 ± 2 |
| Attenuation (20 °C, max.) | 1 MHz: 0,81 dB/100m; 10 MHz: 2,09 dB/100m; 50 MHz: 4,64 dB/100m; 100 MHz: 6,75 dB/100m; 200 MHz: 10,03 dB/100m; 400 MHz: 15,25 dB/100m; 700 MHz: 21,80 dB/100m; 900 MHz: 25,75 dB/100m; 1000 MHz: 27,64 dB/100m |
