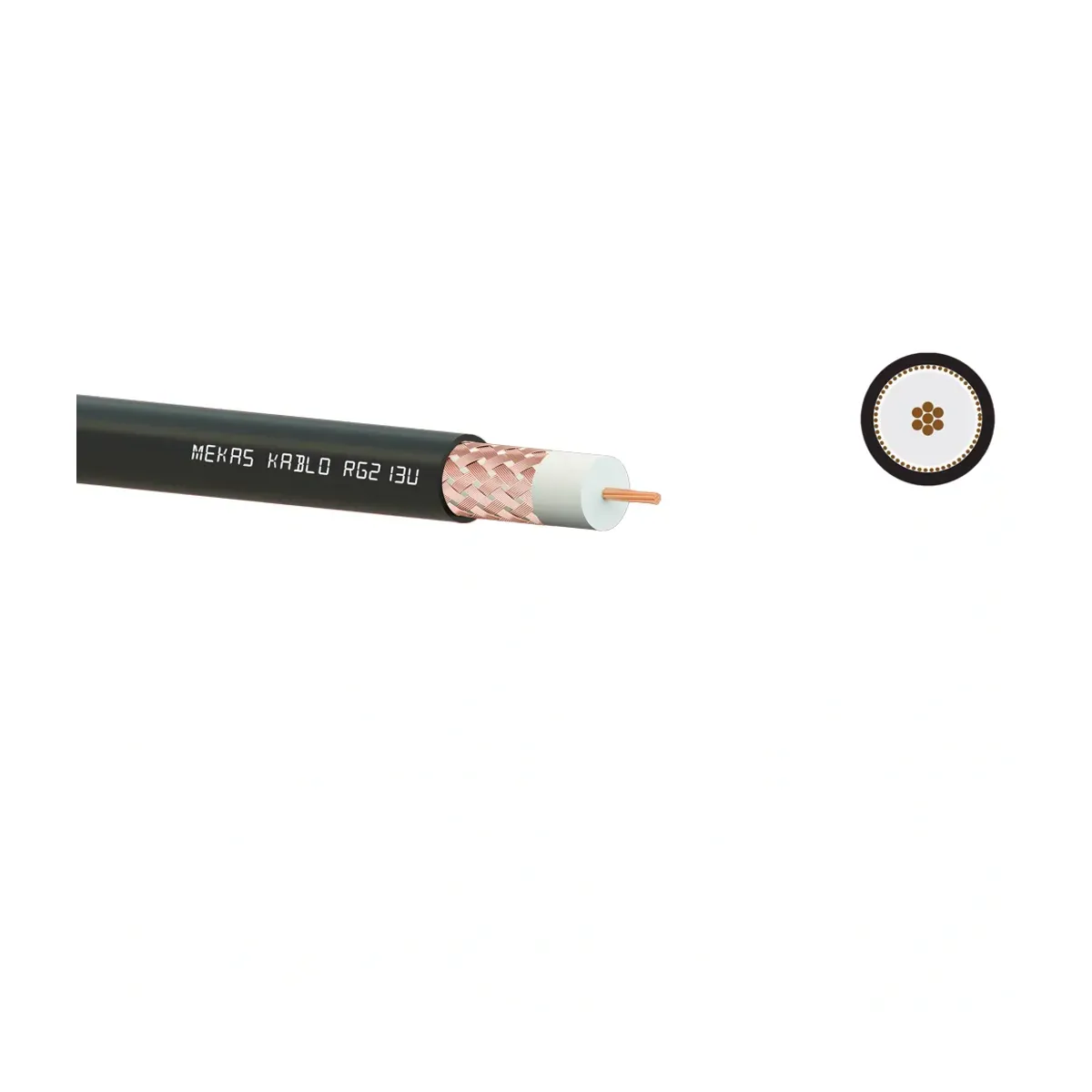

Mekas 50 Ohm PVC Coaxial RG213 U Cable
- Brand: Mekas Kablo
- SKU: 50740
- MPN: 50740
- Price: 5499.35 TRY + VAT · incl. VAT 6599.22 TRY
- Availability: In stock
- 50 Ohm Coaxial Cables
- Selection guide: Coaxial Cables Selection Guide
- Calculate cable current-carrying capacity
- Calculate voltage drop
Mekas 50 Ohm PVC Coaxial RG213 U Cable. 50 OHM Coaxial Cables are used in panel control, intercom, coaxial and silicone heating lines. Technical data: Core Cross-Section 50 Ohm, Cable Type RG213 U. The product is sold per meter; the minimum order is 50 meters. Stock code: 50740.
| Cable Type | RG213 U |
|---|---|
| Conductor | Bükülü elektrolitik bakır tel, 7×0,75mm (AWG13) Class 2, IEC 60228 |
| Insulation Material | LDPE, Ø 7,25mm 70°C |
| Outer Sheath Material | PVC, TM51 70°C, EN 50290-2-22 |
| Outer Sheath Colour | RAL 9011 Black |
| Outer Diameter | 10.3 mm |
| Capacitance | 101 ± 2 pF/m |
| Impedance | 50 ± 3 Ω |
| Velocity of Propagation | %66 ± 2 |
| Insulation Resistance | 2 GΩ·km |
| Operating Temperature | -30 °C … +70 °C |
| Minimum Bending Radius | 10 x D |
| Attenuation (20 °C, max.) | 1 MHz: 0,81 dB/100m; 10 MHz: 2,09 dB/100m; 50 MHz: 4,64 dB/100m; 100 MHz: 6,75 dB/100m; 200 MHz: 10,03 dB/100m; 400 MHz: 15,25 dB/100m; 700 MHz: 21,80 dB/100m; 900 MHz: 25,75 dB/100m; 1000 MHz: 27,64 dB/100m |
| Standards | EN 50117-2-4 |
| Flame Retardance / Fire Performance | EN 60332-1-2 |
| Cable Shield | Elektrolitik bakır tel örgü, %95 kapama |
