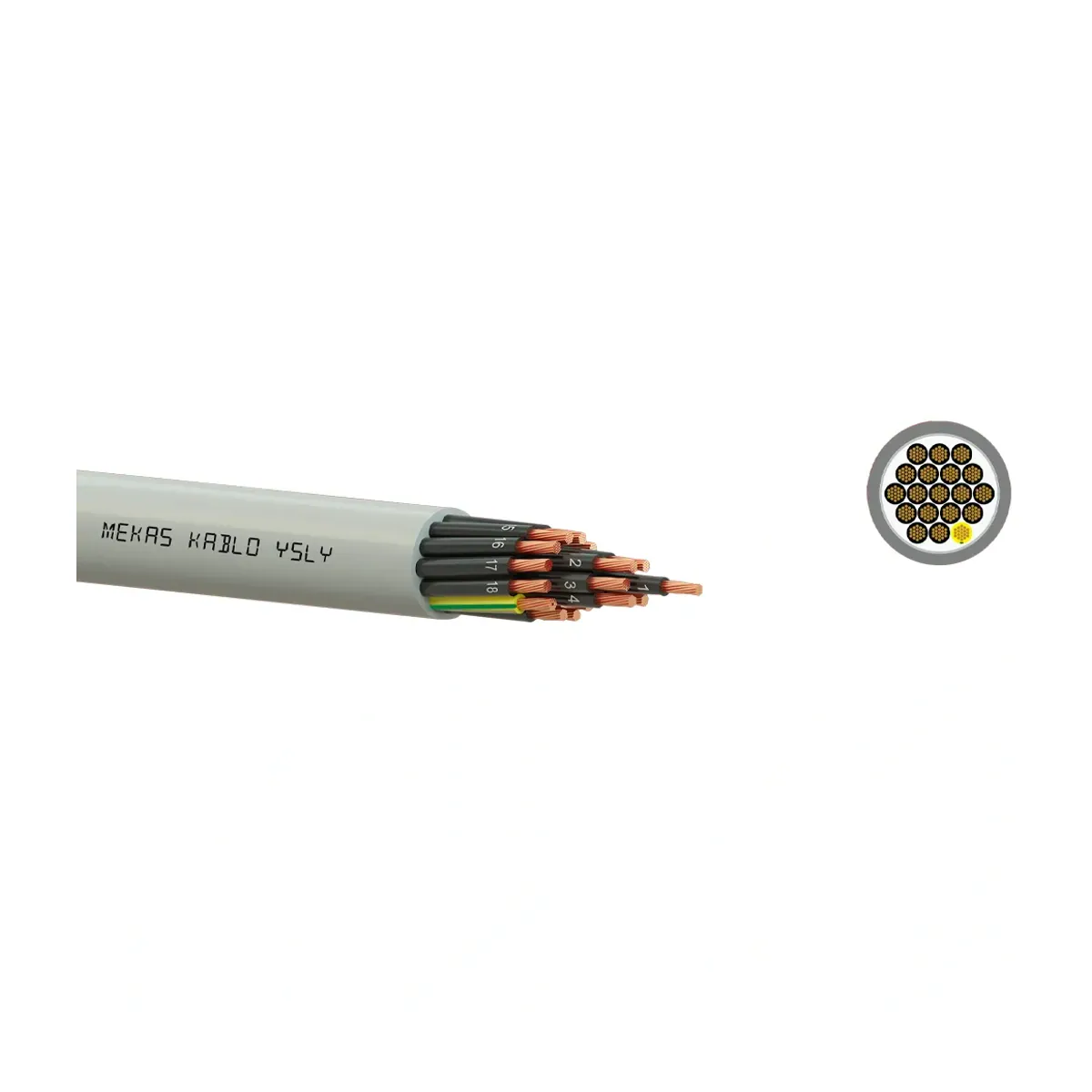

Mekas 8x0.75 mm2 YSLY-JZ Control Cable
- Brand: Mekas Kablo
- SKU: 87158
- MPN: 87158
- Price: 3180.80 TRY + VAT · incl. VAT 3816.96 TRY
- Availability: In stock
- YSLY Control Cables
- Mekas Kablo YSLY Control Cables
- Selection guide: YSLY Control Cables Selection Guide
- Calculate cable current-carrying capacity
- Calculate voltage drop
Mekas 8x0.75 mm2 YSLY-JZ Control Cable. Control cables are multi-core cables that carry signals in machine and panel control circuits; the YSLY-JZ type is common. Technical data: Core Cross-Section 8x0.75mm2, Cable Type YSLY-JZ. The product is sold per meter; the minimum order is 50 meters. Stock code: 87158.
| Core Cross-Section | 8x0,75 mm² |
|---|---|
| Cable Type | YSLY-JZ |
| Conductor | Flexible bare copper conductors, EN 60228 Class 5 |
| Insulation Material | Special PVC compound, exceeding EN 50363-3 / TI2 |
| Core Colour Code | Black cores with white numbers acc. to EN 50334 and one yellow-green core (G) |
| Stranding | Cores stranded in layers with suitable lay length |
| Separator Tape | Talk Pudralı |
| Outer Sheath Material | PVC compound |
| Outer Sheath Colour | RAL 7001, Grey |
| Standards | EN 50525-1 & EN 50525-2-51 & TSE K 373 (design reference) |
| Operating Temperature | Fixed: -40 °C … +80 °C; Flexible: -5 °C … +70 °C |
| Minimum Bending Radius | Fixed: 4 x D; Flexible: 10 x D |
| Rated Voltage | Uo/U: 300/500 V |
| Insulation Resistance | Min. 20 MΩ·km |
| Test Voltage | 3000 V (AC 50 Hz) |
| Flame Retardance / Fire Performance | EN 60332-1-2 & IEC 60332-1-2 |
| Outer Diameter | 8,90 mm (±%5) |
