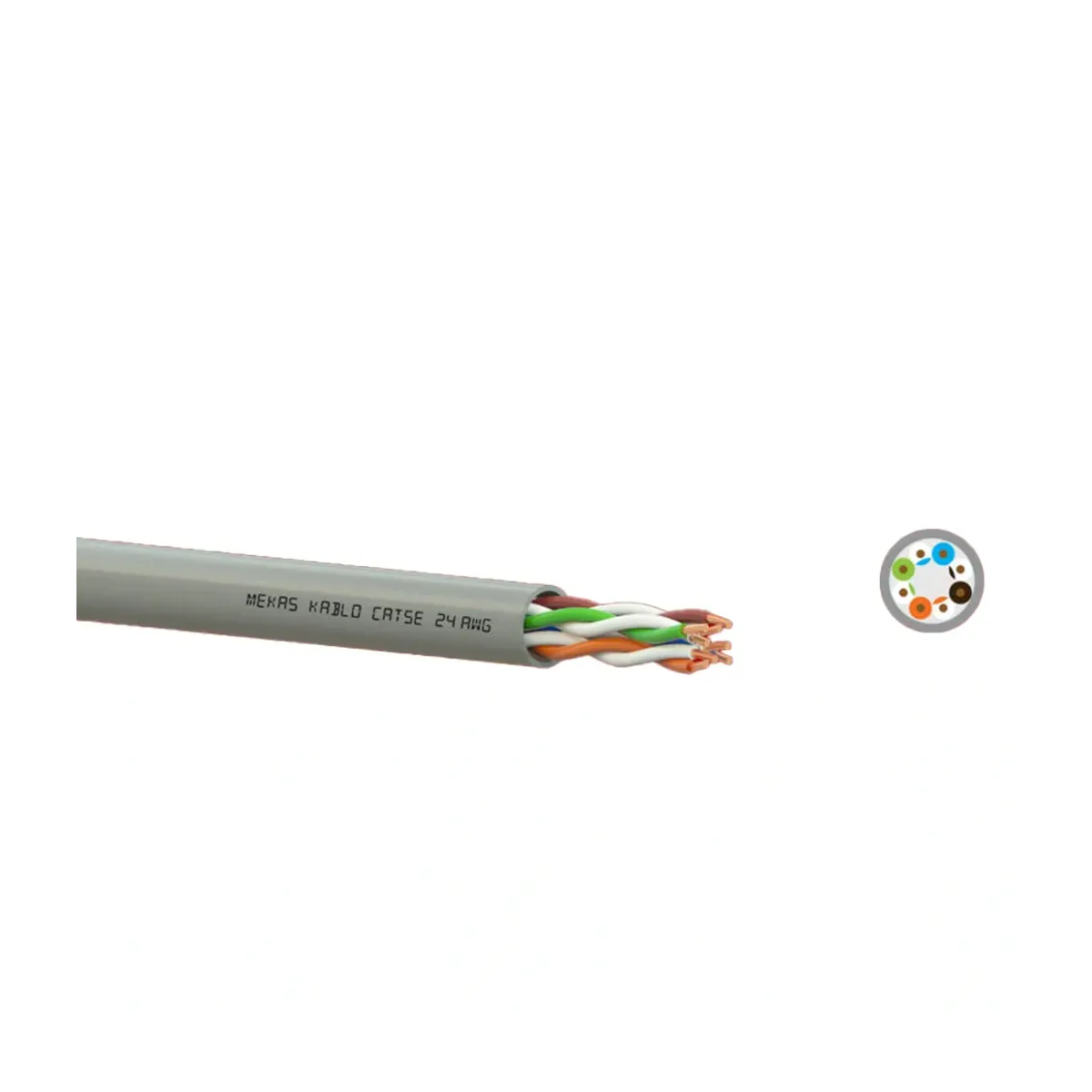

Mekas CAT5e U/UTP PE Ethernet LAN Data Cable 4x2x24 AWG
- Brand: Mekas Kablo
- SKU: 11441
- MPN: 11441
- Price: 1087.35 TRY + VAT · incl. VAT 1304.82 TRY
- Availability: In stock
- CAT5e Cables
- Selection guide: CAT5e Cables Selection Guide: Technical Criteria & Application Standards
- Calculate cable current-carrying capacity
- Calculate voltage drop
Mekas CAT5e UTP Ethernet LAN Data Cable 4x2x24 AWG. CAT5e Cables are preferred for short office runs, IP cameras and simple industrial Ethernet endpoints. Technical data: Cable Length Type Reel Type (Not Ready-Made), Core Cross-Section 4x2x24 AWG, Cable Type UTP. The product is sold per meter; the minimum order is 50 meters. Stock code: 11441.
| Cable Length Type | Makara Tipi (Hazır Olmayan) |
|---|---|
| Core Cross-Section | 4x2x24 AWG |
| Cable Type | UTP |
| Conductor | Mono Tavlı Bakır Tel, 24 AWG |
| Insulation Material | HDPE |
| Core Colour Code | TIA 568 izole renk kodlamasına uygun |
| Conductor Resistance | 110 Ω/km |
| Test Voltage | 1000 V |
| Minimum Bending Radius | 8 x D |
| Insulation Resistance | >5000 MΩ / km |
| Capacitance | Max. 52 pF/m (efektif kapasitans) |
| Operating Temperature | -20 °C … +60 °C |
| Velocity of Propagation | 68% |
| Standards | IEC 61156-5 |
| Outer Sheath Material | PE |
| Outer Sheath Colour | Black |
