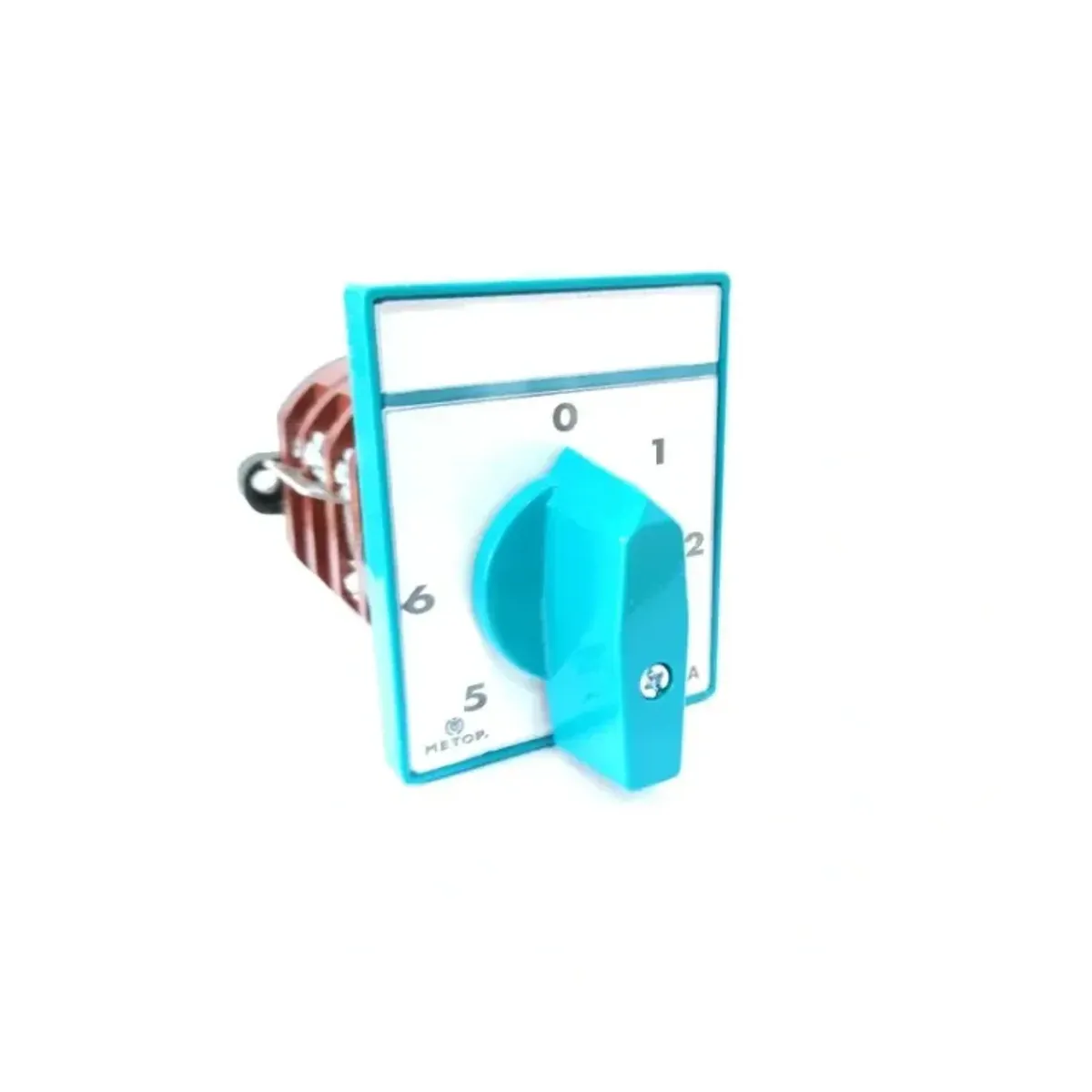

Metop 125A Single-Phase 6-Step Mains Switch.
- Brand: Metop
- SKU: MT064 - 125A
- Price: 3167.36 TRY + VAT · incl. VAT 3800.83 TRY
- Availability: Made to order
- Mains Step Switches
- Selection guide: Mains Step Switches Selection Guide: Technical Criteria and Engineering Practice
Metop 125A Single-Phase 6-Step Mains Switch. Mains Step Switches are used for transformer tap, heater, fan speed and welding machine selections. Technical values: Current 125A, Phase Type 1-Phase, Cam Switch Step Count 6, With Mains. Stock code: MT064 - 125A.
| Current | 125 A |
|---|---|
| Number of Poles | 1P |
| Cam Switch Position Count | 6 Kademe Şebekeli |
| Rated Insulation Voltage (Ui) | 660 V |
| Ambient Temperature | -25... +50 °C |
| Front Panel Protection Rating | IP55 |
| Standards | EN 60947-3, VDE0660, TS EN 60947-3 |
| Switch Positions | 0-1-2-3-4-5-6 |
| Housing Size | M4 |
| Length (L) | 198 mm |
| Front Plate Size (A x B) | 85 x 104 mm |
| Nominal Thermal Current (Ith) | 160 A |
| Terminal Bolt Size | M8 |
| Conductor Cross-Section | 25/35 mm² (AWG 6) |
| Fuse Current | 160 A (Ieff 10 kA); 160 A (Ieff 40 kA) |
