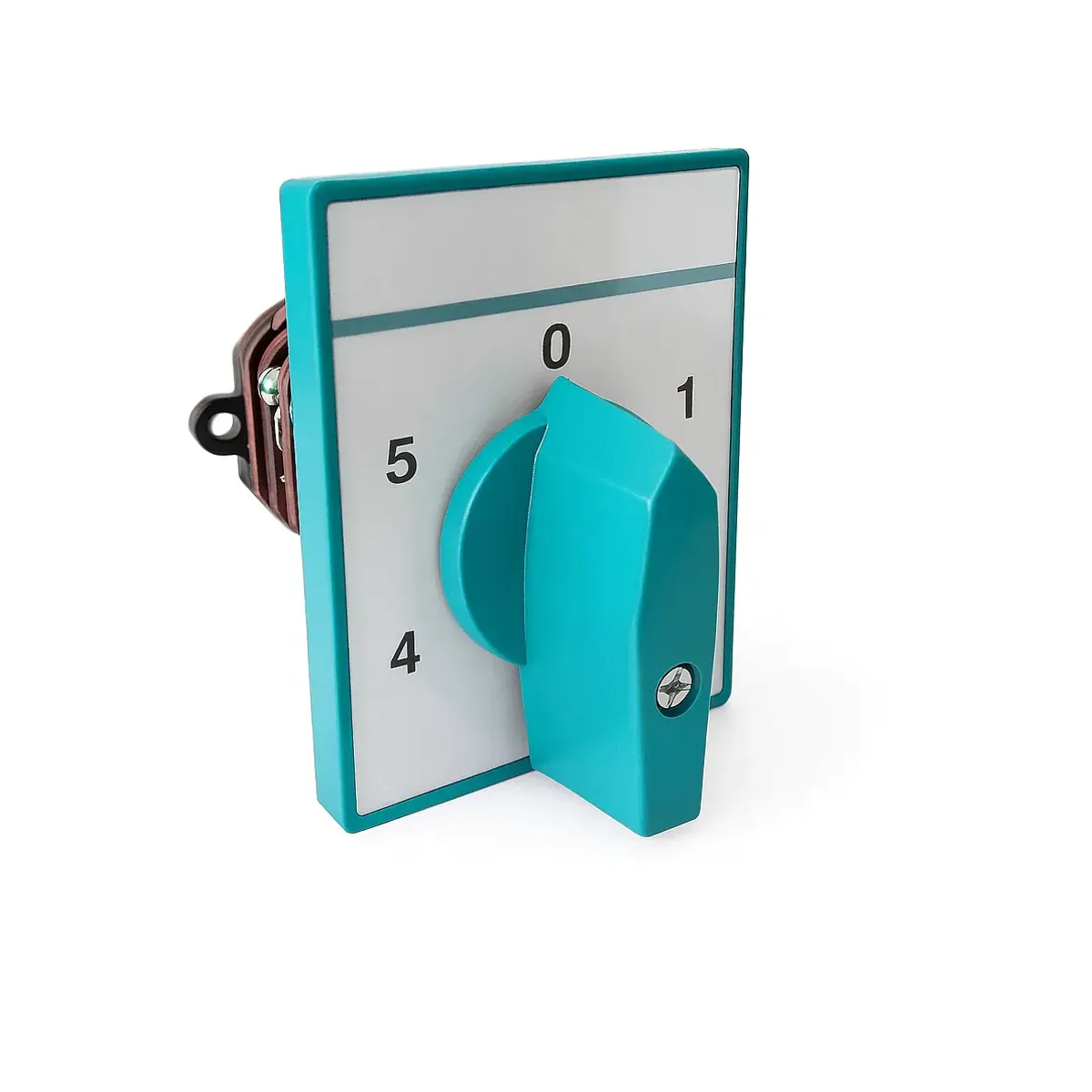

Metop 16A Single-Phase 5-Step Mains Switch.
- Brand: Metop
- SKU: MT036 - 16A
- Price: 526.96 TRY + VAT · incl. VAT 632.35 TRY
- Availability: Made to order
- Mains Step Switches
- Selection guide: Mains Step Switches Selection Guide: Technical Criteria and Engineering Practice
Metop 16A Single-Phase 5-Step Mains Switch. Mains Step Switches are used for transformer tap, heater, fan speed and welding machine selections. Technical values: Current 16A, Phase Type 1-Phase, Cam Switch Step Count 5, With Mains. Stock code: MT036 - 16A.
| Current | 16 A |
|---|---|
| Number of Poles | 1P |
| Cam Switch Position Count | 5 Kademe Şebekeli |
| Rated Insulation Voltage (Ui) | 660 V |
| Ambient Temperature | -25... +50 °C |
| Front Panel Protection Rating | IP55 |
| Standards | EN 60947-3, VDE0660, TS EN 60947-3 |
| Switch Positions | 0-1-2-3-4-5 |
| Housing Size | M2 |
| Front Plate Size (A x B) | 61.8 x 76.7 mm |
| Housing Diameter | Ø54.3 mm |
| Nominal Thermal Current (Ith) | 20 A |
| AC-3 / AC-23 Power (Single-Phase Motors) | 110 V~: 1.2 kW; 220 V~: 2 kW; 380 V~: 3.2 kW (30 on-off/h) |
| Terminal Bolt Size | M4 |
| Conductor Cross-Section | 1.5/2.5 mm² (AWG 18) |
| Length (L) | 82.8 mm |
| Nominal Breaking Capacity (10 Ie x 1.1 Ue) | 110 V~: 20000 VA; 220 V~: 40000 VA; 380 V~: 50000 VA; 660 V~: 51000 VA |
| Fuse Current | 50 A (Ieff 10 kA); 50 A (Ieff 40 kA) |
